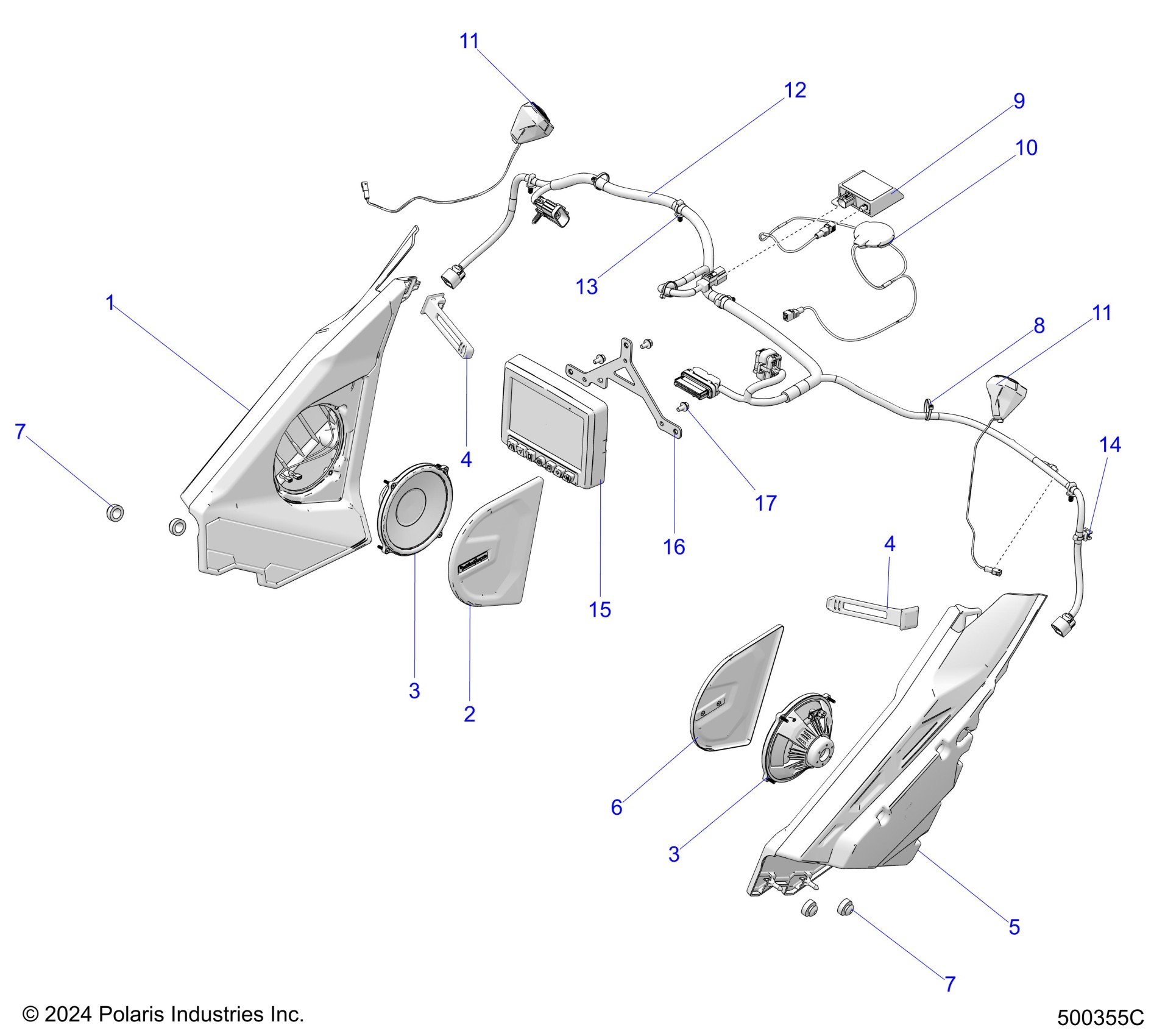

Polaris SLINGSHOT ROUSH EDITION (R01) - T24AALHB/GB ELECTRICAL, INFOTAINMENT - T24AALHB/GB (500355C) Diagram

#

Description
Price

1

SPEAKER-ASM,WFR,RF,2OHM,LH [INCLUDES 2-4]

2417507

Unavailable

2

ASM-GRILL,SPKR,LH

2415787

Unavailable

3

ASM-SPEAKER,WOOFER,ULT LE

2416041

Unavailable

3

ASM-SPEAKER,WOOFER,ULT LE

2416041

Unavailable

4

STRAP-MOUNTING,SPKR

5417508

Unavailable

4

STRAP-MOUNTING,SPKR

5417508

Unavailable

5

SPEAKER-ASM,WFR,RF,2OHM,RH [INCLUDES 3-6]

2417508

Unavailable

6

ASM-GRILL,SPKR,RH

2415788

Unavailable

7

GROMMET-RUBBER,MOUNT,.25"

5412504

$3.99

7

GROMMET-RUBBER,MOUNT,.25"

5412504

$3.99

8

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

Unavailable

9

MODULE, CELL MODEM

4018230

Unavailable

10

MODULE-ANTENNA,GPS,EXT

4018320

Unavailable

11

ASM-TWEETER,2OHM,LH

2417391

Unavailable

11

ASM-TWEETER,2OHM,RH

2417392

Unavailable

11

ASM-TWEETER,2OHM,LH

2417391

Unavailable

11

ASM-TWEETER,2OHM,RH

2417392

Unavailable

12

HARNESS-RADIO,SS,RFAMP [INCLUDES 13 & 14]

2415597

Unavailable

13

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

14

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

15

DISP-PGM,SLG,NAV

3286977

Unavailable

16

ASM-BRKT,MOUNT,RC

1027386

Unavailable

17

SCREW-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.19
