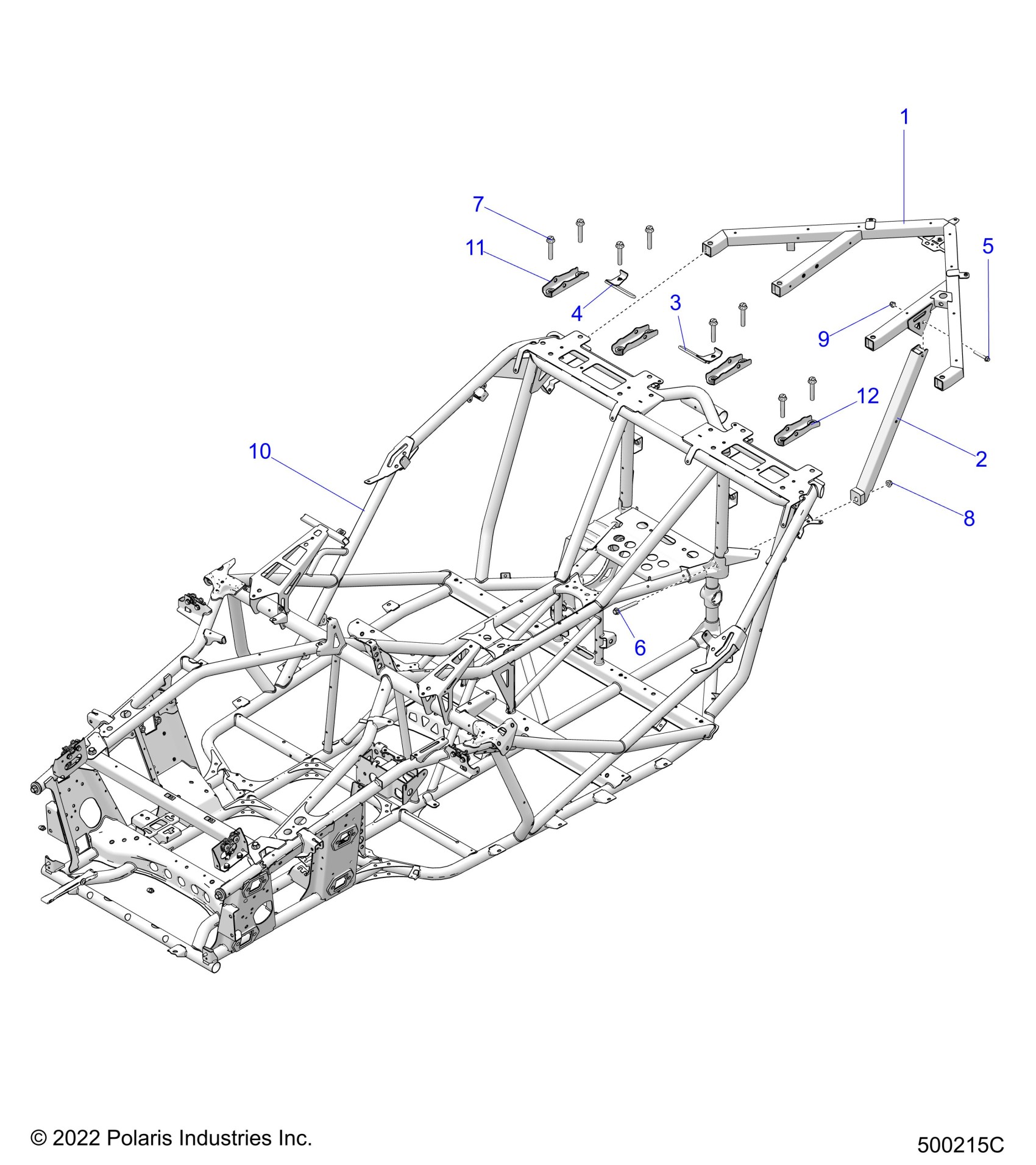

Polaris SLINGSHOT ROUSH EDITION (R01) - T24AALHB/GB CHASSIS, MAIN, and REAR ASM. - T24AALHB/GB (500215C) Diagram

#

Description

Price

1

WELD-SUBFRAME,REAR

1026167

$999.99

2

WELD-TUBE,REAR BRACE

1021668

$125.46

3

ASM-WIRE,GUIDE,SEAT BELT,LH

2637686

$84.99

4

ASM-WIRE,GUIDE,SEAT BELT,RH

2637687

$84.99

5

SCR-M8X1.25X55,HX/FL-Y

7517281

$8.99

6

SCR-HXFL-M10X1.5X90 10.9 ZOD

7519790

$2.62

7

SCR-HXFL-M12X1.75X70 10.9,ZPC

7521334-70

$4.76

8

NUT-HXFL-M10X1.50 10 ZPC

7547017

$5.56

9

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

10

WELD-MAINFRAME,CHASSIS,IND RED

1027912-293

$7,199.99

11

WELD-MNT,REAR,RH

1027102

$79.99

12

WELD-MNT,REAR,LH

1027101

$79.99
