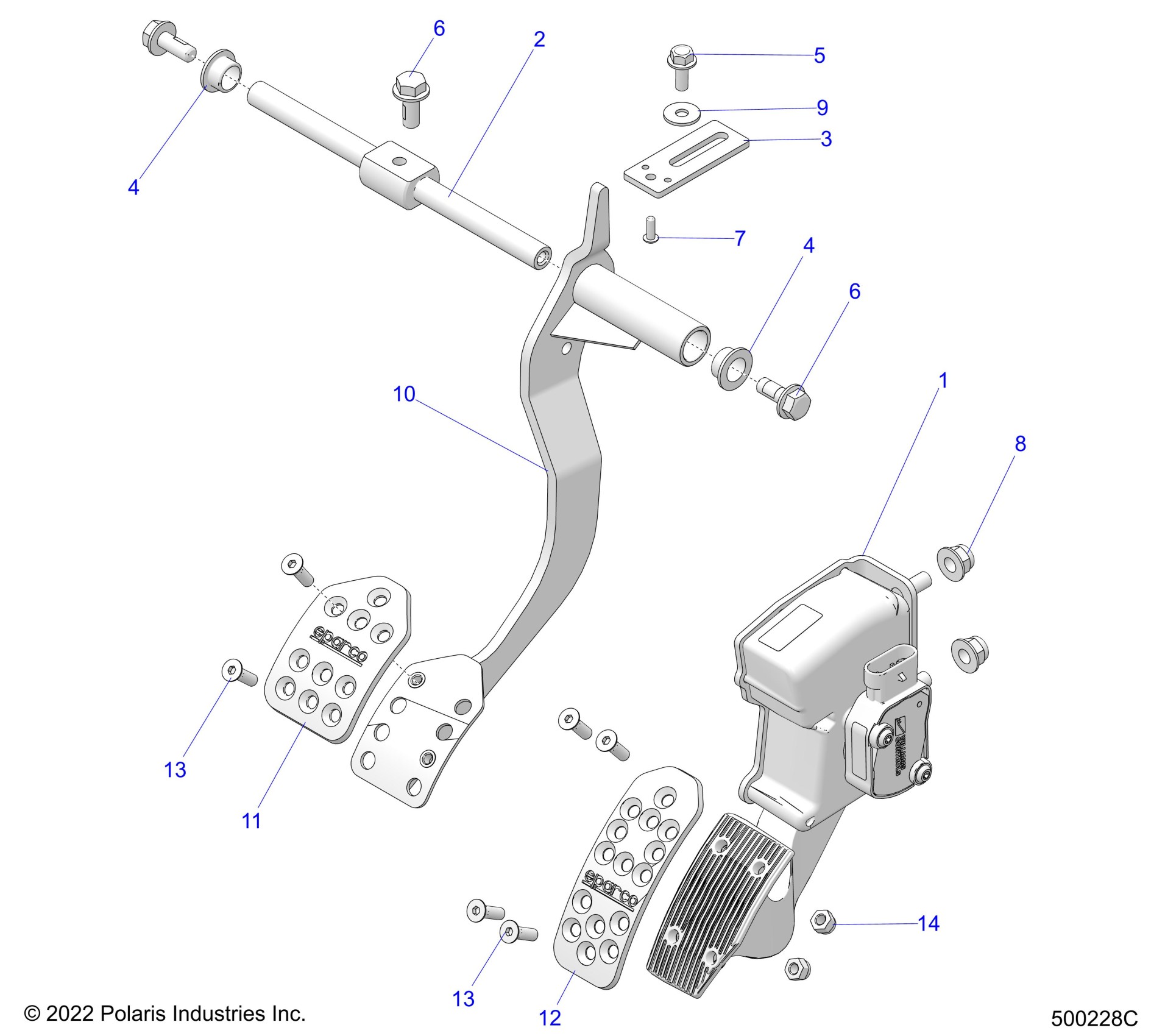

Polaris SLINGSHOT ROUSH EDITION ALL OPTIONS (R01) - T23AALHB/AALGB CONTROLS, FOOT CONTROLS AUTO - T23AALHB/GB (500228C) Diagram

#

Description
Price

1

PEDAL-ELECTRONIC THROTTLE, SS

4080161

$213.00

2

PIVOT-PEDAL

5143734

$54.99

3

BRKT-MNT,PEDAL SWITCH

5270088

$49.99

4

BUSHING, PIVOT, PEDAL

5433189

$3.97

4

BUSHING, PIVOT, PEDAL

5433189

$3.97

5

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7517770

$2.38

6

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

6

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

7

SCR-TXPH-M4X0.7X12 8.8 ZPC

7521002

$3.97

8

NUT-M8X1.25,HXFLG,NYLON INS

7547317

$2.38

9

WASHER-6.4MMX18X1.6,SS

7556094

$4.76

10

WELD-PEDAL,BRAKE,M,FLT BLK

1026076-463

$149.99

11

PEDAL-CVR,CLTCH/BK,SPRCO,PIUMA

5262626

$111.33

12

PEDAL-COVER,THROTTLE,SPARCO BK

5262628

$121.02

13

SCREW-M6

7520516

$3.97

13

SCREW-M6

7520516

$3.97

14

NUT,LOCK,M6-4,PDL CVR,SPRCO

7547833

$3.17
