- SLINGSHOT R/S/SL/SP AUTODRIVE ALL OPTIONS (R06) - T21AAPHD/RHB/SHD/THD
SUSPENSION, FRONT ASM. - T21AAPHD/RHB/SHD/THD ALL OPTIONS (500160C)

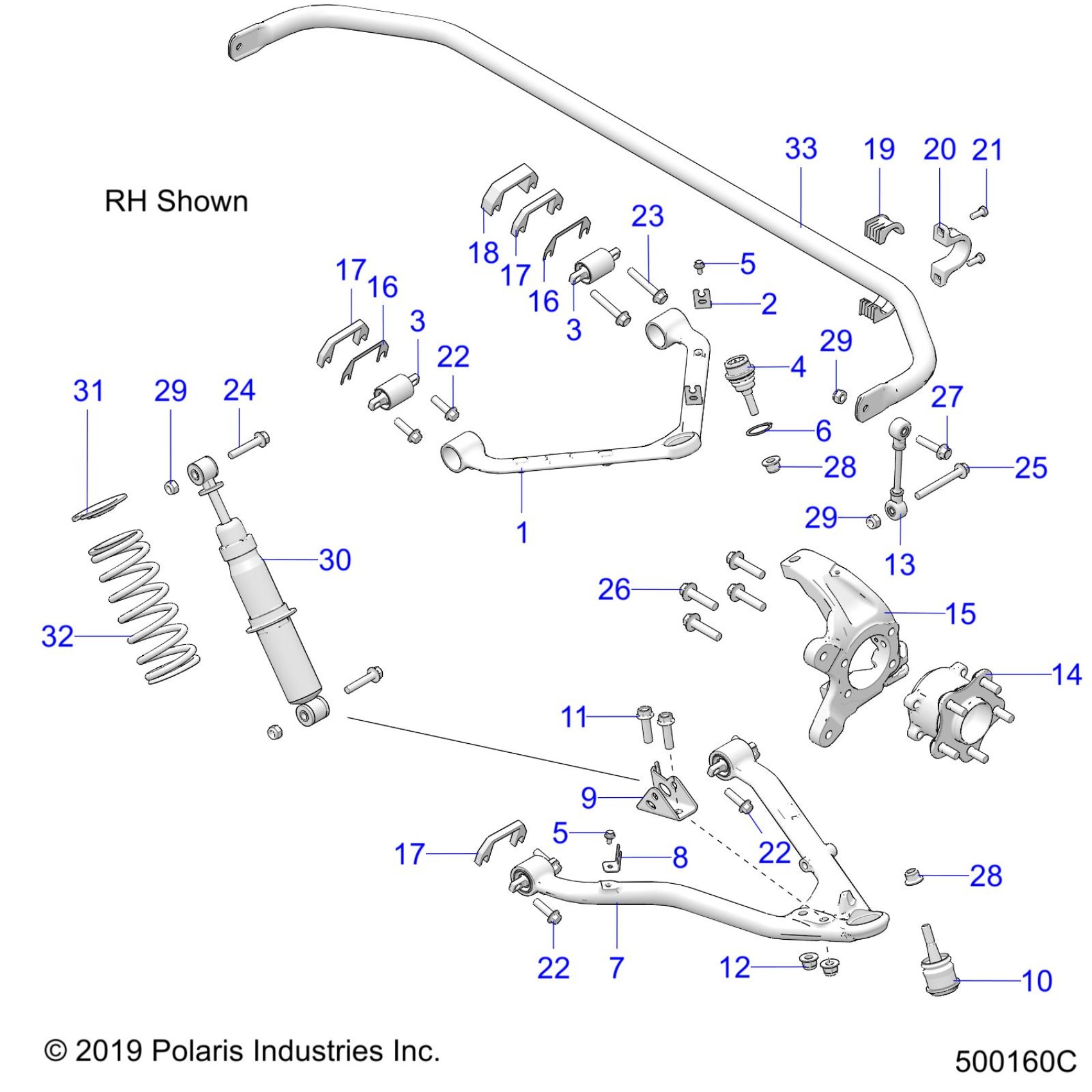

Polaris SLINGSHOT R/S/SL/SP AUTODRIVE ALL OPTIONS (R06) - T21AAPHD/RHB/SHD/THD SUSPENSION, FRONT ASM. - T21AAPHD/RHB/SHD/THD ALL OPTIONS (500160C) Diagram
#
1
ASM-ARM,CONTROL,UPPER,RH (INCL. 1-6)
1025378
Unavailable
1
ASM-ARM,CONTROL,UPPER,LH (INCL. 1-6)
1025377
Unavailable
2
MOUNT, CABLE
5258502
Unavailable
3
BUSHING-CONTROL ARM,ALUM
5417157
Unavailable
3
BUSHING-CONTROL ARM,ALUM
5417157
Unavailable
4
BALL-JOINT,TAPER,S24MM [TO 6/5/2023]
7061277
Unavailable
4
BALL-JOINT,TAPER,S24MM [FROM 6/5/2023]
7061324
Unavailable
5
SCREW-HXFL-M6X1.0X12 8.8 ZPB
7517704
$7.19
5
SCREW-HXFL-M6X1.0X12 8.8 ZPB
7517704
$7.19
6
RING-RTG,DSH-33ST
7710716
$7.19
7
ASM., ARM,CONTROL,LOWER,LH (INCL. 5,7-12)
1025381
Unavailable
7
ASM., ARM,CONTROL,LOWER,RH (INCL. 5,7-12)
1025382
Unavailable
8
MOUNT, BRAKE LINE
5258501
Unavailable
9
CLEVIS-FRONT,SHOCK,RH
5261634
Unavailable
9
CLEVIS-FRONT,SHOCK,LH
5261010
Unavailable
10
BALL JOINT, TAPERED, LWR TENS
7061202
Unavailable
11
SCR-HXFLGHD,M12X40,SPRKT BOLT
7518878
Unavailable
12
NUT-HXFL M12X1.75 8 ZOD NYL
7547441
$4.79
13
ASM., LINKAGE, STABILIZER
1543601
Unavailable
14
HUB, FRONT
3515108
Unavailable
15
KNUCKLE, RH
5139940
Unavailable
15
KNUCKLE, LH
5139939
Unavailable
16
SHIM-ALIGNMENT, 1MM ALUM
5260616
Unavailable
16
SHIM-ALIGNMENT, 1MM ALUM
5260616
Unavailable
17
SHIM-ALIGNMENT,10MM ALUM
5262689
Unavailable
17
SHIM-ALIGNMENT,10MM ALUM
5262689
Unavailable
17
SHIM-ALIGNMENT,10MM ALUM
5262689
Unavailable
18
SHIM-ALIGNMENT,20MM ALUM
5262690
Unavailable
19
BUSHING, SWAY BAR, 1.25 IN.
5451257
$7.19
20
BRACKET-CAP,SWAY BAR,1.25"
5632497
$39.99
21
SCR-HH-M8X1.25X20 8.8 ZPC D204
7518097
$3.99
22
SCR-HXFL-M10X1.5X35 8.8 ZPC
7518644
$4.79
22
SCR-HXFL-M10X1.5X35 8.8 ZPC
7518644
$4.79
22
SCR-HXFL-M10X1.5X35 8.8 ZPC
7518644
$4.79
23
SCR-M10X1.5X60-8.8 HFS ZOD
7518941
$3.99
24
SCR-M10X1.5X55,8.8,HXFLG
7519726
Unavailable
25
SCR-HXFL-M10X1.5X90 10.9 ZOD
7519790
$2.63
26
SCR-HXFL-M12X1.25X50 10.9 ZB3
7520003
$23.99
27
SCR-HXFL-M10X1.5X45 8.8 ZPB
7520013
Unavailable
28
NUT-M12X1.5, FLG, NYLOC-OLIVE D
7547334
$4.79
28
NUT-M12X1.5, FLG, NYLOC-OLIVE D
7547334
$4.79
29
NUT-HEX-M10X1.5 10 ZB3 NYL
7547746
$2.39
29
NUT-HEX-M10X1.5 10 ZB3 NYL
7547746
$2.39
29
NUT-HEX-M10X1.5 10 ZB3 NYL
7547746
$2.39
30
SHOCK-FRONT
7045003
Unavailable
31
RETAINER, SPRING, STEEL
7044246
Unavailable
32
SPR-30.1N,301FL,60-60ID,BLACK
7045001-266
Unavailable
32
SPR-30.1N,301FL,60-60ID,CLOUD SILVER
7045001-385
Unavailable
32
SPR-30.1N,301FL,60-60ID,POLARIS BLUE METALLIC
7045001-751
Unavailable
32
SPR-30.1N,301FL,60-60ID,PERFORMANCE RED
7045001-799
Unavailable
33
BAR, ANTI-ROLL, E-COAT
5339984-329
Unavailable
