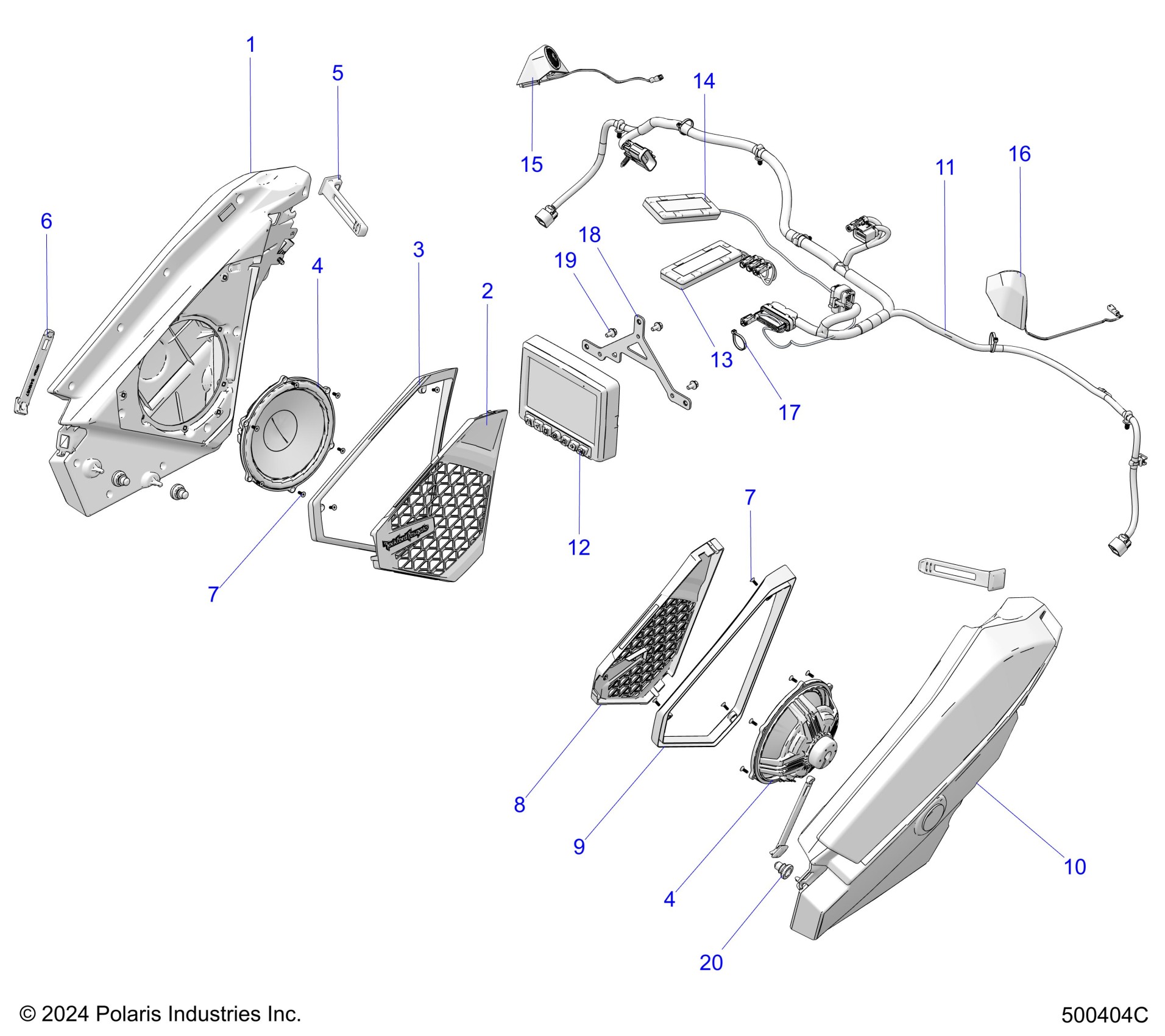

Polaris SLINGSHOT R (R01) - T25AARGB/HB ELECTRICAL, INFOTAINMENT - T25AARGB/HB (500404C) Diagram

#

Description

Price

1

ASM-ENC,8IN SPKR,RF,LH,NO LGHT [INCLUDES 2-7]

2417604

Unavailable

2

ASM-GRILLE BEZEL,8IN SPKR,LH

2417389

Unavailable

3

PLUG-GRILLE,8IN SPKR,LH

5465817

Unavailable

4

ASM-SPKR,WOOFER,8IN

2417393

Unavailable

4

ASM-SPKR,WOOFER,8IN

2417393

Unavailable

5

STRAP-MOUNTING,SPKR

5417508

Unavailable

6

STRAP-RETENTION,SPEAKER,SLG

5419057

Unavailable

7

SCR-HXBH-M4X0.7X10,SS

7527844

Unavailable

7

SCR-HXBH-M4X0.7X10,SS

7527844

Unavailable

8

ASM-GRILLE BEZEL,8IN SPKR,RH

2417390

Unavailable

9

PLUG-GRILLE,8IN SPKR,RH

5465818

Unavailable

10

ASM-ENC,8IN SPKR,RF,RH,NO LGHT [INCLUDES 4-9]

2417605

Unavailable

11

HARN-AUDIO,SLG,RC,TCU

2416909

Unavailable

12

DISP-PGM,SLG

3286928

Unavailable

13

ANTENNA-3IN1,GPS,2CELL

4081867

Unavailable

14

ANTENNA-GPSONLY,27DB,725MM

4082198

Unavailable

15

ASM-TWEETER,2OHM,LH

2417391

Unavailable

16

ASM-TWEETER,2OHM,RH

2417392

Unavailable

17

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

Unavailable

18

ASM-BRKT,MOUNT,RC

1027386

Unavailable

19

SCREW-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.19

20

GROMMET-RUBBER,SPKR MOUNT

5418717

Unavailable
