Partiron

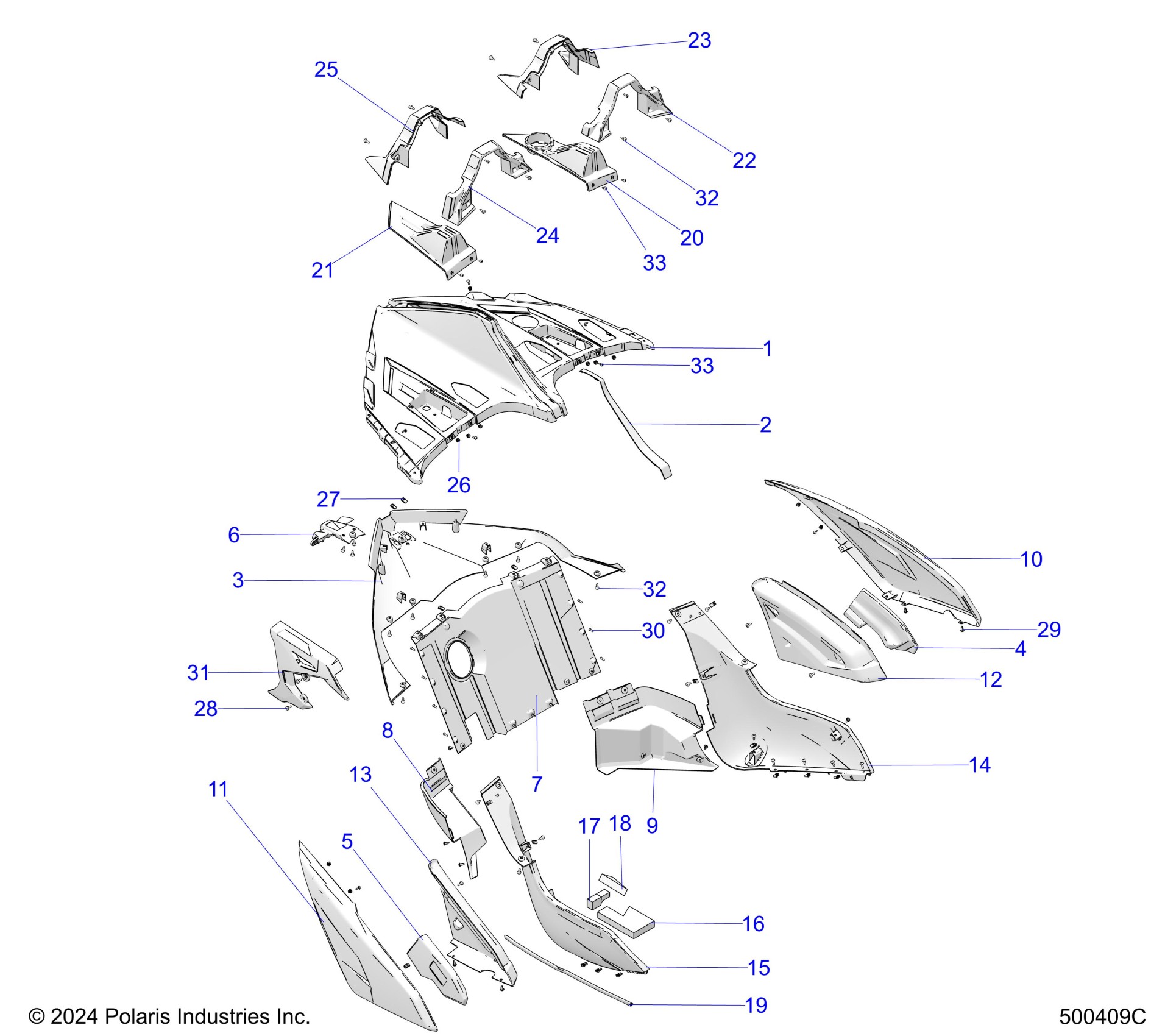

Polaris SLINGSHOT R (R01) - T25AARGB/HB BODY, REAR - T25AARGB/HB (500409C) Diagram

#

Description
Price

1

DECK-REAR,TOP,GRANITE GRAY [GRANITE GRAY]

5458805-928

$949.99

1

DECK-REAR,TOP,STRM BLU AZURE [STORM BLUE AZURE]

5458805-946

$949.99

2

TRIM, CHMSL, UPPER

5452313

$40.46

3

CLOSEOUT, REAR, DECK, UNDERSIDE

5454965

$150.06

4

SUPPORT-WING,LH

5456456

$40.46

5

SUPPORT-WING,RH

5456457

$40.46

6

MOUNT, LICENSE PLATE

5439679

$36.41

7

PANEL, REAR, CENTER

5439961

$174.27

8

PANEL, CLOSEOUT, REAR, SPRKT, RH

5439971

$101.17

9

PANEL-CLOSEOUT,BATTERY

5453239

$101.17

10

PANEL-WING,REAR,OUTER,LH,GNTGR [GRANITE GRAY]

5454951-928

$495.22

10

PANEL-WING,REAR,OUTER,LH,HVR [HAVASU RED]

5454951-292

$619.67

11

PANEL-WING,REAR,OUTER,RH,GNTGR [GRANITE GRAY]

5454952-928

$495.22

11

PANEL-WING,REAR,OUTER,RH,HVR [HAVASU RED]

5454952-292

$619.67

12

PANEL-WING,REAR,INNER,LH

5454960

$84.98

13

PANEL-WING,REAR,INNER,RH

5454961

$84.98

14

PANEL, ROCKER, REAR, LH

5454953

$275.54

15

PANEL, ROCKER, REAR, RH

5454954

$235.54

16

FOAM, PASSENGER, REAR BODY

5814242

$33.87

17

FOAM-PASS REAR,SEAT MT

5522327

$9.70

18

FOAM-ROCKER,PASS REAR

5522331

$9.70

19

SEAL-FLR,FOAM,PASS

5522326

$27.78

20

PANEL-RR HUMP,DECK,LH.ONYBLKSM [ONXY BLACK]

5453411-866

$204.99

20

PANEL-RR HUMP,DECK,LH,HVS RD [HAVASU RED]

5453411-292

$204.99

21

PANEL-RR HUMP,DECK,RH,ONYBLKSM [ONXY BLACK]

5453412-866

$204.99

21

PANEL-REAR,HUMP,DECK,RH,HVS RD [HAVASU RED]

5453412-292

$204.99

22

COVER-LH,FRONT,HOOP,GRNT GRAY [GRANITE GRAY]

5450045-928

$285.70

22

COVER-LH,FRONT,HOOP,HAVASU RED [HAVASU RED]

5450045-292

$285.70

23

COVER,LH,REAR,HOOP,GRNT GRAY [GRANITE GRAY]

5450030-928

$285.70

23

COVER-LH,REAR,HOOP,HAVASU RED [HAVASU RED]

5450030-292

$285.70

24

COVER-RH,FRONT,HOOP,GRNT GRAY [GRANITE GRAY]

5450029-928

$285.70

24

COVER-RH,FRONT,HOOP,HAVASU RED [HAVASU RED]

5450029-292

$285.70

25

COVER-RH,REAR,HOOP,GRNT GRAY [GRANITE GRAY]

5450031-928

$285.70

25

COVER-RH,REAR,HOOP,HAVASU RED [HAVASU RED]

5450031-292

$285.70

26

NUT, PAL NUT, M4

7547324

Unavailable

27

CLIP-U SPEED NUT

7081305

Unavailable

28

SCREW-TXBH-M6x1.0x15 8.8 ZB3 SH

7520011

$2.38

29

RIVET-TUFLOK,.315-.325X.787

7661855

Unavailable

30

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.19

31

ASM-BELT GUARD,GRANITE GRAY [GRANITE GRAY]

2636320-928

$199.99

31

ASM-BELT GUARD,STORM BLUEAZURE [STORM BLUE AZURE]

2636320-946

$199.99

32

SCR-TXBH-M6X1.0X21 ZB SH TAP

7520909

Unavailable

32

SCR-TXBH-M6X1.0X21 ZB SH TAP

7520909

Unavailable

33

SCREW-M4.2X1.40,12,HEX,BUTT,SHLD

7518518

Unavailable

33

SCREW-M4.2X1.40,12,HEX,BUTT,SHLD

7518518

Unavailable
