- SLINGSHOT R (R01) - T24AARGB/HB
ELECTRICAL, INFOTAINMENT - T24AARHB/GB (500299C)

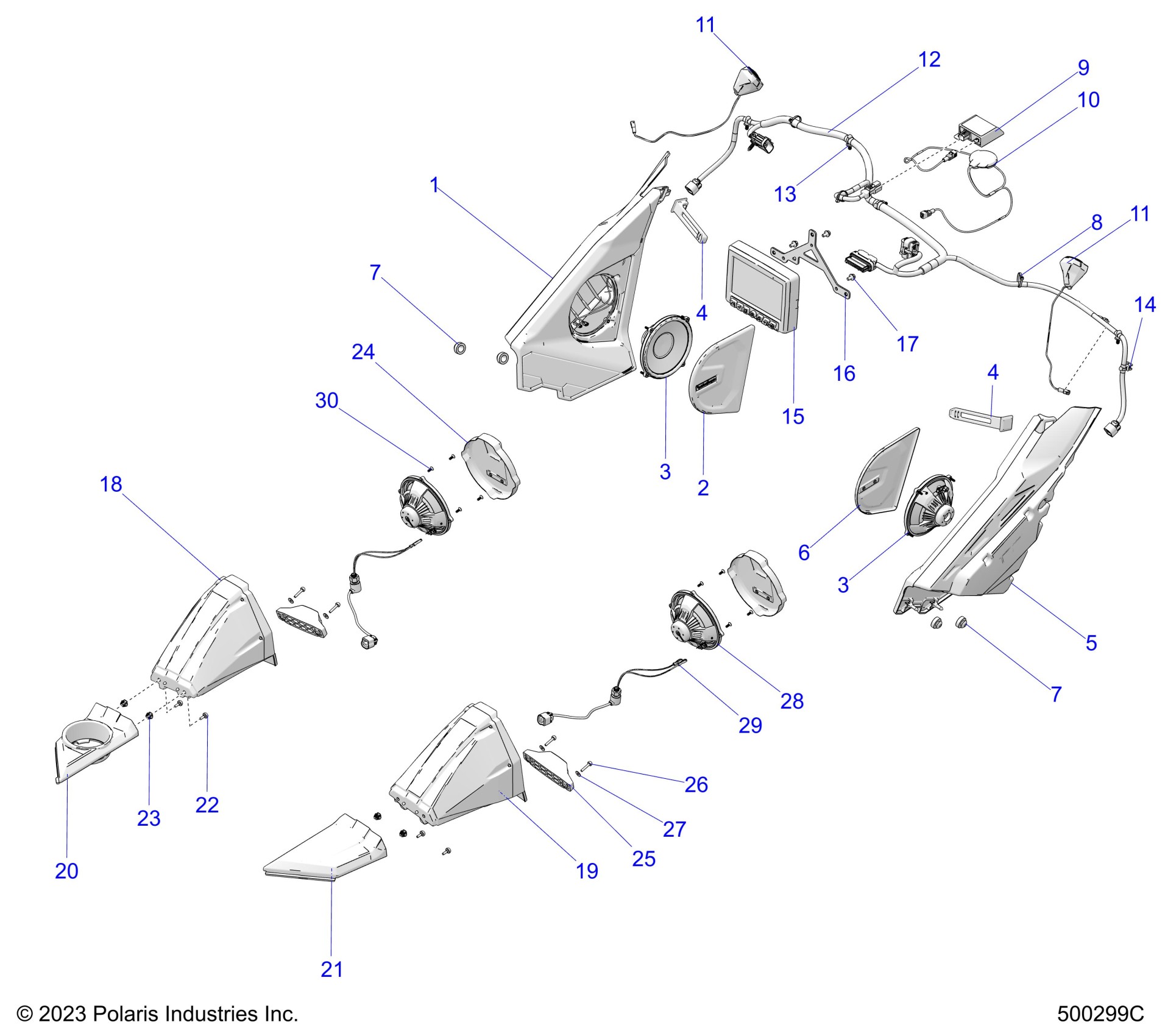

Polaris SLINGSHOT R (R01) - T24AARGB/HB ELECTRICAL, INFOTAINMENT - T24AARHB/GB (500299C) Diagram
#
1
SPEAKER-ASM,WFR,RF,2OHM,LH [INCLUDES 2-4]
2417507
Unavailable
2
ASM-GRILL,SPKR,LH
2415787
Unavailable
3
ASM-SPEAKER,WOOFER,ULT LE
2416041
Unavailable
3
ASM-SPEAKER,WOOFER,ULT LE
2416041
Unavailable
4
STRAP-MOUNTING,SPKR
5417508
Unavailable
4
STRAP-MOUNTING,SPKR
5417508
Unavailable
5
SPEAKER-ASM,WFR,RF,2OHM,RH [INCLUDES 3-6]
2417508
Unavailable
6
ASM-GRILL,SPKR,RH
2415788
Unavailable
7
GROMMET-RUBBER,MOUNT,.25"
5412504
$3.99
7
GROMMET-RUBBER,MOUNT,.25"
5412504
$3.99
8
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
Unavailable
9
MODULE, CELL MODEM
4018230
Unavailable
10
MODULE-ANTENNA,GPS,EXT
4018320
Unavailable
11
ASM-TWEETER,2OHM,LH
2417391
Unavailable
11
ASM-TWEETER,2OHM,RH
2417392
Unavailable
11
ASM-TWEETER,2OHM,LH
2417391
Unavailable
11
ASM-TWEETER,2OHM,RH
2417392
Unavailable
12
HARNESS-RADIO,SS,RFAMP [INCLUDES 13 & 14]
2415597
Unavailable
13
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
14
CLIP-EDGE,DIA5-50MM,OUT-SER
7081824
$12.79
15
DISP-PGM,SLG,NAV
3286977
Unavailable
16
ASM-BRKT,MOUNT,RC
1027386
Unavailable
17
SCREW-HXFL-M6X1.0X12 8.8 ZPB
7517704
$7.19
18
ASM-ENCL,SPKR,RR,LH,INDYRED [INDY RED]
2638209-293
Unavailable
18
ASM-ENCL,SPKR,RR,LH,PLUM CRZY [PLUM CRAZY]
2638209-784
Unavailable
18
ASM-ENCL,SPKR,RR,LH,ONYX BL [ONXY BLACK]
2638209-800
Unavailable
18
ASM-ENCL,SPKR,RR,LH,SLG O [SLINGSHOT ORANGE]
2638209-881
Unavailable
18
ASM-ENCL,SPKR,RR,LH,GOLDRUSH [GOLD RUSH]
2638209-955
Unavailable
19
ASM-ENCL,SPKR,RR,RH,INDYRED [INDY RED]
2638210-293
Unavailable
19
ASM-ENCL,SPKR,RR,RH,PLUM CRZY [PLUM CRAZY]
2638210-784
Unavailable
19
ASM-ENCL,SPKR,RR,RH,ONYX BL [ONXY BLACK]
2638210-800
Unavailable
19
ASM-ENCL,SPKR,RR,RH,SLG O [SLINGSHOT ORANGE]
2638210-881
Unavailable
19
ASM-ENCL,SPKR,RR,RH,GOLDRUSH [GOLD RUSH]
2638210-955
Unavailable
20
ENC-SPKR,RR,LH,RR,INDYRED [INDY RED]
5457694-293
Unavailable
20
ENCL-SPKR,RR,LH,RR,PLUM CRZY [PLUM CRAZY]
5457694-784
Unavailable
20
ENCL-SPKR,RR,LH,ONYX,BL [ONXY BLACK]
5457694-800
Unavailable
20
ENC-SPKR,RR,LH,RR,SLG O [SLINGSHOT ORANGE]
5457694-881
Unavailable
20
ENC-SPKR,RR,LH,RR,GOLDRUSH [GOLD RUSH]
5457694-955
Unavailable
21
ENC-SPKR,RR,RH,RR,INDYRED [INDY RED]
5457697-293
Unavailable
21
ENCL-SPKR,RR,RH,RR,PLUM CRZY [PLUM CRAZY]
5457697-784
Unavailable
21
ENCL-SPKR,RR,RH,ONYX,BL [ONXY BLACK]
5457697-800
Unavailable
21
ENC-SPKR,RR,RH,RR,SLG O [SLINGSHOT ORANGE]
5457697-881
Unavailable
21
ENC-SPKR,RR,RH,RR,GOLDRUSH [GOLD RUSH]
5457697-955
Unavailable
22
SCREW-M4.2X1.40,12,HEX,BUTT,SHLD
7518518
$1.59
23
NUT, PAL NUT, M4
7547324
$3.99
24
ASM-GRILL,SPKR,RR
2415891
Unavailable
25
BUMPER-SEAT,SLG
5418237
Unavailable
26
SCREW-HXBH M4.2X1.4X25 8.8 ZOD
7519309
Unavailable
27
WASHER-4.3X14.0X0.8 ZB
7556477
Unavailable
28
ASM-COAXIAL
2414537
$147.99
29
HARNESS-STAGE 3 SPEAKER,SLG
2415946
Unavailable
30
SCR-HXBH-M4X0.7X10,SS
7527844
Unavailable
