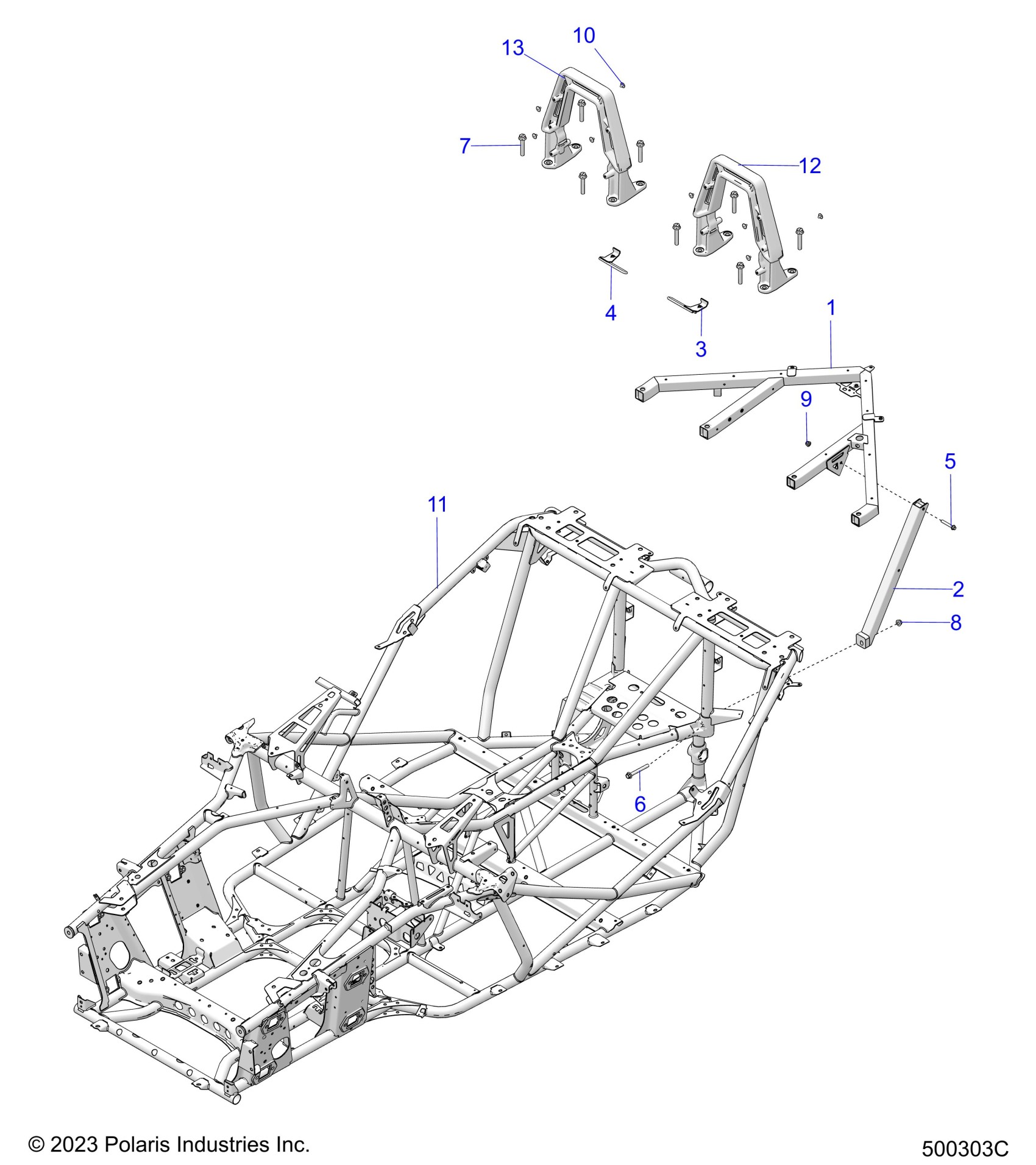

Polaris SLINGSHOT R (R01) - T24AARGB/HB CHASSIS, MAIN, AND REAR ASM. - T24AARHB/GB (500303C) Diagram

WELD-SUBFRAME,REAR

1026167

Unavailable

WELD-TUBE,REAR BRACE

1021668

Unavailable

ASM-WIRE,GUIDE,SEAT BELT,LH

2637686

Unavailable

ASM-WIRE,GUIDE,SEAT BELT,LH

2638314

Unavailable

ASM-WIRE,GUIDE,SEAT BELT,RH

2637687

Unavailable

ASM-WIRE,GUIDE,SEAT BELT,RH

2638315

Unavailable

SCR-M8X1.25X55,HX/FL-Y

7517281

$8.99

SCR-HXFL-M10X1.5X90 10.9 ZOD

7519790

$2.63

SCR-HXFL-M12X1.75X70 10.9,ZPC

7521334-70

$4.79

NUT-HXFL-M10X1.50 10 ZPC

7547017

$5.59

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

CLIP-DART,TRW PC47561

7670142

Unavailable

WELD-MAINFRAME,CHASSIS,IND RED [INDY RED]

1027912-293

Unavailable

WELD-MAINFRAME,CHASSIS,LFTD LM [LIFTED LIME]

1027912-801

Unavailable

WELD-MAINFRAME,CHASSIS,SLS ORG [SLINGSHOT ORANGE]

1027912-881

Unavailable

WELD-MAINFRAME,CHASSIS,CRS BLK [CRUSIER BLACK]

1027912-266

Unavailable

WELD-MAINFRAME,CHASSIS,PLCRZ [PLUM CRAZY]

1027912-784

Unavailable

HOOP-ROLL,LH,FLAT BLACK [FORGED]

5144613-463

Unavailable

HOOP-ROLL,RH,FLAT BLACK [FORGED]

5144614-463

Unavailable
