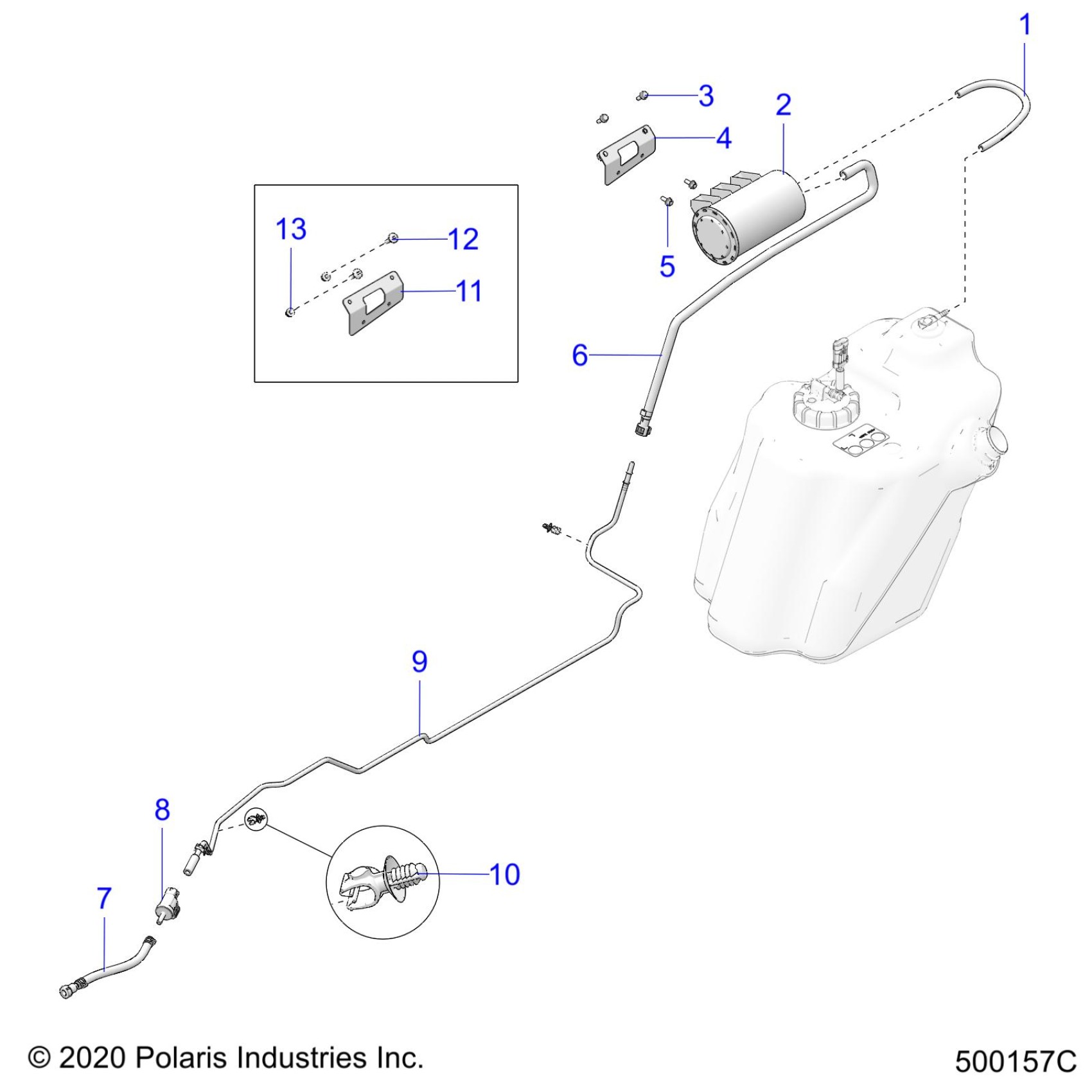

Polaris SLINGSHOT R MANUAL TRANSMISSION (R06) - T20AARGB FUEL SYSTEM, EVAPORATIVE - T20AARGBBD/T20AARGBBE CALIFORNIA ONLY (500157C) Diagram

#

Description

Price

1

HOSE-EVAP

5416486

$32.37

2

CANISTER-EVAP,CHARCOAL,1000CC

2521280

$85.70

3

SCR-HXFL-M6X1.0X20 8.8 ZOD NYL [TO 5/25/2020]

7518613

$3.97

4

BRACKET,EVAP,ECOAT [TO 5/25/2020]

1019206-329

$11.51

5

SCR-HXFL-M6X1.0X16 8.8 ZPB

7517770

$2.38

6

LINE-PURGE,EVAP CAN TO FRAME

5414551

$124.99

7

ASM., THRTL BODY LINE

2521756

$67.76

8

VALVE-PURGE

2521758

$69.99

9

LINE-EVAP,PURGE

2522092

$91.97

10

CLIP-ROUTING,8

5454313

$3.17

11

BRKT-EVAP, E-COAT [FROM 5/25/2020]

5270937-329

$32.37

12

SCR-TXTH-M6X1.0X25 ZFB [FROM 5/25/2020]

7519650

$3.97

13

NUT-M6 FLANGE,NYLOC [FROM 5/25/2020]

7547274

$1.19
