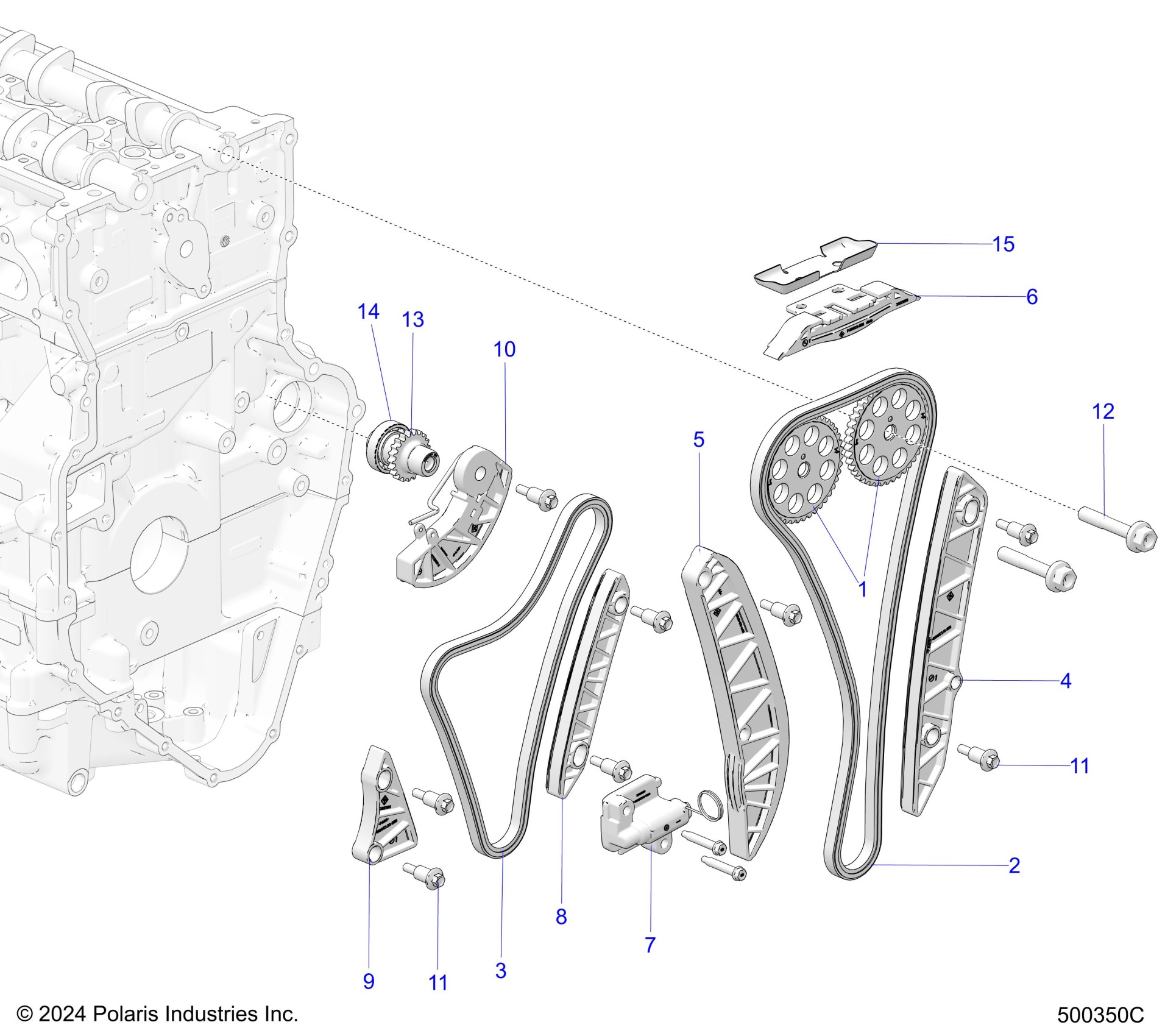

Polaris SLINGSHOT R GRAND TOURING (R01) - T25AAGGB/HB ENGINE, TIMING CHAIN AND RELATED - T25AAGGB/HB (500350C) Diagram

#

Description
Price

1

ASM-SPROCKET,CAMSHAFT

3023252

$35.99

2

CHAIN-CAMSHAFT

3222259

$98.99

3

CHAIN-AUX,DRIVE

3023193

$41.79

4

GUIDE-CHAIN,FIXED

3023186

$29.25

5

GUIDE-CHAIN,TENSION

3023187

$41.79

6

GUIDE-CHAIN,UPPER

3023188

$37.61

7

TENSIONER-CHAIN

3023189

$87.99

8

GUIDE-CHAIN,FIXED-AUX,INT

3023190

$13.37

9

GUIDE-CHAIN,FIXED-AUX,EXH

3023191

$11.19

10

GUIDE-CHAIN,TENSION-AUX

3023192

$29.25

11

BOLT-SHLDR,M6X8X15

7518328

Unavailable

11

BOLT-SHLDR,M6X8X15

7518328

Unavailable

12

SCR-HXFL-M10X1.25X55 12.9

3023208

$5.59

13

ASM-SPROCKET,WP [INCLUDES 14]

3023764

$59.99

14

BEARING-BALL,20X37X9

3514982

$19.99

15

BAFFLE-OIL FILL

5267292

$35.99
