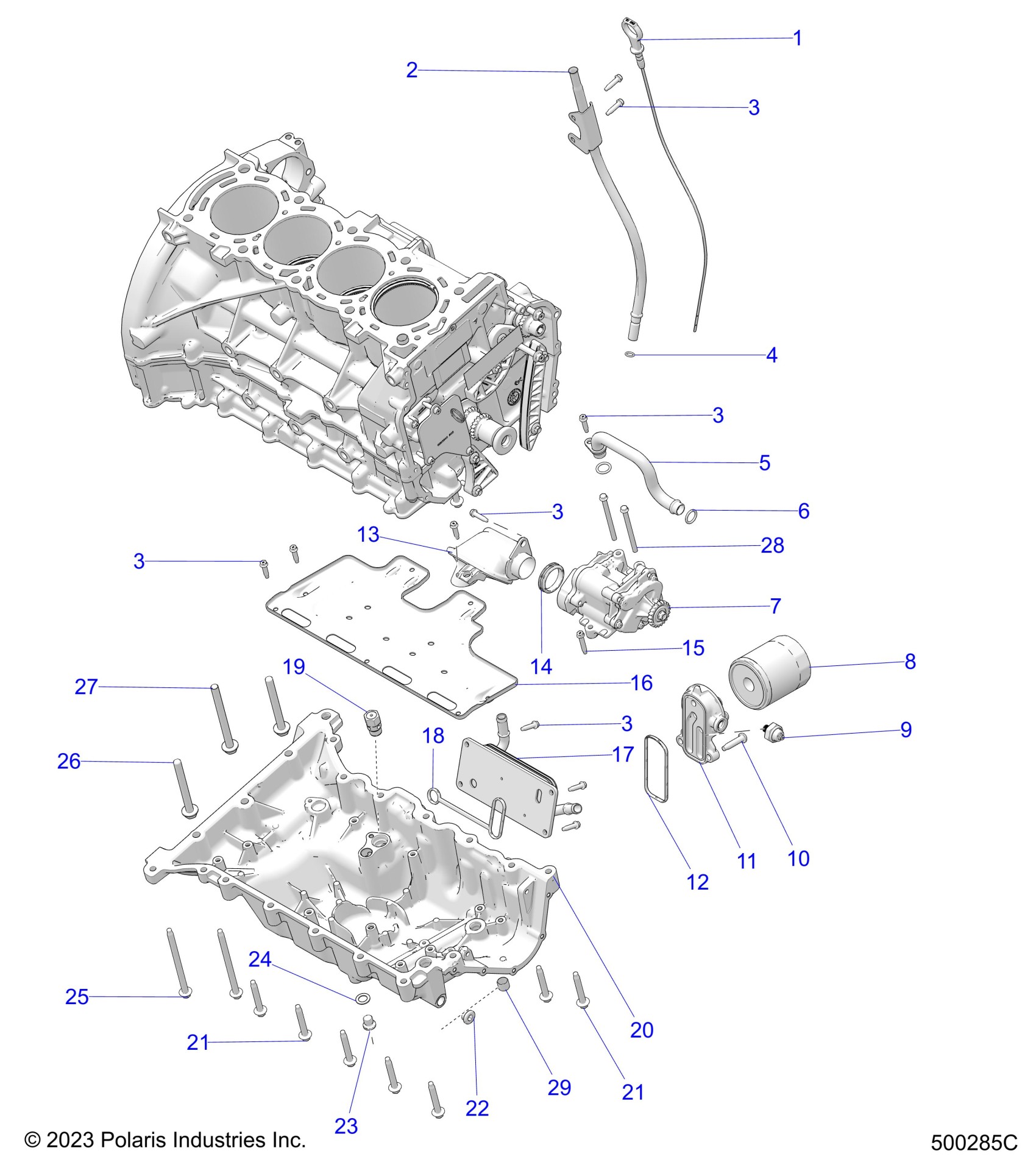

Polaris SLINGSHOT R GRAND TOURING (R01) - T25AAGGB/HB ENGINE, OIL PUMP AND RELATED - T25AAGGB/HB (500285C) Diagram

#

Description
Price

1

DIPSTICK,6QT

3024006

$13.75

2

TUBE-DIPSTICK [INCLUDES 4]

3023368

$44.51

3

SCR-HXFL-M6X1.0X20 8.8 DOG

7520496

$3.17

3

SCR-HXFL-M6X1.0X20 8.8 DOG

7520496

$3.17

3

SCR-HXFL-M6X1.0X20 8.8 DOG

7520496

$3.17

3

SCR-HXFL-M6X1.0X20 8.8 DOG

7520496

$3.17

3

SCR-HXFL-M6X1.0X20 8.8 DOG

7520496

$3.17

4

O-RING-.364X.504X.07,VITON

5416422

$3.17

5

TUBE-OIL COOLER,INLET

2521726

$68.79

6

O-RING,.612X.818X.103

5413837

$4.84

7

ASM., PUMP,OIL

2521759

$185.70

8

FILTER-OIL

2521728

$11.90

9

SWITCH-OIL,PRESS,2-PIN

4082169

$44.51

10

SCR-BHCS-M8X1.25X30 DOG

7520705

$3.17

11

ADAPTER-FILTER

5141859

$44.51

12

GASKET-FILTER ADAPTER

5814643

Unavailable

13

PICKUP-OIL

2521724

$23.81

14

SEAL-OIL PICKUP

3610276

$12.99

15

SCR-HXFL-M6X1.0X30 8.8 DOG

7520497

$3.17

16

PLATE-WINDAGE

5265899

$47.62

17

COOLER-OIL

2521725

$96.81

18

GASKET-OIL COOLER

5814676

$7.94

19

ASM-REGULATOR VALVE,85 PSI

2520672

$48.56

20

ASM-PAN,OIL [INCLUDES 22 & 29]

3024123

$479.99

21

SCR-HXFL-M8X1.25X50 8.8 DOG

7520503

$3.17

21

SCR-HXFL-M8X1.25X50 8.8 DOG

7520503

$3.17

22

PLUG-HEX SCKT,W/O-RING,M14X1.5

7052641

$5.56

23

PLUG-SOCKET,M12X1.5 DIN 908A

7052306

$15.37

24

WASHER-19X12X1.3,COPPER

5812232

$1.59

25

SCR-HXFL-M8X1.25X115 8.8 DOG

7520505

$3.97

26

BOLT-M10X1.5X95,HX HD FLG

7518468

$5.56

27

SCR-HXFL-M10X1.5X115 8.8 ZY3

7518526

$3.17

28

SCREW-HXFLG,M6X1.0X80

7520115

$7.14

29

DOWEL-HOLLOW, M12

7662129

$10.32
