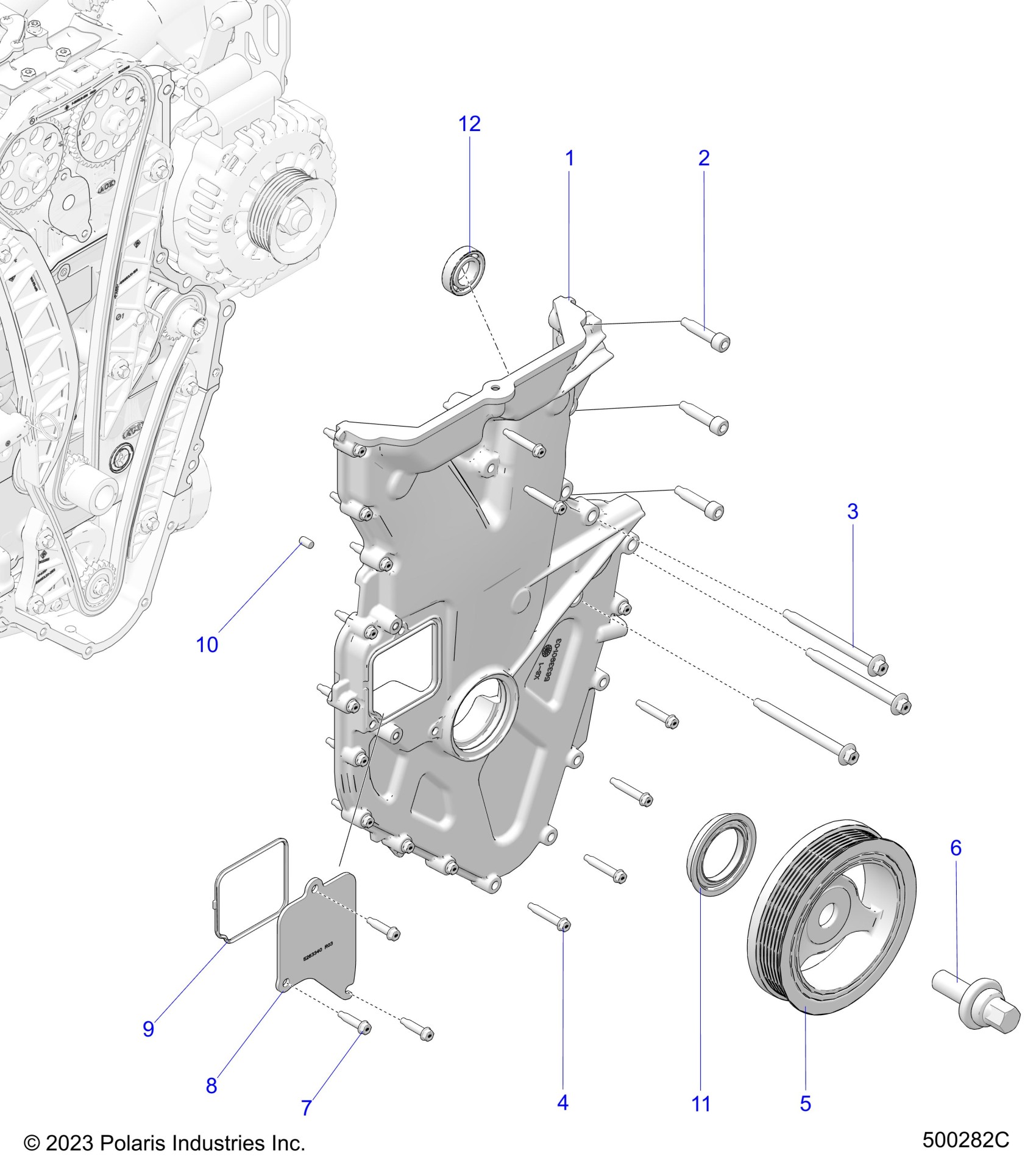

Polaris SLINGSHOT R GRAND TOURING (R01) - T25AAGGB/HB ENGINE, FRONT COVER ASSEMBLY - T25AAGGB/HB (500282C) Diagram

#

Description

Price

1

ASM., COVER,FRONT [INCL. 10-12]

3023362

$209.99

2

SCR-SHCS-M8X1.25X30 8.8 DOG

7520502

$3.17

3

SCR-HXFL-M8X1.25X90 8.8 DOG

7520504

$3.17

4

SCR-HXFL-M6X1.0X30 8.8 DOG

7520497

$3.17

5

PULLEY, FRONT,HARMONIC

3023556

$229.99

6

SCR-HHXFL-M16X1.5X50 10.9 SEMS

3023212

$34.99

7

SCR-HXFL-M6X1.0X20 8.8 DOG

7520496

$3.17

8

COVER, TENSIONER

5263340

$44.99

9

GASKET-TENS,COVER

5814487

$5.56

10

PIN-DOWEL,M6X10

5141111

$3.17

11

SEAL-MAIN,PULLEY

3610289

$39.99

12

BEARING-BALL,20X37X9

3514982

$23.79
