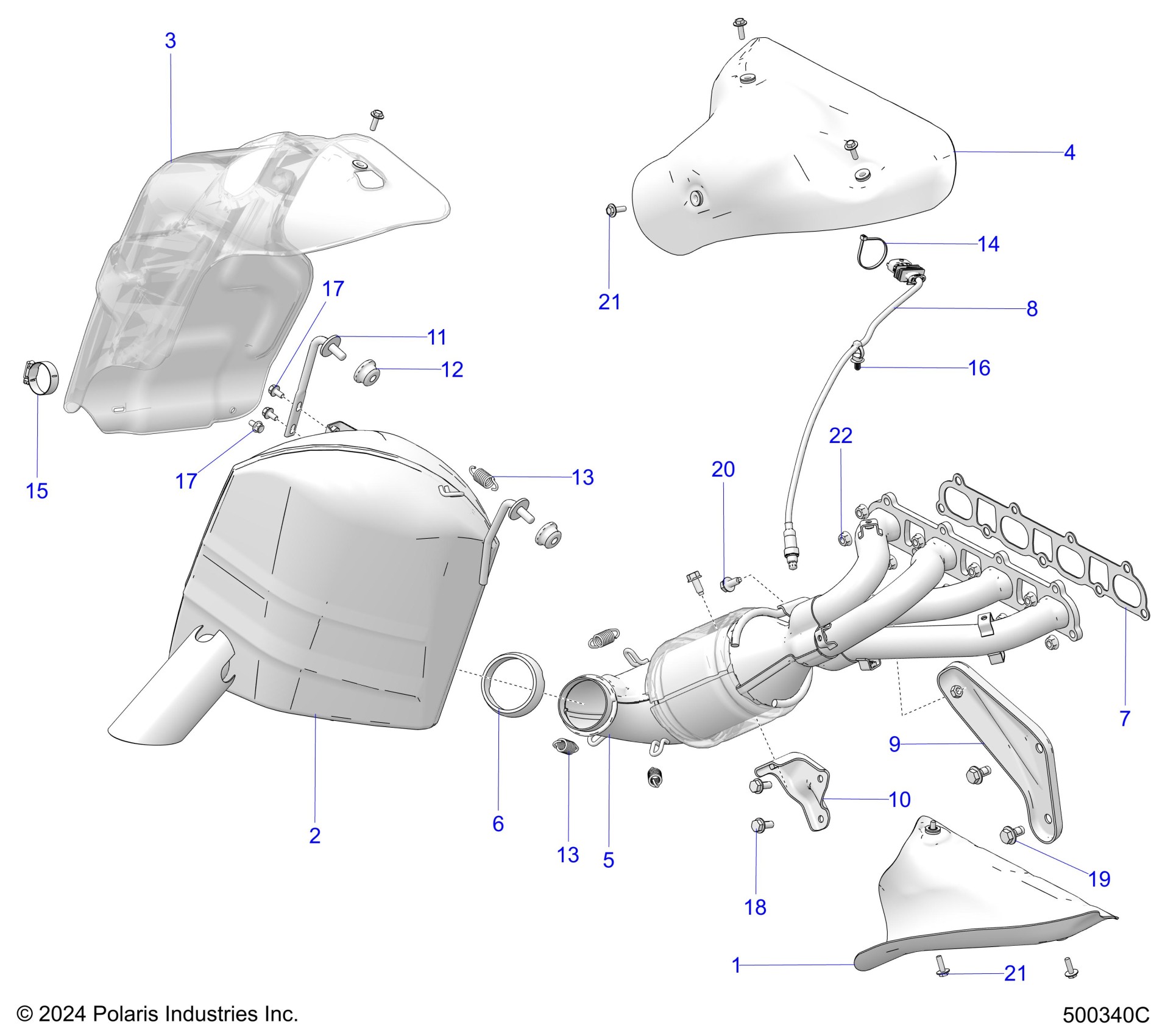

Polaris SLINGSHOT R GRAND TOURING (R01) - T25AAGGB/HB ENGINE, EXHAUST - T25AAGGB/HB (500340C) Diagram

SHIELD-HEAT,PRIMARIES,LOWER

1263360

Unavailable

ASM-MUFFLER,EXHAUST

1263754

Unavailable

SHIELD-HEAT,MUFFLER,BACK

1263801

Unavailable

SHIELD-HEAT,PRIMARIES,UPPER

1263871

Unavailable

ASM-HEADPIPE,EXHAUST

1263884

Unavailable

SEAL-EXHAUST,SOCKET 2.5ID

3610211

$19.99

GASKET-EXHAUST MANIFOLD

3610385

Unavailable

SENSOR-OXYGEN

4081411

Unavailable

BRKT-MNT,ENG,EX,COLLECTOR

5273249

Unavailable

BRKT-MNT,BELL,EX,ELBOW

5273461

Unavailable

HANGER-MUFFLER,REAR

5341796

Unavailable

ISOLATOR-EXHAUST,HANGER

5415785

$2.79

SPRING-EXHAUST S.S. SHOTPEENED

7043726

$4.84

SPRING-EXHAUST S.S. SHOTPEENED

7043726

$4.84

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CLAMP-HOSE, 1.750-SS

7080560

$11.19

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

SCREW-HXFLGHD,M6X12

7517886

$1.59

SCREW-HXFLGHD,M6X12

7517886

$1.59

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

SCR-HXFL-M10X1.5X20 8.8 Z NYL

7518460

$1.59

SCREW

7519970

$2.79

SCR-HHSEMS-M6X1.0X19 A286,LOCK

7520995

$4.79

SCR-HHSEMS-M6X1.0X19 A286,LOCK

7520995

$4.79

NUT-HXFL-M8X1.25 10 SPC

7547839

$3.19
