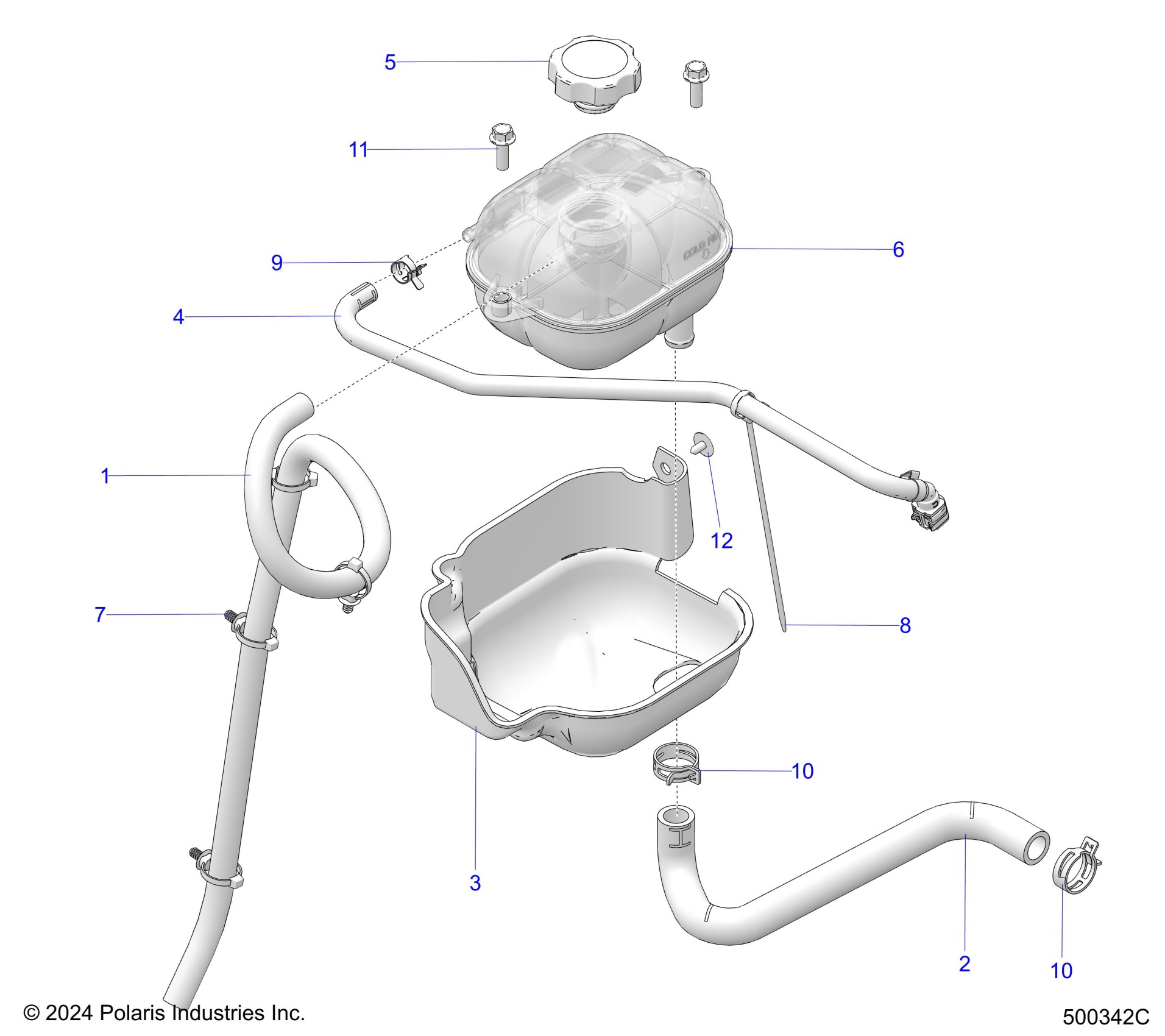

Polaris SLINGSHOT R GRAND TOURING (R01) - T25AAGGB/HB ENGINE, COOLING, SURGE TANK - T25AAGGB/HB (500342C) Diagram

#

Description
Price

1

HOSE-OVERFLOW

5416063

$43.56

2

HOSE-SURGE TANK

5416815

$94.99

3

SHIELD-COOLANT TANK

5416928

$36.41

4

ASM., VENT HOSE

5417506

$60.70

5

CAP, SURGE TANK

5439573

$39.99

6

TANK-SURGE,YS

5465188

$135.54

7

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

8

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.84

9

CLAMP, HOSE, SPRING

7082286

$7.14

10

CLAMP-CTB28

7082287

$3.97

10

CLAMP-CTB28

7082287

$3.97

11

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

12

CLIP-DART,TRW PC47561

7670142

$1.19
