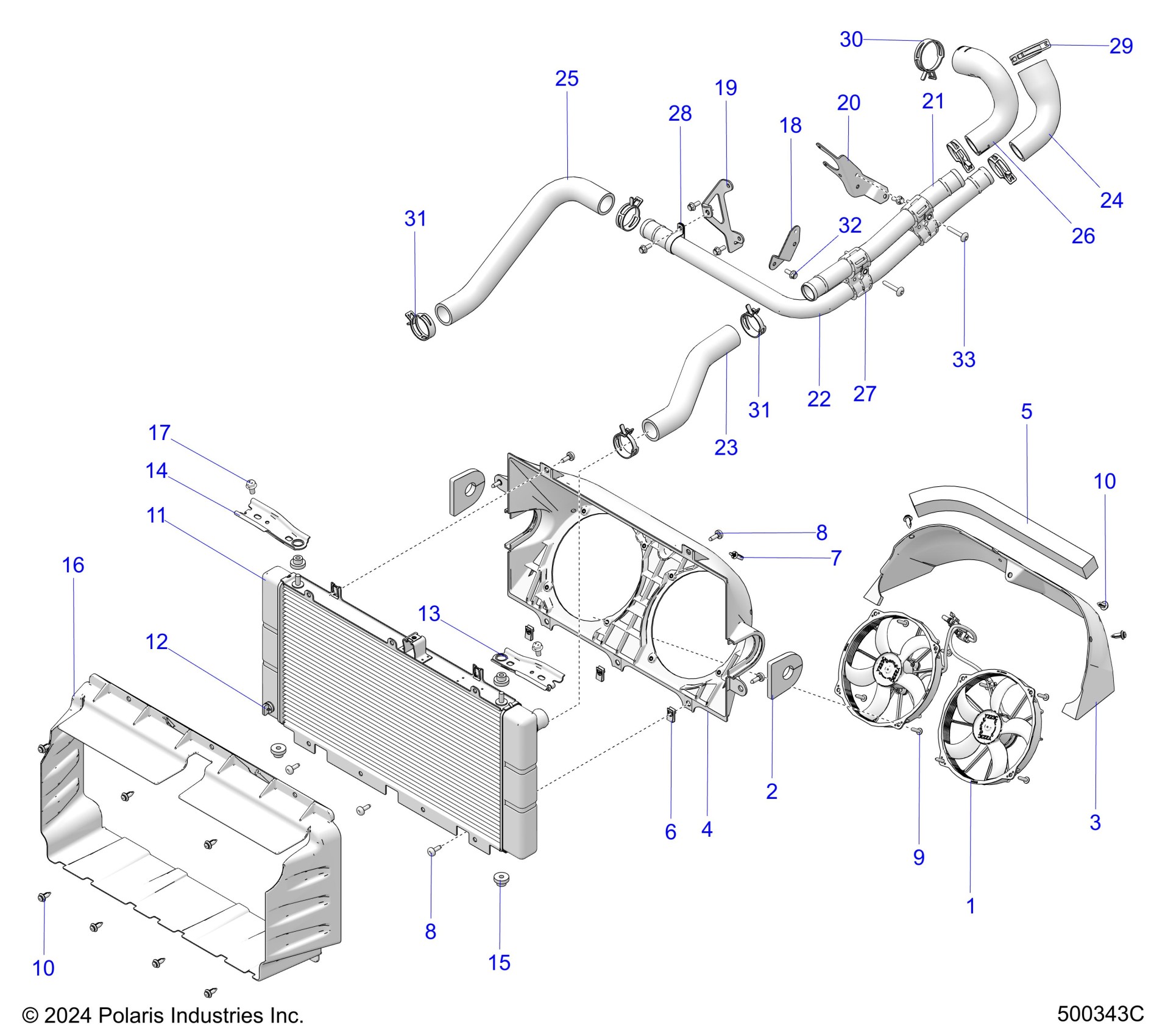

Polaris SLINGSHOT R GRAND TOURING (R01) - T25AAGGB/HB ENGINE, COOLING, RADIATOR AND HOSES - T25AAGGB/HB (500343C) Diagram

#

Description
Price

1

MOTOR-FAN,CLG,SLINGER

1241449

Unavailable

2

GROMMET-ARB,24MM

5417967

Unavailable

3

SHROUD-REAR RADIATOR

5454505

Unavailable

4

ASM-FAN SHROUD,NOBYPASS

5458870

Unavailable

5

SEAL-STEERING RACK

5814706

Unavailable

6

CLIP-U SPEED NUT

7081305

$1.99

7

CLIP-PUSH IN, 0.50

7081968

Unavailable

8

SCREW-TXBH-M6x1.0x15 8.8 ZB3 SH

7520011

Unavailable

8

SCREW-TXBH-M6x1.0x15 8.8 ZB3 SH

7520011

Unavailable

9

SCR-TXTH-M5X0.8X25 T20 ZPB

7520280

$3.99

10

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

10

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

11

CORE-RDTR,17FPI,C-MNT

1244786

Unavailable

12

VALVE-PLASTIC RAD/COOLER DRAIN

7052410

$23.99

13

BRKT-RESTRAINT,RADIATOR,LH

5274943

Unavailable

14

BRKT-RESTRAINT,RADIATOR,RH

5274944

Unavailable

15

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

16

DUCT-INLET,TUNL

5465738

Unavailable

17

SCR-HXFL-M8X1.25X16 10.9 ZFB

7521332-16

$3.73

18

BRACKET-COOLANT TUBE

5263828-329

Unavailable

19

ASM., BRACKET COOLANT LINE

5265524-329

Unavailable

20

BRKT-CLNT TUBE, SENSR,E-COAT

5275170-329

Unavailable

21

TUBE-COOLANT,UPPR

5345610

Unavailable

22

TUBE-COOLANT,LOWR

5345611

Unavailable

23

HOSE-RADIATOR,INLET

5416066

Unavailable

24

HOSE-ENGINE INLET

5416069

Unavailable

25

HOSE,RADIATOR OUTLET

5416485

Unavailable

26

HOSE-ENGINE OUTLET

5417090

Unavailable

27

BRACKET-COOLANT TUBE

5453830

$7.99

28

CLAMP-HOSE

7080807

$9.59

29

CLAMP-CTB58

7082270

$7.19

30

CLAMP-CTB51,GRAY

7082530

$6.39

31

CLAMP-CTB42

7082625

$7.19

31

CLAMP-CTB42

7082625

$7.19

32

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

33

SCR-TXTH-M6X1.0X45 RIE

7519722

$1.59
