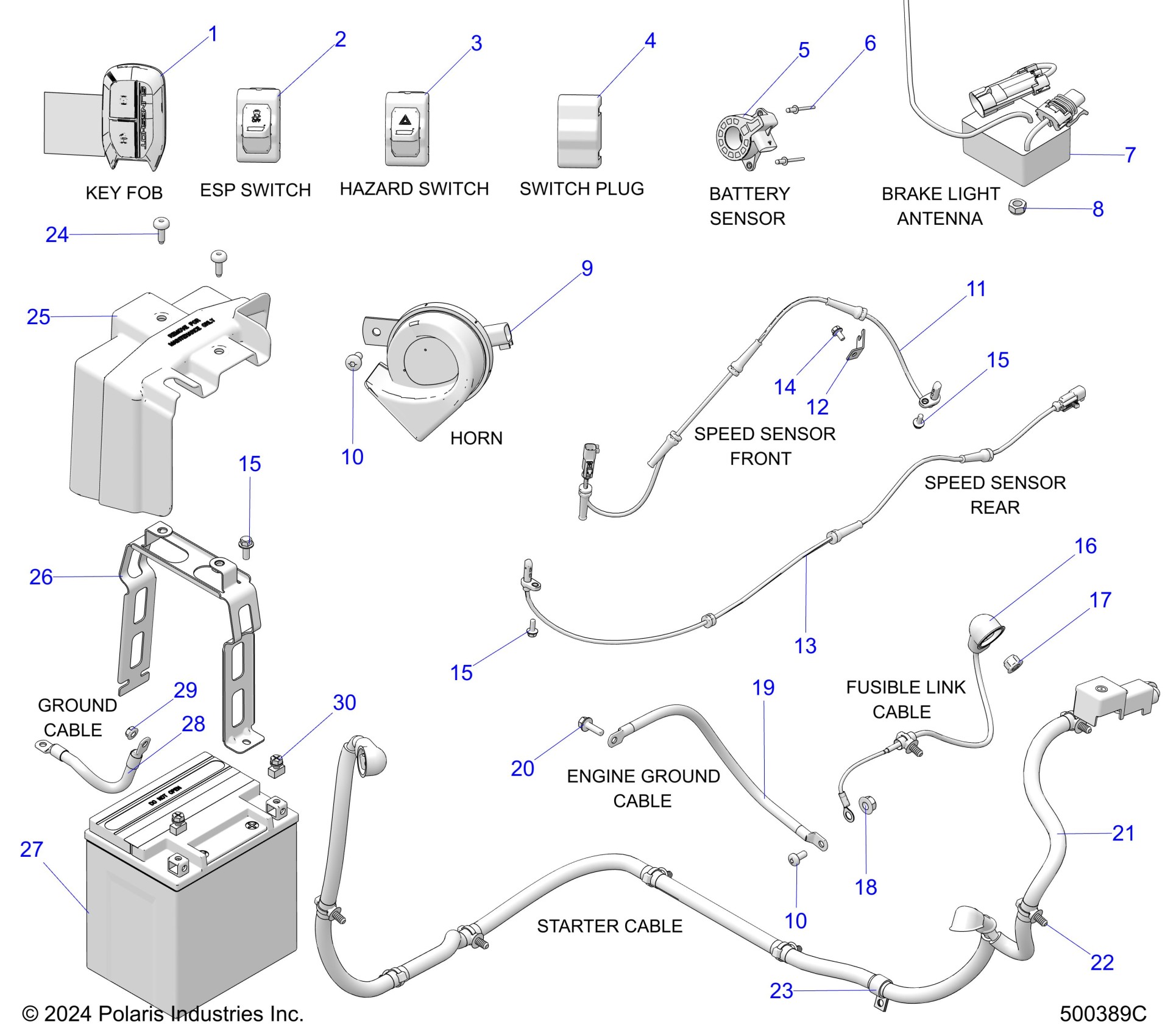

Polaris SLINGSHOT R GRAND TOURING (R01) - T25AAGGB/HB ELECTRICAL, COMPONENTS 2 - T25AAGGB/HB (500389C) Diagram

#

Description
Price

1

KEYFOB-GEN2,NOKEY,2B,V1

4081724

$198.48

1

BATTERY-KEY FOB

4081311

$10.99

2

SWITCH-ESP,SPST,NO,PDL,MOM,B/L

4018411

$116.17

3

SWITCH-HAZARD,SPST,NO,PDL,B/L

4018412

$79.99

4

PLUG-SWITCH,ROCKER

4018508

$28.32

5

SENSOR-BATT CURRENT,DHAB,S125

4082216

$159.99

6

RIVET,(50)

7621336

$1.59

7

ANTENNA-SS,BRAKE LIGHT

4018509

$314.99

8

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

9

HORN-TRUMPET,420HZ,65H,165DEG

4082398

$51.59

10

SCREW-M6X1X14,PN/TX,TRI-LOB

7518914

$3.17

10

SCREW-M6X1X14,PN/TX,TRI-LOB

7518914

$3.17

11

SENSOR, SPEED, WHEEL, FRONT

4013495

$169.99

12

BRACKET MOUNT, WSS KNUCKLE

5256962

$29.99

13

SENSOR, SPEED, WHEEL, REAR

4014078

Unavailable

14

SCREW-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.84

15

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7517770

$2.38

15

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7517770

$2.38

15

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7517770

$2.38

16

CABLE-FUSIBLE LINK,SLG

4082215

$35.71

17

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

18

NUT-HXFLGHD,M8,0600087

7547014

$7.84

19

CABLE-GROUND,ENGINE,4AWG

4080439

$59.99

20

SCREW-HXFL-M6X1.0X20 8.8 ZOD NYL

7518613

$3.97

21

CABLE-STARTER,SLG,4AWG [INCLUDES 22 & 23]

4081908

$154.99

22

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

23

CLAMP-HOSE,.625 DIA VNL COATED

7080880

$5.56

24

SCREW-TXBH-M6x1.0x15 8.8 ZB3 SH

7520011

$2.38

25

SHIELD-HEAT,BATTERY

5454228

$58.08

26

BRKT-BATTERY,STRAP,E-COAT

5264571-329

$44.99

27

BATTERY-30AH,12 VOLT,AGM

4014609

$199.98

28

CABLE-GROUND,4AWG

4081722

$43.65

29

NUT-HXFLGHD, M6, SERRATED

7547270

$3.97

30

K-BATTERY BOLT,14MM [INCLUDES 2 BOLTS, 2 WASHERS, & 2 NUTS]

2208719

$6.46
