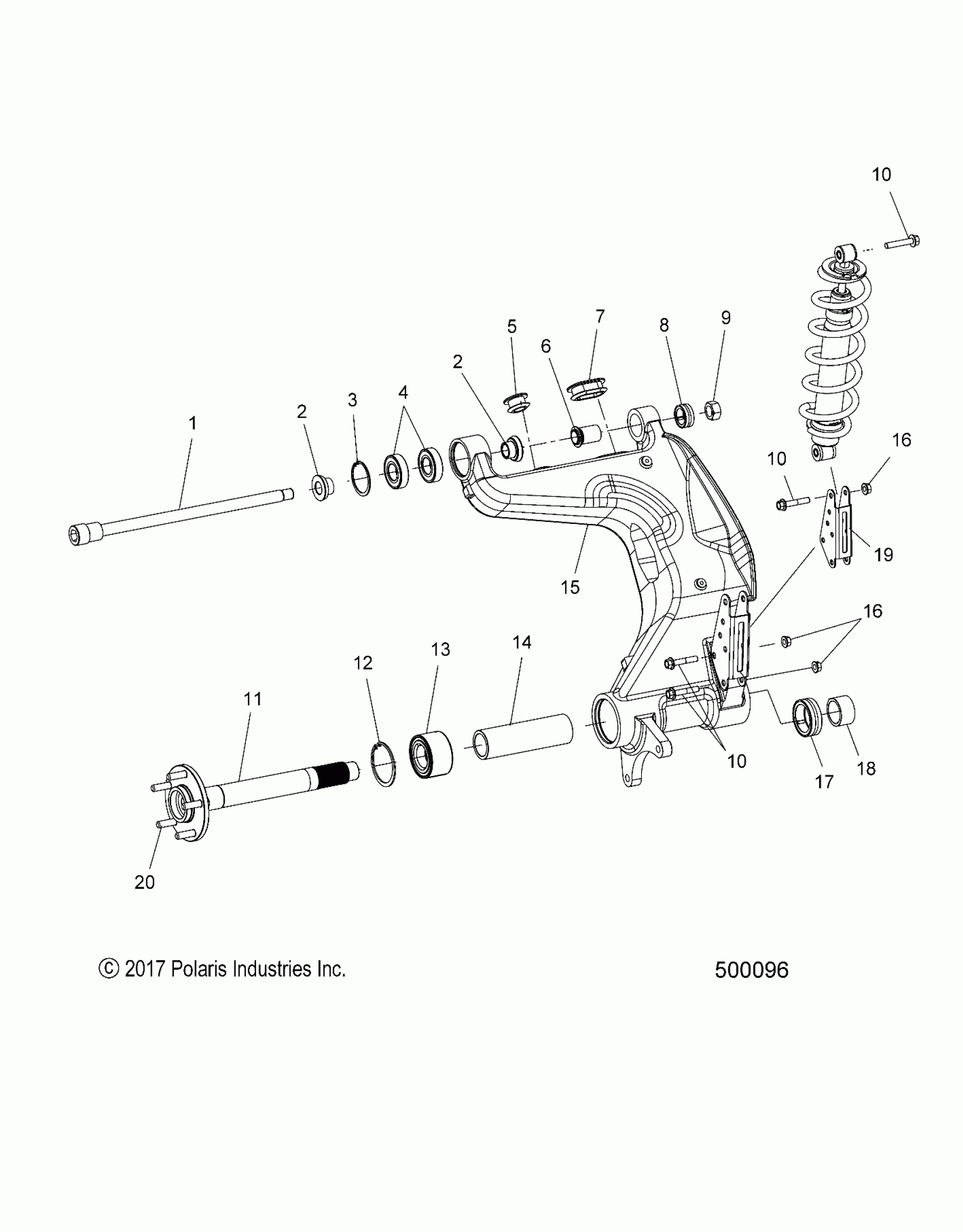

Polaris SLINGSHOT GT LIMITED EDITION (BLACK CRYSTAL) (R05) - T19AAPFAAY/ABY/ACY SUSPENSION, REAR ASM. - T19AAPFAAY/ABY/ACY (500096) Diagram

#

Description
Price

1

SHAFT, PIVOT, HOLLOW

5139316

Unavailable

2

BUSHING, PIVOT, BALL

3514759

Unavailable

2

BUSHING, PIVOT, BALL

3514759

Unavailable

3

RING, RETAINING

7710681

$7.19

4

BEARING, BALL, PIVOT

3514761

Unavailable

5

GROMMET, SWING ARM, SMALL

5414601

Unavailable

6

PIVOT, NEEDLE BUSHING

5137900

Unavailable

7

GROMMET, SWING ARM, LARGE

5414602

Unavailable

8

BEARING, NEEDLE, PIVOT

3514762

Unavailable

9

NUT

7547618

Unavailable

10

SCREW

7520212

$10.39

10

SCREW

7520212

$10.39

10

SCREW

7520212

$10.39

11

ASM., AXLE, REAR

1323435

Unavailable

12

RING, RETAINING

7710693

Unavailable

13

BEARING, WHEEL

3514773

Unavailable

14

SPACER, AXLE, ALUM

5140098

Unavailable

15

K-ASM,SWINGARM,BRIGHT WHITE

2208117-133

Unavailable

16

NUT

7520117

$6.39

16

NUT

7520117

$6.39

17

BEARING, REAR, SPROCKET

3514760

Unavailable

18

BUSHING, NEEDLE, AXLE

5138040

Unavailable

19

REAR FENDER,SHOCK CLEVIS,BLK

5264024-266

Unavailable

20

STUD

7519649

Unavailable
