- SLINGSHOT GT LIMITED EDITION (BLACK CRYSTAL) (R05) - T19AAPFAAY/ABY/ACY
BODY, DASH ASM. - T19AAPFAAY/ABY/ACY (500087)

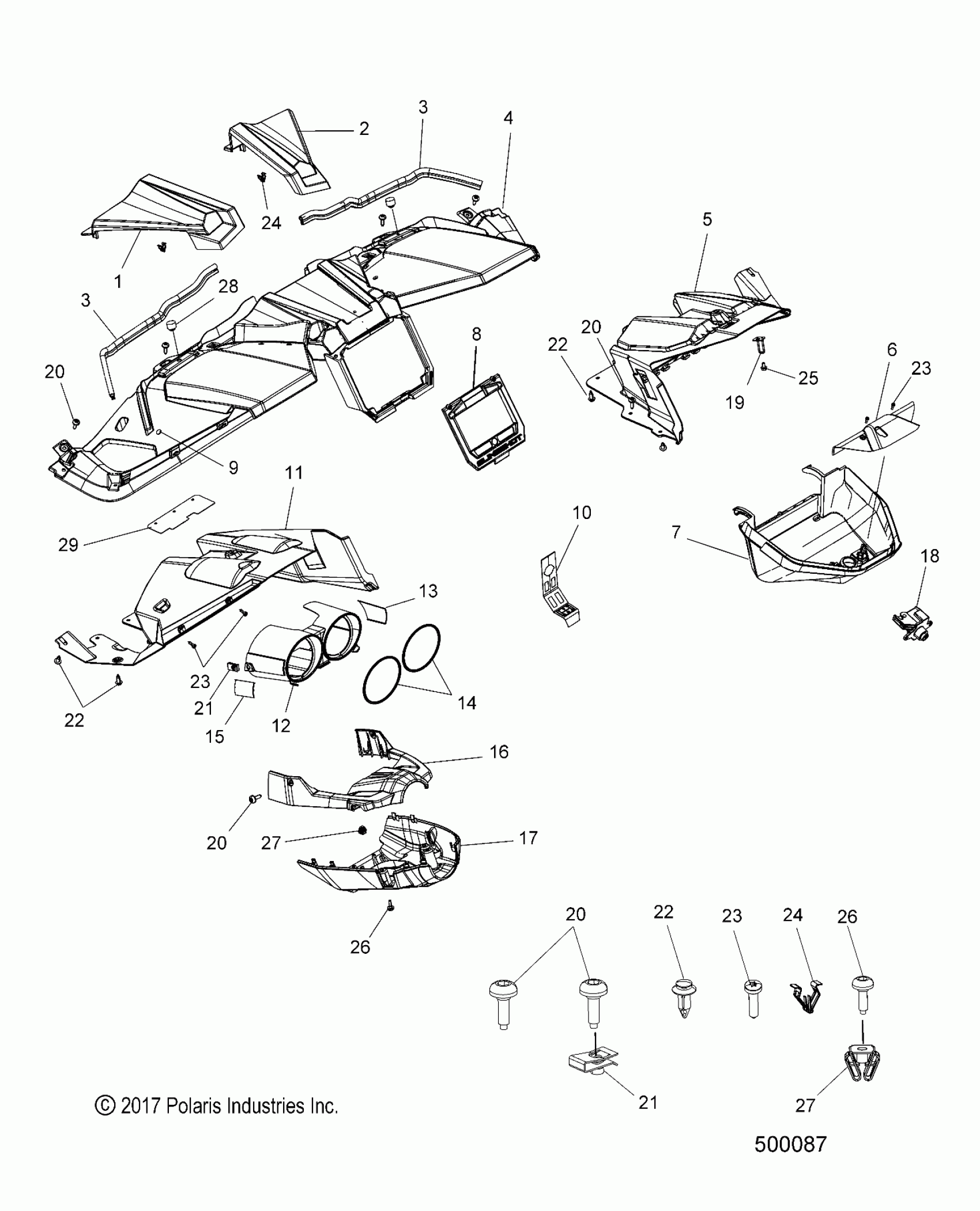

Polaris SLINGSHOT GT LIMITED EDITION (BLACK CRYSTAL) (R05) - T19AAPFAAY/ABY/ACY BODY, DASH ASM. - T19AAPFAAY/ABY/ACY (500087) Diagram
#
1
VISOR-CENTER,LH, BLK CRYSTAL
5450039-677
Unavailable
2
VISOR-CENTER,RH, BLK CRYSTAL
5450040-677
Unavailable
3
SEAL, BULB, HOOD
5522116
Unavailable
3
SEAL, BULB, HOOD
5522116
Unavailable
4
VISOR, MAIN
5454958
Unavailable
5
GASKET, STRIP FOAM
5814115
Unavailable
5
VISOR, CLOSEOUT, RH [ALSO ORDER GASKET]
5454957
Unavailable
6
COVER, LATCH
5451328
Unavailable
7
DECAL, CARGO LIMIT, 5LBS
7177896
Unavailable
7
DOOR, GLOVEBOX
5452319
Unavailable
8
TRIM-BEZEL, RIDE COMMAND, BLK
5141361-266
Unavailable
9
PLUG-WINDSHLD MNT
7662233
Unavailable
10
TRIM, CONSOLE, LOWER, RIDE COMMAND
7186346
Unavailable
11
VISOR, CLOSEOUT, LH
5454890
Unavailable
12
ASM., GAUGE, W/BEZELS [INCL. 13-15]
1021731
Unavailable
13
TRIM, GAUGE, LH
7179154
Unavailable
14
TRIM, GAUGE, BEZEL
7179153
Unavailable
15
TRIM, GAUGE, RH
7179155
Unavailable
16
CVR-COLUMN,UPPER, RIDE COMMAND
5454198
Unavailable
17
COVER, COLUMN, LOWER
5452318
Unavailable
18
LOCK [SEE ELECTRICAL, IGNITION/LOCKSET]
-------
Unavailable
19
BRKT., GLOVE BOX STRIKER
5259614
Unavailable
20
SCREW, M6 TXBH
7520011
Unavailable
20
SCREW, M6 TXBH
7520011
Unavailable
20
SCREW, M6 TXBH
7520011
Unavailable
20
SCREW, M6 TXBH
7520011
Unavailable
21
CLIP-U SPEED NUT
7081305
Unavailable
21
CLIP-U SPEED NUT
7081305
Unavailable
22
RIVET, TUFLOK
7661855
Unavailable
22
RIVET, TUFLOK
7661855
Unavailable
22
RIVET, TUFLOK
7661855
Unavailable
23
SCREW #10 PN
7512026
Unavailable
23
SCREW #10 PN
7512026
Unavailable
23
SCREW #10 PN
7512026
Unavailable
24
CLIP, TINNERMAN
7670136
$2.39
24
CLIP, TINNERMAN
7670136
$2.39
25
SCREW
7517704
$7.19
26
SCREW, M4 TXBH
7518518
$1.59
26
SCREW, M4 TXBH
7518518
$1.59
27
NUT, PAL, M4
7547324
$3.99
27
NUT, PAL, M4
7547324
$3.99
28
BUMPER-RUBBER,.62 STEALTH
5411435
$3.19
29
SHIELD-STEERING COLUMN
5814744
Unavailable
