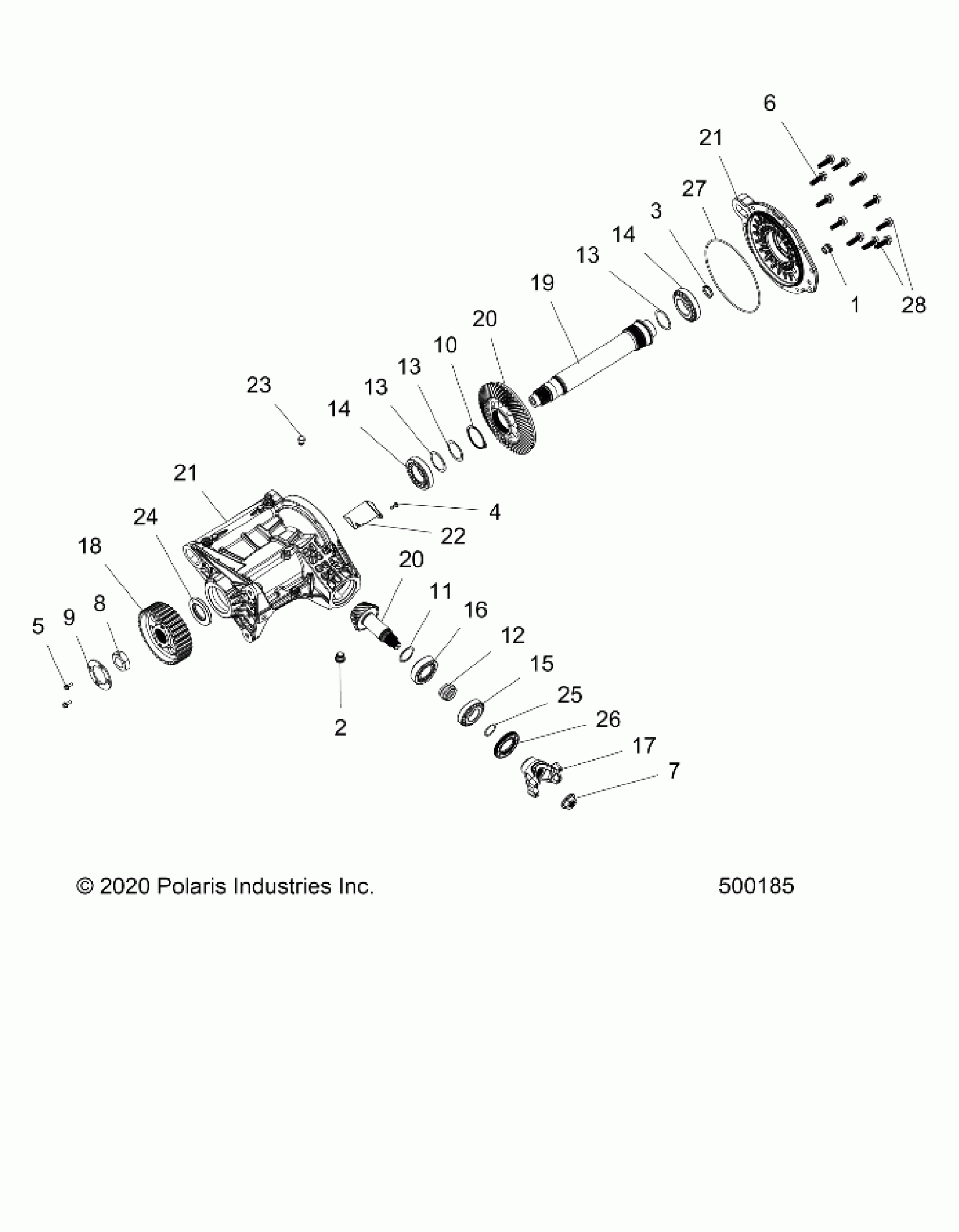

Polaris SLINGSHOT GT AUTODRIVE (R02) - T20AAGHD DRIVE TRAIN, RIGHT ANGLE GEARCASE ASM. - 1333968 (500185) Diagram

#

Description
Price

-

ASM-GEARCASE,RIGHT ANGLE [INCL. 1-28]

1333968

$2,799.99

1

PLUG, M18 X 1.5

3234755

$27.78

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

3

PLUG, EXPANSION

3236190

$8.99

4

SCREW, 6-LOBE, PAN HD M6 X 1 X 16

3234309

$7.14

5

BOLT

7519752

$34.99

6

SCREW, HEX FLANGE HEAD, M10 X 1.5 X 35

7520792

$8.99

7

NUT, HEX, M20 X 1.5

7547656

$31.75

8

NUT, JAM

7547655

$49.99

9

WASHER, LOCK PLATE

7556742

$31.75

10

RING-RETAIN,VSH-237(130298)

3235216

$10.32

11

SHIM, 1.776 OD X 1.452 ID

5263706

$94.99

12

SLEEVE, CRUSH

5138157

Unavailable

13

SHIM, 56.6 OD X 45.72 ID

5264019

$149.99

13

SHIM, 56.6 OD X 45.72 ID

5264019

$149.99

13

SHIM, 56.6 OD X 45.72 ID

5264019

$149.99

14

BEARING, TAPERED ROLLER

3514781

$85.70

14

BEARING, TAPERED ROLLER

3514781

$85.70

15

BEARING, TAPERED ROLLER

3514782

$66.65

16

BEARING, TAPERED, ROLLER 32207JR

3515058

$71.41

17

YOKE, 26T

1334007

$295.30

18

SPROCKET, 35T

1333749

$358.24

19

SHAFT, OUTPUT

5140957

$222.68

20

SUBASSY, BEVEL GEAR SET 17T/48T

1333967

$459.99

20

SUBASSY, BEVEL GEAR SET 17T/48T

1333967

$459.99

21

SUBASSEMBLY, CASE/COVER, LINE BORE

1333985

$284.99

21

SUBASSEMBLY, CASE/COVER, LINE BORE

1333985

$284.99

22

DEFLECTOR, OIL

1333103

$48.56

23

CAP, VENT

5138161

$28.32

24

SEAL, DUAL LIP

3610206

$35.71

25

O-RING

3610207

$5.56

26

SEAL, TRIPLE LIP, 45 X 75 X 8 (VITON)

3610303

Unavailable

27

O-RING, 2-265

3610300

$43.63

28

SCREW, HEX FLANGE HEAD M10 X 1.5 X 35

7521254

$6.99
