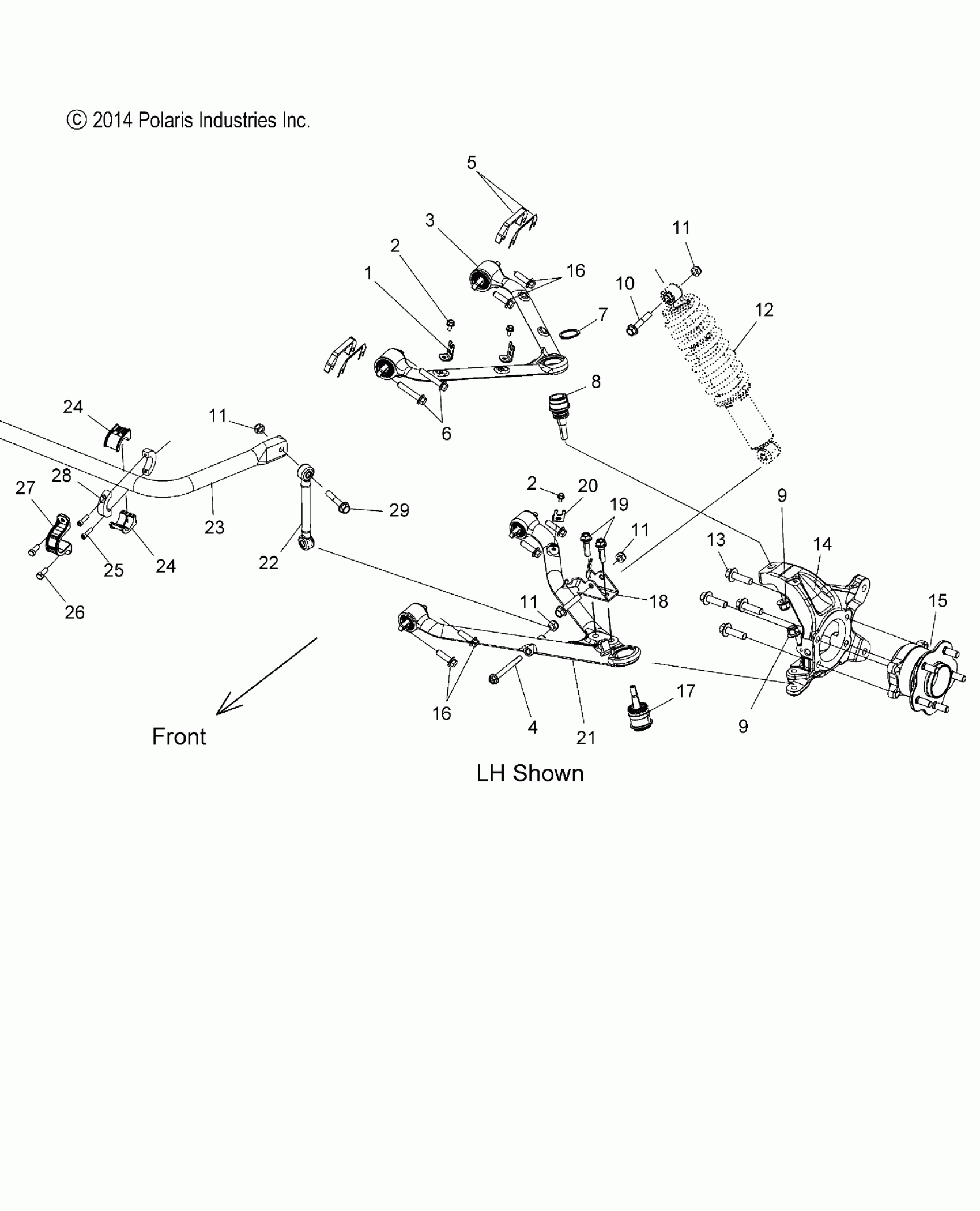

Polaris SLINGSHOT ALL OPTIONS - T15AAS/AAP SUSPENSION, FRONT ASM. - T15AAS/AAP ALL OPTIONS (49SLINGSHOTSUSPFR14SLING) Diagram

#

Description
Price

1

MOUNT, CABLE

5258502

$39.99

2

SCREW

7517704

$7.84

2

SCREW

7517704

$7.84

3

ASM., ARM, CONTROL, UPPER, RH

1020195

$289.99

3

ASM., ARM, CONTROL, UPPER, LH [INCL. 1,2,7,8]

1020182

$289.99

4

SCREW

7519016

$6.35

5

SHIM, ALIGNMENT, 1MM

5260616

Unavailable

5

SHIM, ALIGNMENT, 20MM

5260618

$79.03

5

SHIM, ALIGNMENT, 10MM

5260617

Unavailable

6

SCREW

7518941

$3.97

7

RING, RETAINING

7710716

$8.08

8

BALL JOINT, TAPERED

7061188

Unavailable

9

NUT

7547334

$4.76

9

NUT

7547334

$4.76

10

SCREW

7519726

$7.14

11

NUT

7547746

$2.38

11

NUT

7547746

$2.38

11

NUT

7547746

$2.38

11

NUT

7547746

$2.38

12

ASM., SHOCK, FRONT [SEE SUSPENSION, SHOCK ABSORBER PAGE]

----

Unavailable

13

SCREW

7520003

$23.81

14

KNUCKLE, LH

5139939

$396.97

14

KNUCKLE, RH

5139940

$396.97

15

HUB, FRONT

3514758

$194.99

16

SCREW

7518644

$4.76

16

SCREW

7518644

$4.76

17

BALL JOINT, TAPERED, LWR TENS

7061202

Unavailable

18

MOUNT, SHOCK

5258500

$32.37

19

SCREW

7518878

$4.76

20

MOUNT, BRAKE LINE

5258501

$4.84

21

ASM., ARM, CONTROL, LOWER, LH [INCL. 2,4,7,17-20]

1020183

$319.99

21

ASM., ARM, CONTROL, LOWER, RH [INCL. 2,4,7,17-20]

1020184

$319.99

22

ASM., LINKAGE, STABILIZER

1543385

$144.99

23

BAR, ANTI-ROLL, E-COAT

5337707-329

$349.99

24

BUSHING, SWAY BAR, 1.25 IN.

5451257

$7.14

24

BUSHING, SWAY BAR, 1.25 IN.

5451257

$7.14

25

SCREW

7518995

$5.56

26

SCREW

7520118

$3.97

27

BRKT., CAP, SWAY BAR

5632497

$40.46

28

CLAMP, SWAY BAR RETAINER, BOTTOM

5632514

$32.37

28

CLAMP, SWAY BAR RETAINER, TOP

5632513

$32.37

29

SCREW

7520013

$23.81
