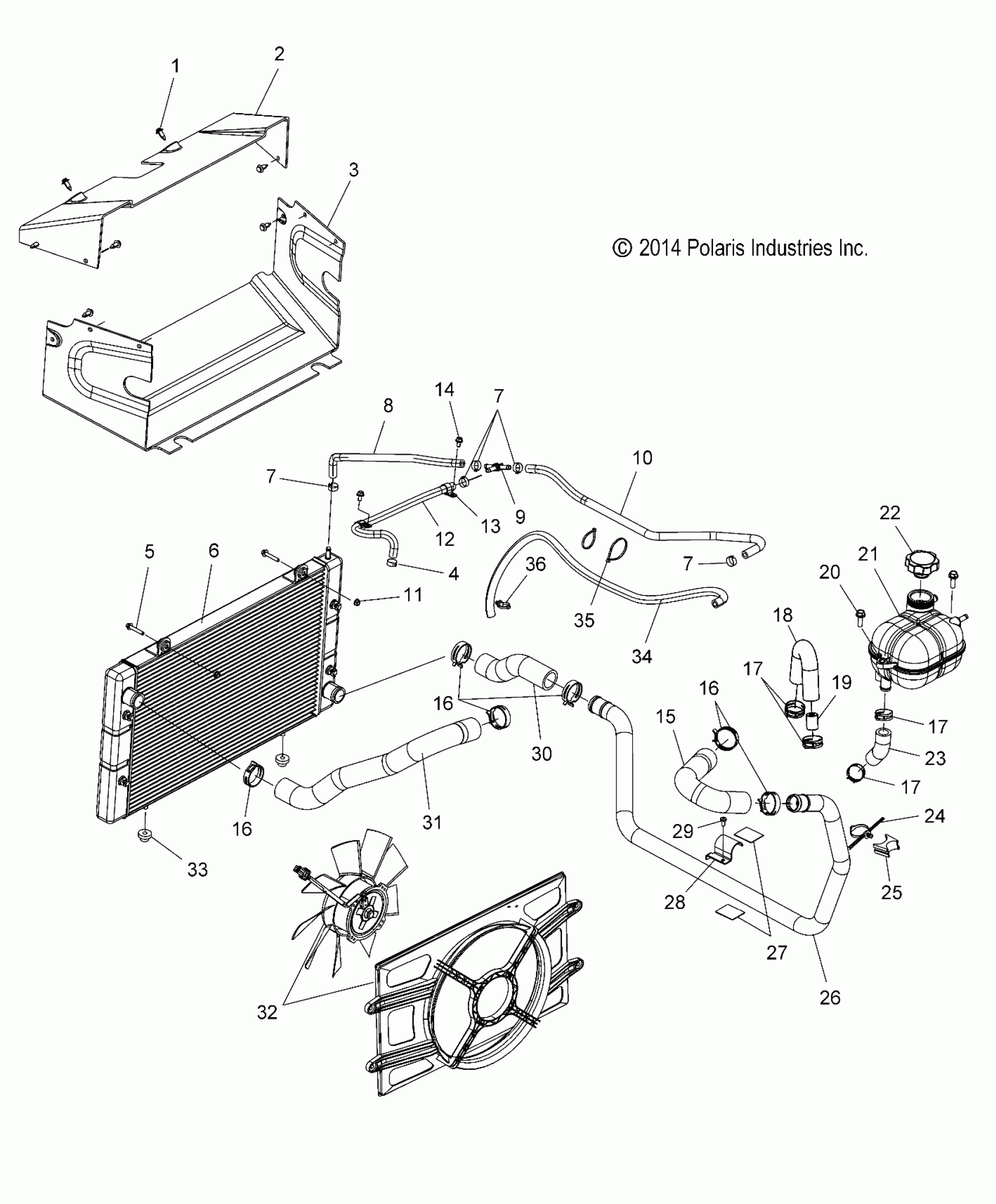

Polaris SLINGSHOT ALL OPTIONS - T15AAS/AAP ENGINE, COOLING SYSTEM - T15AAS/AAP ALL OPTIONS (49SLINGSHOTCOOLING14SLING) Diagram

#

Description
Price

1

RIVET, TUFFLOK

7661855

$1.49

2

SHROUD, RADIATOR, UPPER

5450127

Unavailable

3

SHROUD, RADIATOR, LOWER

5450128

Unavailable

4

CLAMP, HOSE, .625 SS

7080476

$6.39

5

SCREW

7516827

$6.39

6

RADIATOR

1240731

Unavailable

7

CLAMP, HOSE, SPRING

7082286

Unavailable

7

CLAMP, HOSE, SPRING

7082286

Unavailable

7

CLAMP, HOSE, SPRING

7082286

Unavailable

8

HOSE, VENT, RADIATOR

5415103

Unavailable

9

T-CONNECTOR

5439574

Unavailable

10

HOSE, VENT, SURGE

5415101

Unavailable

11

NUT

7547270

$3.99

12

HOSE, VENT, ENGINE

5415102

Unavailable

13

Clamp, Hose

7080880

$5.59

14

SCREW

7517704

$7.19

15

LINE, RETURN, COOLANT, REAR

5414432

Unavailable

16

CLAMP, CTB 46

7081844

Unavailable

16

CLAMP, CTB 46

7081844

Unavailable

16

CLAMP, CTB 46

7081844

Unavailable

17

CLAMP

7080842

$7.19

17

CLAMP

7080842

$7.19

17

CLAMP

7080842

$7.19

18

HOSE, CORE, BYPASS

5414445

Unavailable

19

ORIFICE, HEATER BYPASS

5450024

Unavailable

20

SCREW

7518576

$3.19

21

TANK, SURGE

5439572

Unavailable

22

CAP, SURGE TANK

5439573

Unavailable

23

LINE, SURGE

5414463

Unavailable

24

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

25

SPACER, COOLANT TUBE MNT.

5414568

Unavailable

26

TUBE, COOLANT, RETURN

5337110

Unavailable

27

MOUNT, PAD, COOLING

5139611

Unavailable

28

BRKT. COOLANT TUBE

5256835

Unavailable

29

Screw

7517770

$2.39

30

LINE, RETURN, COOLANT, FRT

5414482

Unavailable

31

HOSE, ENGINE OUTLET

5414431

Unavailable

32

ASM., FAN W/SHROUD

2880965

Unavailable

33

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

34

HOSE- OVERFLOW, SURGE

5415514

Unavailable

35

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

36

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79
