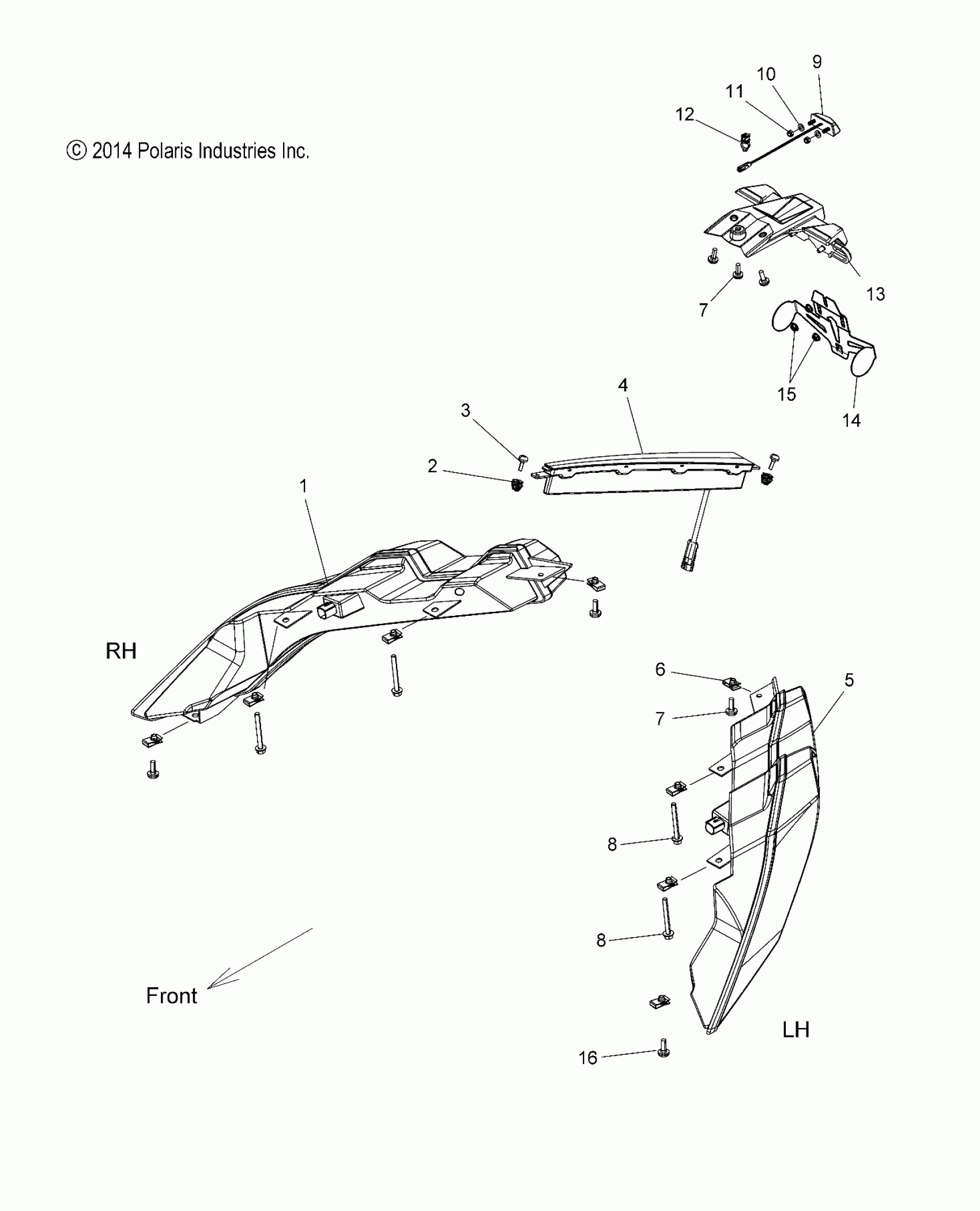

Polaris SLINGSHOT ALL OPTIONS - T15AAS/AAP ELECTRICAL, REAR LIGHTING - T15AAS/AAP ALL OPTIONS (49SLINGSHOTLIGHTRR14SLING) Diagram

#

Description
Price

1

ASM., RH, REAR,TAILLIGHT/TURN/STOP/RVRS. LIGHT

2411871

$571.25

2

NUT, PAL NUT, M4

7547324

$3.97

3

SCREW

7518518

$1.59

4

LAMP-CNTR HI MNTD STO,INTL

2413294

$217.84

5

ASM., LH, REAR,TAILLIGHT/TURN/STOP/RVRS. LIGHT

2411870

$551.89

6

CLIP-U SPEED NUT

7081305

$1.98

7

SCREW

7520011

$2.38

7

SCREW

7520011

$2.38

8

SCREW

7519171

$5.56

8

SCREW

7519171

$5.56

9

LAMP-LICENSE PLATE,EU/US

2412682

$82.29

10

WASHER

7556271

$1.19

11

NUT-M5X.8,HX NYL-Y

7546601

$1.19

12

CLIP, HARNESS

7081967

$10.32

13

MOUNT, LICENSE PLATE

5439679

$36.41

14

BRKT., LICENSE PLATE, FBLK

5255399-463

$72.84

15

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.19

16

SCREW, M5, TFHXFLG

7518773

$4.76
