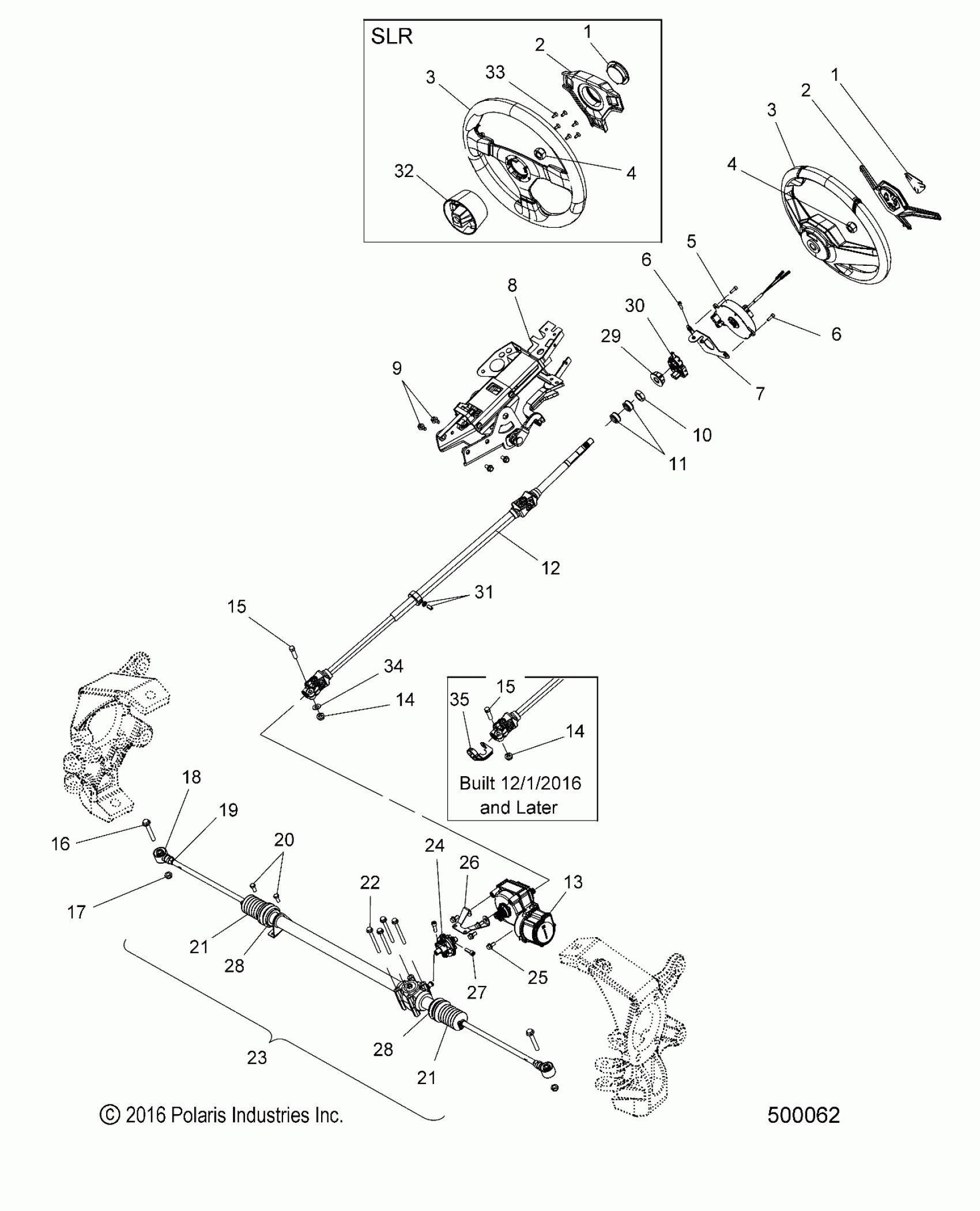

Polaris SLINGSHOT ALL OPTIONS (R10) - T17AAPF/AARF/AASF STEERING, STEERING ASM. - T17AAPF/AARF/AASF ALL OPTIONS (500062) Diagram

#

Description
Price

1

BADGE, SLINGSHOT [AAPF/AASF]

7179350

Unavailable

1

ASM-BUTTON, HORN, SPARCO {SLR]

2413648

Unavailable

1

BADGE, SLINGSHOT [AAPF/AASF]

7179350

Unavailable

1

ASM-BUTTON, HORN, SPARCO {SLR]

2413648

Unavailable

2

PAD, HORN [AAPF/AASF]

5451358

Unavailable

2

PAD-STEERING, SLR [SLR ONLY][BUILT TO 5/2/16]

5415964

Unavailable

2

PAD-STEERING, SLR, BLK [SLR ONLY][BUILT FROM 5/02/16]

5415964-070

Unavailable

2

PAD, HORN [AAPF/AASF]

5451358

Unavailable

2

PAD-STEERING, SLR [SLR ONLY][BUILT TO 5/2/16]

5415964

Unavailable

2

PAD-STEERING, SLR, BLK [SLR ONLY][BUILT FROM 5/02/16]

5415964-070

Unavailable

3

WHEEL, STEERING [AAPF/AASF]

1824215

Unavailable

3

WHEEL-STEERING,SLR [AARF ONLY]

1824520

Unavailable

3

WHEEL, STEERING [AAPF/AASF]

1824215

Unavailable

3

WHEEL-STEERING,SLR [AARF ONLY]

1824520

Unavailable

4

NUT

7547506

$4.39

4

NUT

7547506

$4.39

5

CLOCK SPRING

4016020

Unavailable

6

SCREW

7518811

Unavailable

6

SCREW

7518811

Unavailable

7

BRKT., CLOCK SPRING, E-COAT

1019452-329

Unavailable

8

ASM., STEERING COLUMN

1824398

Unavailable

9

SCREW

7519181

$5.59

10

NUT

7547668

$7.19

11

BUSHING-STEERING

7556675

$14.95

12

SHAFT, STEERING, EPS, SCTSS

1824551

Unavailable

13

ASM., POWER STEERING

2413677

Unavailable

14

NUT [BUILT 11/30/2016 AND BEFORE]

7547313

$1.49

14

NUT [BUILT 12/01/2016 AND LATER]

7547039

Unavailable

15

SCREW [BUILT 11/30/2016 AND BEFORE]

7519994

Unavailable

15

SCREW [BUILT 12/01/2016 AND LATER]

7520722

Unavailable

16

SCREW

7518291

$3.19

17

NUT, NYL

7547746

$2.39

18

ROD END

7061224

Unavailable

19

JAM NUT

7547028

$2.39

20

Screw

7518097

$3.99

21

BOOT, RACK

5412013

$55.99

21

BOOT, RACK

5412013

$55.99

22

SCREW

7517792

$2.39

23

RACK, STEERING

1824432

Unavailable

24

ASM., COUPLING, FLEX, EPS

1824415

Unavailable

25

BOLT

7518558

$3.99

26

BRKT., EPS, STIFFENER

5262663

Unavailable

27

SCREW

7519727

$10.39

28

CLAMP, BOOT, LARGE

7080979

$5.59

28

CLAMP, BOOT, LARGE

7080979

$5.59

29

CAM, TURN SIGNAL

5452812

Unavailable

30

SENSOR, ANGLE, STEERING [SEE ELECTRICAL, COMPONENTS PG.]

-------

Unavailable

31

SCREW-SET, M8

7520517

Unavailable

31

NUT-HEX

7520198

Unavailable

32

ADAPTOR-HUB, STEERING WHEEL

5633712

Unavailable

33

SCREW

7520731

$3.19

34

WASHER [BUILT 11/30/2016 AND BEFORE]

7556099

$1.59

35

SLEEVE-EPS SHAFT ASM. [BUILT 12/01/2016 AND LATER]

5454206

$6.39
