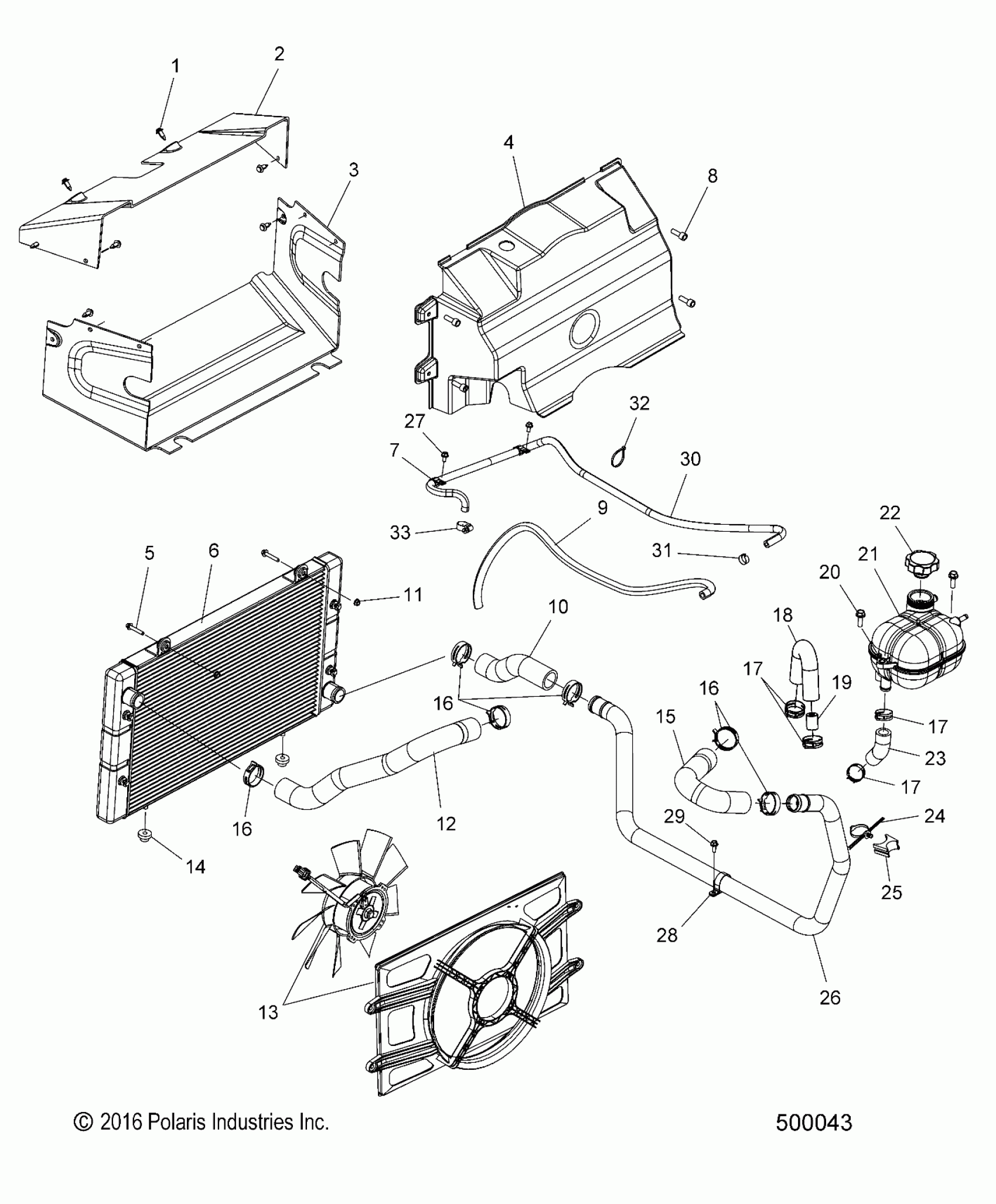

Polaris SLINGSHOT ALL OPTIONS (R10) - T17AAPF/AARF/AASF ENGINE, COOLING SYSTEM - T17AAPF/AARF/AASF ALL OPTIONS (500043) Diagram

#

Description
Price

1

RIVET, TUFFLOK

7661855

$1.49

2

SHROUD, RADIATOR, UPPER

5450127

Unavailable

3

SHROUD, RADIATOR, LOWER

5453242

Unavailable

4

SHROUD, RADIATOR, REAR

5453259

Unavailable

5

SCREW

7519054

Unavailable

6

RADIATOR

1241022

Unavailable

7

CLAMP-HOSE

7080880

$5.59

8

SCREW

7520490

Unavailable

9

HOSE-OVERFLOW, SURGE

5415514

Unavailable

10

LINE, RETURN, COOLANT, FRONT [BUILT TO 2/27/2017]

5415952

Unavailable

10

LINE, RETURN, COOLANT, FRONT [BUILT FROM 2/27/2017]

5416272

Unavailable

11

NUT, HXFLG

7547270

$3.99

12

HOSE, ENGINE OUTLET [BUILT TO 3/20/2017]

5414431

Unavailable

12

HOSE-ENGINE OUTLET [BUILT FROM 3/20/2017]

5416270

Unavailable

13

ASM., FAN W/SHROUD

1241091

Unavailable

14

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

15

LINE, RETURN, COOLANT, REAR [BUILT TO 3/20/2017]

5414432

Unavailable

15

LINE, RETURN, COOLANT, REAR [BUILT FROM 3/20/2017]

5416271

Unavailable

16

CLAMP, CTB 46 [BUILT TO 2/01/2017]

7081844

Unavailable

16

CLAMP-CTB44 [BUILT FROM 2/01/2017]

7082269

Unavailable

16

CLAMP, CTB 46 [BUILT TO 2/01/2017]

7081844

Unavailable

16

CLAMP-CTB44 [BUILT FROM 2/01/2017]

7082269

Unavailable

16

CLAMP, CTB 46 [BUILT TO 2/01/2017]

7081844

Unavailable

16

CLAMP-CTB44 [BUILT FROM 2/01/2017]

7082269

Unavailable

17

CLAMP

7080842

$7.19

17

CLAMP

7080842

$7.19

17

CLAMP

7080842

$7.19

18

HOSE, CORE, BYPASS

5414445

Unavailable

19

ORIFICE, HEATER BYPASS

5450024

Unavailable

20

SCREW

7518576

$3.19

21

TANK, SURGE

5439572

Unavailable

22

CAP, SURGE TANK

5439573

Unavailable

23

LINE, SURGE [BUILT TO 3/20/2017]

5414463

Unavailable

23

LINE, SURGE [BUILT FROM 3/20/2017]

5416273

Unavailable

24

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

25

SPACER, COOLANT TUBE MNT.

5414568

Unavailable

26

TUBE, COOLANT, RETURN [BUILT TO 2/01/2017]

5339646

Unavailable

26

TUBE, COOLANT, RETURN [BUILT FROM 2/01/2017]

5340299

Unavailable

27

SCREW-HXFL

7517704

$7.19

28

CLAMP-HOSE

7080807

$9.59

29

Screw

7517770

$2.39

30

HOSE-VENT, SURGE [BUILT TO 2/27/2017]

5415832

Unavailable

30

HOSE-VENT, SURGE [BUILT FROM 2/27/2017]

5416268

Unavailable

31

CLAMP-CTB15

7082286

Unavailable

32

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

33

CLAMP-HOSE, .625 SS

7080476

$6.39
