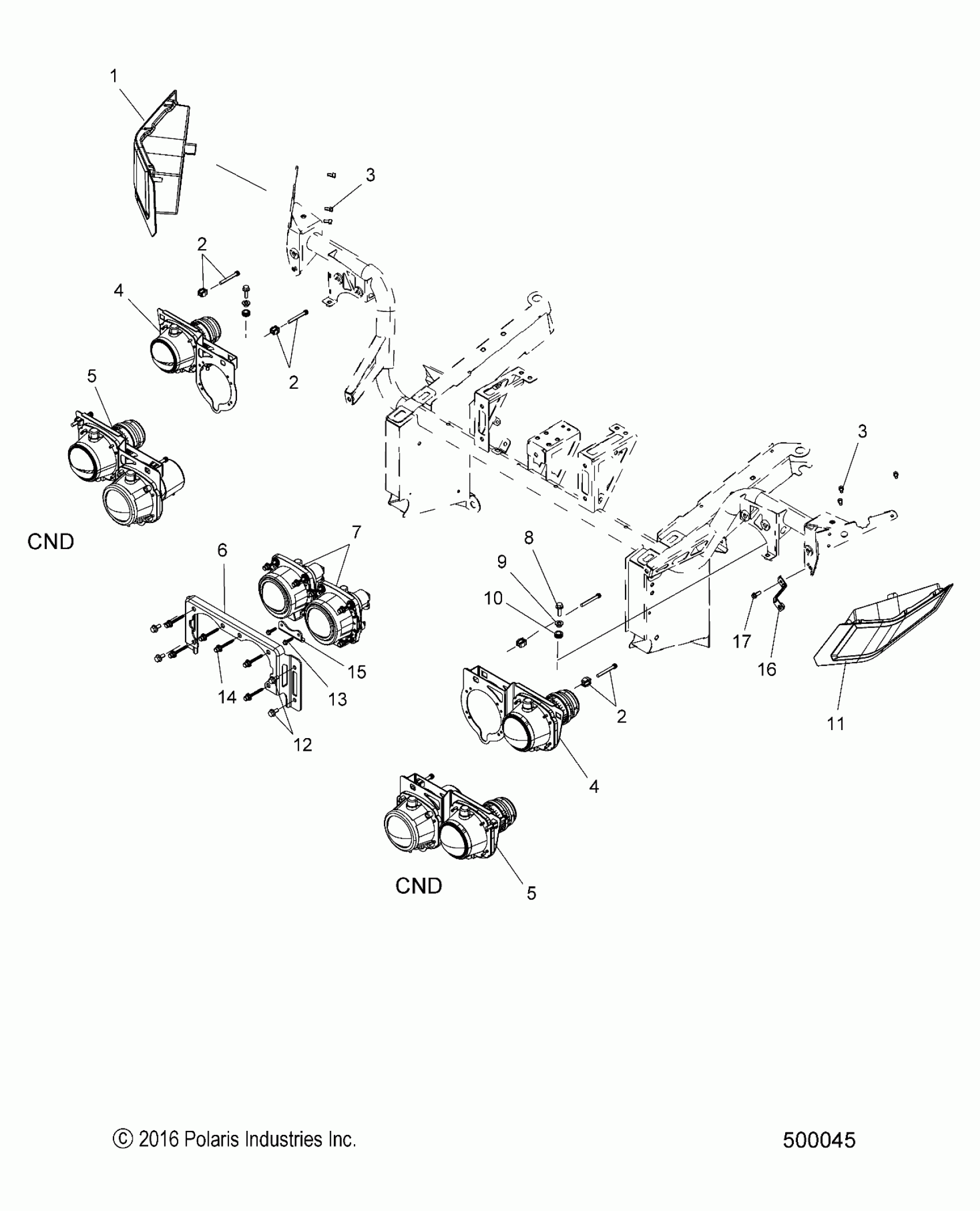

Polaris SLINGSHOT ALL OPTIONS (R10) - T17AAPF/AARF/AASF ELECTRICAL, FORWARD LIGHTING - T17AAPF/AARF/AASF ALL OPTIONS (500045) Diagram

SIGNAL, TURN, FRONT, RH

2411873

$284.99

SCREW, ADJUSTER, HEADLIGHT [INCL. SCREW AND ADJUSTER]

7520395

$10.32

SCREW, ADJUSTER, HEADLIGHT [INCL. SCREW AND ADJUSTER]

7520395

$10.32

SCREW, ADJUSTER, HEADLIGHT [INCL. SCREW AND ADJUSTER]

7520395

$10.32

SCREW

7517725

$4.76

SCREW

7517725

$4.76

BULB, HALOGEN, H3, 55W

4015135

$28.32

ASM., HEADLIGHT OUTER, LH

2413248

$164.99

ASM., HEADLIGHT OUTER, RH

2413249

$164.99

BULB, HALOGEN, H3, 55W

4015135

$28.32

ASM., HEADLIGHT OUTER, LH

2413248

$164.99

ASM., HEADLIGHT OUTER, RH

2413249

$164.99

POSITION BULB, 5W

4012265

$4.83

BULB, HALOGEN, H3, 55W

4015135

$28.32

ASM., HEADLIGHT OUTER, LH, CND [CANADA ONLY]

2413635

$299.99

ASM., HEADLIGHT OUTER, RH, CND [CANADA ONLY]

2413636

$299.99

POSITION BULB, 5W

4012265

$4.83

BULB, HALOGEN, H3, 55W

4015135

$28.32

ASM., HEADLIGHT OUTER, LH, CND [CANADA ONLY]

2413635

$299.99

ASM., HEADLIGHT OUTER, RH, CND [CANADA ONLY]

2413636

$299.99

BRKT., MOUNT, HEADLIGHT, CENTER

5261878

$68.79

BULB, HALOGEN, H9 [SVC]

4015942

$40.46

ASM-HEADLIGHT, HI/LOW, 90MM [INCL. 6]

1022009

Unavailable

BOLT

7518613

$3.97

SLEEVE, SHOULDERED, M6

5134082

$3.17

GROMMET

5412265

Unavailable

SIGNAL, TURN, FRONT, LH

2411872

$284.99

Screw

7517770

$2.38

SCREW

7520413

$3.97

SCREW, HEADLIGHT ADJ., CENTER

7520381

$5.56

BRKT., LINK, HEADLIGHT

5262144

$5.65
