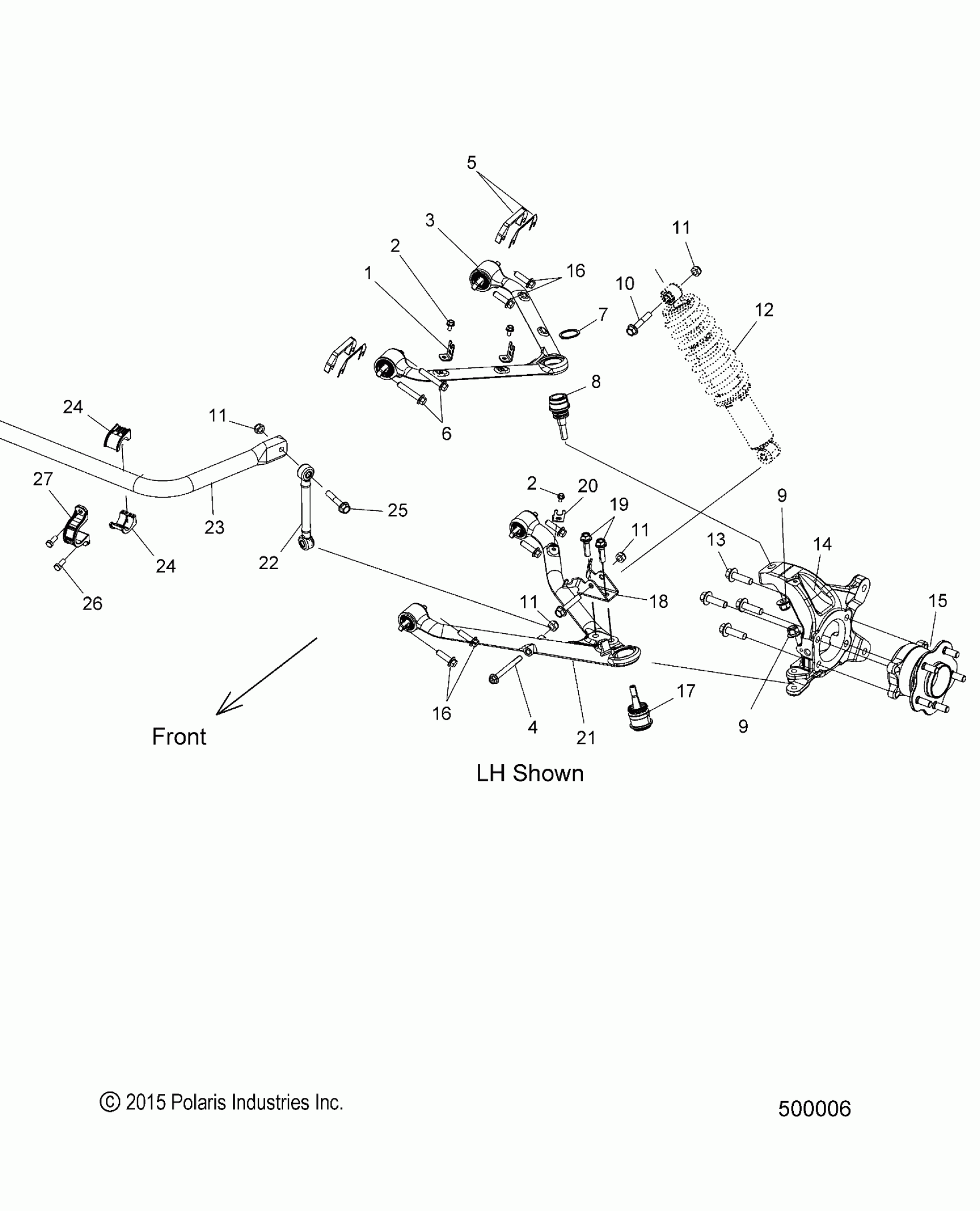

Polaris SLINGSHOT ALL OPTIONS (R10) - T16AAS/AAP SUSPENSION, FRONT ASM. - T16AAS/AAP ALL OPTIONS (500006) Diagram

#

Description
Price

1

MOUNT, CABLE

5258502

Unavailable

2

SCREW

7517704

$7.19

2

SCREW

7517704

$7.19

3

ASM., ARM, CONTROL, UPPER, RH [INCL. 1,2,7,8]

1020195

Unavailable

3

ASM., ARM, CONTROL, UPPER, LH [INCL. 1,2,7,8]

1020182

Unavailable

3

ASM., ARM, CONTROL, UPPER, LH, RED [INCL. 1,2,7,8]

1020182-293

Unavailable

3

ASM., ARM, CONTROL, UPPER, RH, RED [INCL. 1,2,7,8]

1020195-293

Unavailable

3

ASM., ARM, CONTROL, UPPER, LH, BRIGHT WHITE [INCL. 1,2,7,8]

1020182-133

Unavailable

3

ASM., ARM, CONTROL, UPPER, RH, BRIGHT WHITE [INCL. 1,2,7,8]

1020195-133

Unavailable

4

SCREW

7519016

$6.35

5

SHIM, ALIGNMENT, 1MM

5260616

Unavailable

5

SHIM, ALIGNMENT, 10MM

5262689

Unavailable

5

SHIM, ALIGNMENT, 20MM [IF BUILT BEFORE 2/01/16]

5260618

Unavailable

5

SHIM, ALIGNMENT, 20MM [IF BUILT 2/01/16 AND AFTER]

5262690

Unavailable

6

SCREW

7518941

$3.99

7

RING, RETAINING

7710716

$7.19

8

BALL JOINT, TAPERED

7061188

Unavailable

9

NUT

7547334

$4.79

9

NUT

7547334

$4.79

10

SCREW

7519726

Unavailable

11

NUT

7547746

$2.39

11

NUT

7547746

$2.39

11

NUT

7547746

$2.39

11

NUT

7547746

$2.39

12

ASM., SHOCK, FRONT [SEE SUSPENSION, SHOCK ABSORBER PAGE]

-------

Unavailable

13

SCREW

7520003

$23.99

14

KNUCKLE, LH

5139939

Unavailable

14

KNUCKLE, RH

5139940

Unavailable

15

HUB, FRONT

3514758

Unavailable

16

SCREW

7518644

$4.79

16

SCREW

7518644

$4.79

17

BALL JOINT, TAPERED, LWR TENS

7061202

Unavailable

18

MOUNT, SHOCK

5258500

Unavailable

19

SCREW

7518878

Unavailable

20

MOUNT, BRAKE LINE

5258501

Unavailable

21

ASM., ARM, CONTROL, LOWER, LH [INCL. 2,4,7,17-20]

1020183

Unavailable

21

ASM., ARM, CONTROL, LOWER, RH [INCL. 2,4,7,17-20]

1020184

Unavailable

21

ASM., ARM, CONTROL, LOWER, LH, RED [INCL. 2,4,7,17-20]

1020183-293

Unavailable

21

ASM., ARM, CONTROL, LOWER, RH, RED [INCL. 2,4,7,17-20]

1020184-293

Unavailable

21

ASM., ARM, CONTROL, LOWER, LH, BRIGHT WHITE [INCL. 2,4,7,17-20]

1020183-133

Unavailable

21

ASM., ARM, CONTROL, LOWER, RH, BRIGHT WHITE [INCL. 2,4,7,17-20]

1020184-133

Unavailable

22

ASM., LINKAGE, STABILIZER

1543385

Unavailable

23

BAR, ANTI-ROLL, E-COAT

5337707-329

Unavailable

24

BUSHING, SWAY BAR, 1.25 IN.

5451257

$7.19

24

BUSHING, SWAY BAR, 1.25 IN.

5451257

$7.19

25

SCREW

7520013

Unavailable

26

SCREW

7520118

Unavailable

27

BRKT., CAP, SWAY BAR

5632497

$39.99
