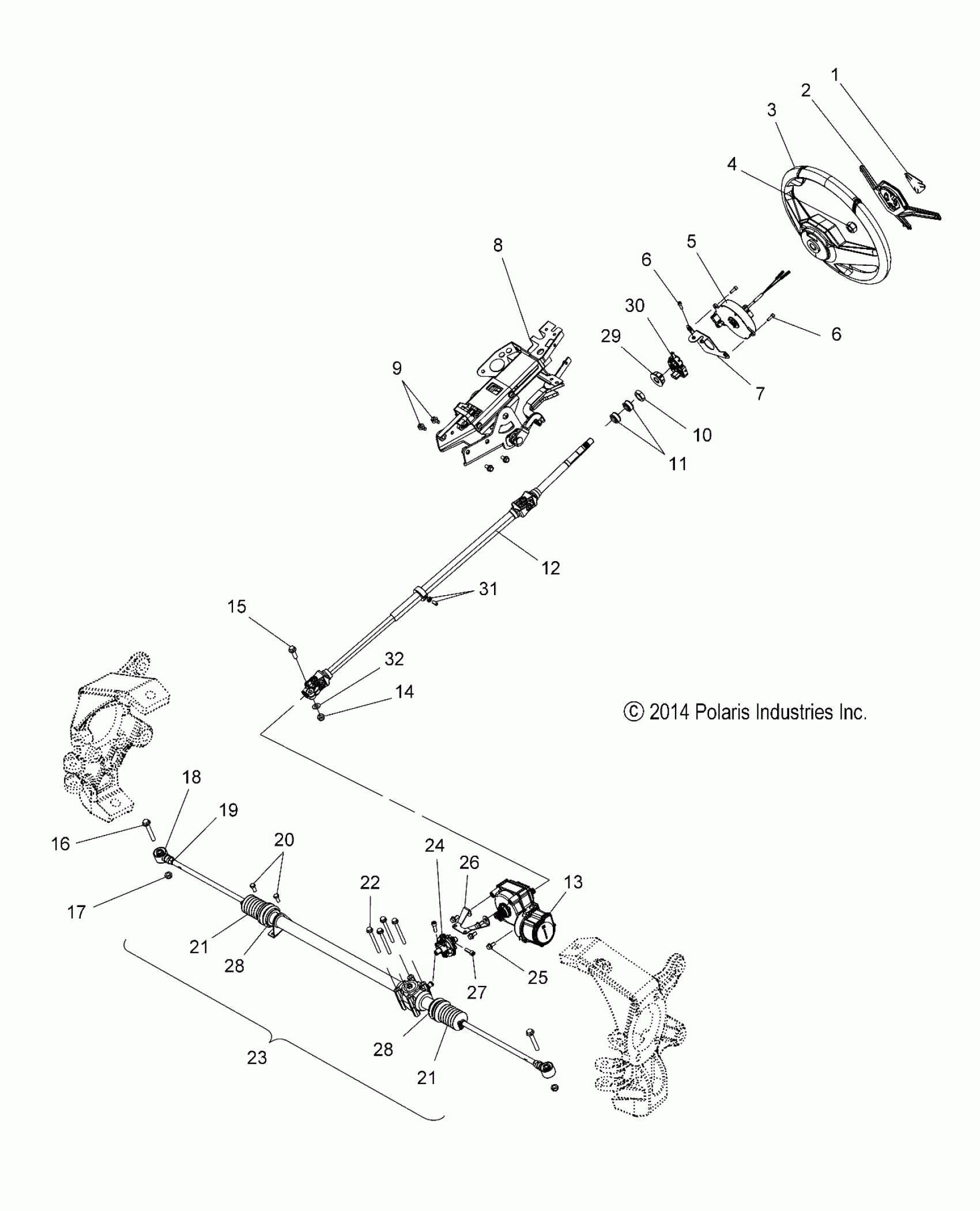

Polaris SLINGSHOT ALL OPTIONS (R10) - T16AAS/AAP STEERING, STEERING ASM. - T16AAS/AAP ALL OPTIONS (49SLINGSHOTSTEER14SLING) Diagram

#

Description
Price

1

BADGE, SLINGSHOT

7179350

Unavailable

2

PAD, HORN

5451358

$84.99

3

WHEEL, STEERING

1824215

$213.00

4

NUT

7547506

$4.99

5

CLOCK SPRING

4016020

Unavailable

6

SCREW

7518811

$3.17

6

SCREW

7518811

$3.17

7

BRKT., CLOCK SPRING, E-COAT

1019452-329

$48.56

8

ASM., STEERING COLUMN

1824398

Unavailable

8

ASM., STEERING COLUMN, INTL [INTL ONLY]

1824452

$530.49

9

SCREW

7519181

$5.56

10

NUT

7547668

$7.14

11

BUSHING-STEERING

7556675

$15.19

12

SHAFT, STEERING, EPS

1824088

$809.99

12

SHAFT, STEERING, EPS, LOCK [INTL]

1824463

$764.99

13

ASM., POWER STEERING

2413358

$2,499.99

14

NUT

7547313

$1.19

15

SCREW

7519994

$23.81

16

SCREW

7518291

$3.17

17

NUT, NYL

7547746

$2.38

18

ROD END

7061224

$48.40

19

JAM NUT

7547028

$2.38

20

Screw

7518097

$3.97

21

BOOT, RACK

5412013

$62.21

21

BOOT, RACK

5412013

$62.21

22

SCREW

7517792

$2.38

23

RACK, STEERING

1824432

Unavailable

24

ASM., COUPLING, FLEX, EPS

1824415

$668.08

25

BOLT

7518558

$3.97

26

BRKT., EPS, STIFFENER

5260341

$38.71

27

SCREW

7519727

$10.32

28

CLAMP, BOOT, LARGE

7080979

$5.56

28

CLAMP, BOOT, LARGE

7080979

$5.56

29

CAM, TURN SIGNAL CANCEL

5452091

$11.32

30

SENSOR, ANGLE, STEERING [SEE ELECTRICAL, COMPONENTS PG.]

----

Unavailable

31

SCREW-SET, M8

7556890

$7.14

31

NUT-LOCK

7520198

$7.14

32

Washer

7556099

$1.59
