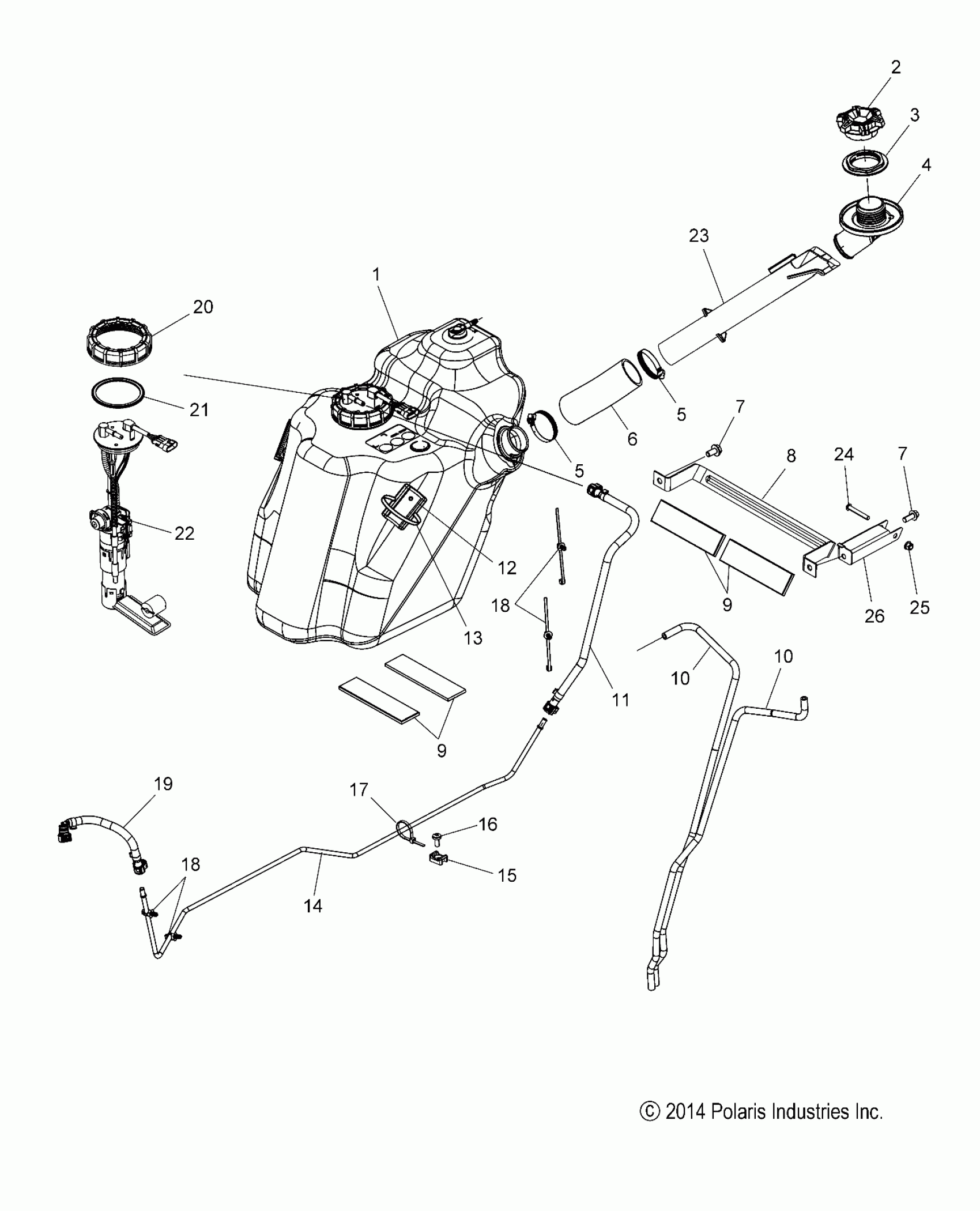

Polaris SLINGSHOT ALL OPTIONS (R10) - T16AAS/AAP FUEL SYSTEM, FUEL TANK ASM. - T16AAS/AAP ALL OPTIONS (49SLINGSHOTFUEL14SLING) Diagram

#

Description
Price

1

TANK, FUEL [INCL. ROLLOVER VALVE]

1018856

Unavailable

2

CAP, FUEL, NON VENTED

2521278

Unavailable

2

CAP, FUEL, NON VENTED, WHITE LIGHTNING

2521278-599

Unavailable

3

Nut, Filler Neck

5435156

$4.79

4

CAP, FUEL, FILLER NECK

2521383

Unavailable

5

CLAMP, BAND, NARROW

7080413

$3.19

5

CLAMP, BAND, NARROW

7080413

$3.19

6

HOSE, FUEL FILL

5414709

$55.99

7

BOLT

7518908

$1.59

7

BOLT

7518908

$1.59

8

STRAP, FUEL TANK

5260625

Unavailable

9

PAD, FUEL TANK, MNT. BRKT.

5813873

Unavailable

10

HOSE, FUEL FILL, OVERFLOW

5414578

Unavailable

10

HOSE, FUEL FILL, OVERFLOW

5414578

Unavailable

11

LINE, FUEL TANK

5414454

Unavailable

12

PAD, FUEL TANK, FRAME TUBE

5814171

Unavailable

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

LINE, FUEL, FRAME

8450133

Unavailable

15

CLIP, CABLE TIE

5439713

Unavailable

16

SCREW

7518914

$3.19

17

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

18

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

18

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

19

LINE, FUEL , ENGINE

5414455

Unavailable

20

NUT-MASON JAR

5437138

$35.99

21

GASKET-PFA,RIBBED

5413451

$11.99

22

PUMP, FUEL

2521242

Unavailable

23

INSERT, FUEL FILL

5450366

Unavailable

24

SCREW

7520293

Unavailable

25

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

26

BRACE, REAR, SUB-FRAME, E-COAT

5260730-329

Unavailable
