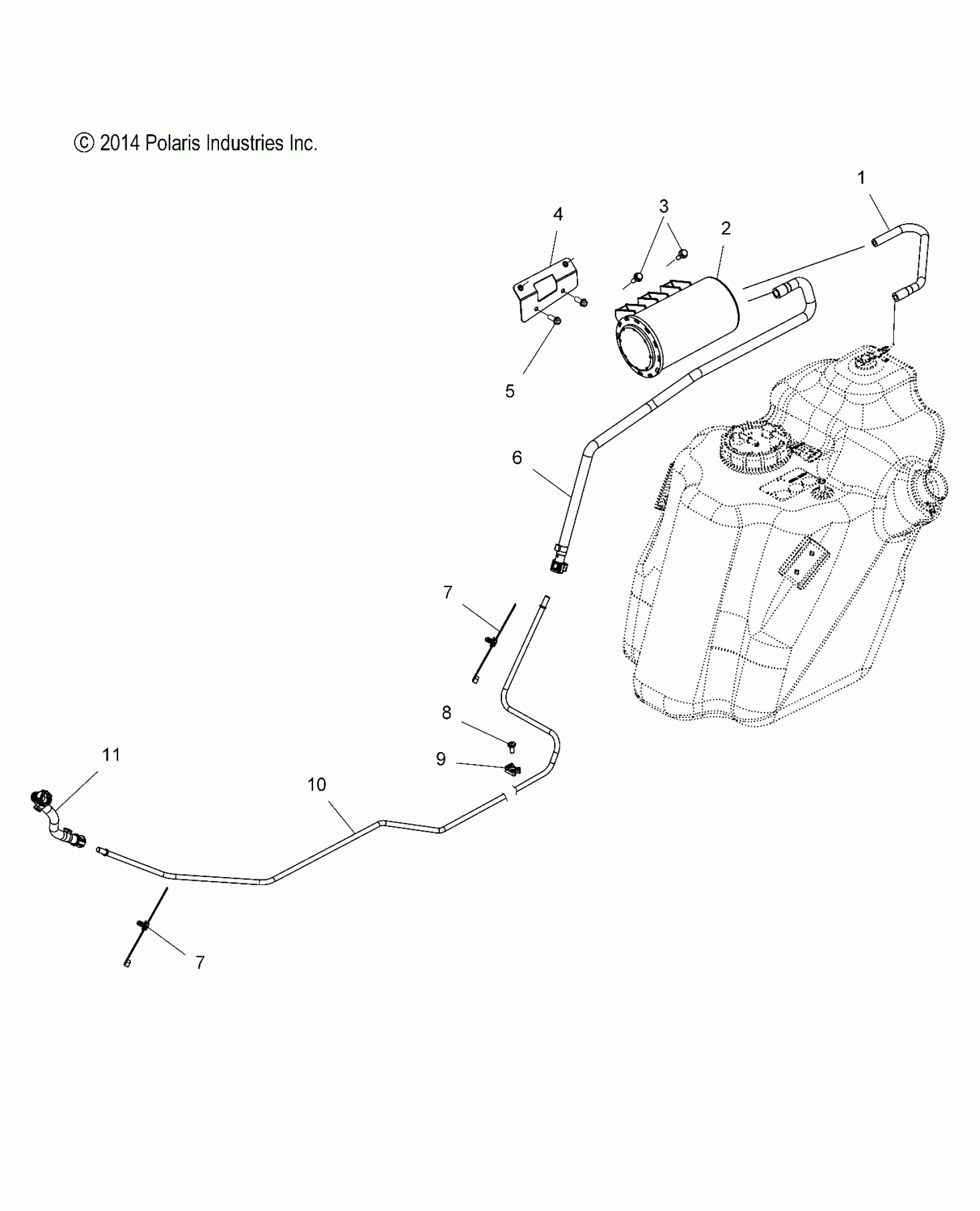

Polaris SLINGSHOT ALL OPTIONS (R10) - T16AAS/AAP FUEL SYSTEM, EVAP - T16AAS/AAP (CALIFORNIA ONLY) (49SLINGSHOTEVAP14SLING) Diagram

#

Description

Price

1

ASM., LINE, PURGE, TANK TO EVAP CAN

2521512

Unavailable

2

CANISTER, EVAP, CHARCOAL

2521280

Unavailable

3

SCREW [TO 5/25/2020]

7518613

$3.99

3

SCR-TXTH-M6X1.0X25 ZFB [FROM 5/25/2020]

7519650

$3.99

4

BRKT., EVAP, E-COAT [TO 5/25/2020]

1019206

Unavailable

4

BRKT-EVAP, E-COAT [FROM 5/25/2020]

5270937-329

Unavailable

4

NUT-M6 FLANGE,NYLOC [FROM 5/25/2020]

7547274

$1.49

5

SCREW

7518548

$1.59

6

LINE, PURGE, EVAP CAN TO FRAME

5414551

Unavailable

7

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

7

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

8

SCREW

7518914

$3.19

9

CLIP, CABLE TIE

5439713

Unavailable

10

LINE, PURGE, FRAME

8450134

Unavailable

11

LINE, PURGE, ENGINE TO FRAME

5414550

Unavailable
