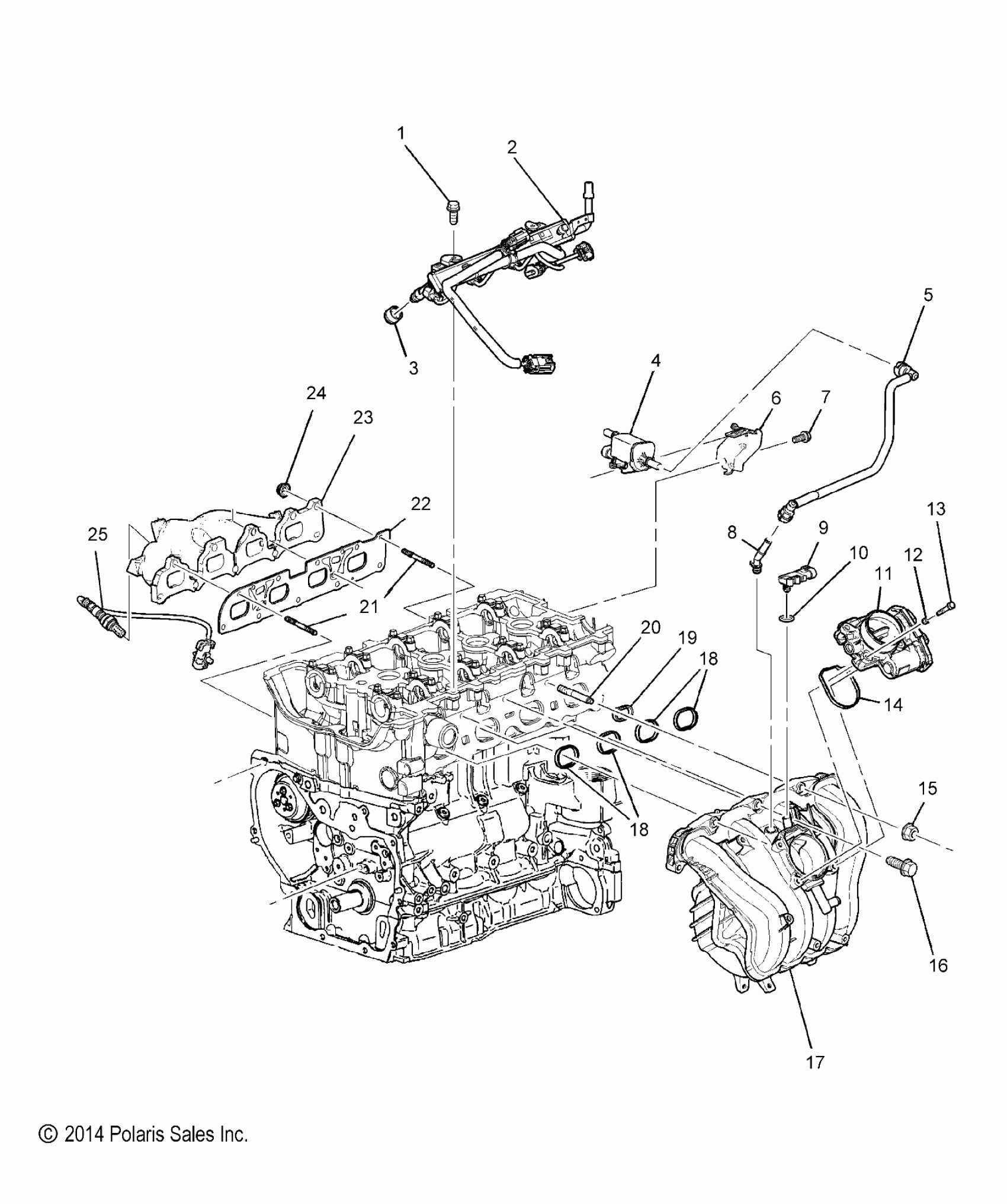

Polaris SLINGSHOT ALL OPTIONS (R10) - T16AAS/AAP ENGINE, MANIFOLDS, AND FUEL RELATED PARTS - T16AAS/AAP ALL OPTIONS (49SLINGSHOTMANIFOLD14SLING) Diagram

#

Description

Price

1

BOLT, HFH, M6X25

11562426

Unavailable

2

INJECTOR, M/PORT FUEL

12613163

Unavailable

3

INSULATOR, F/INJR [INCL. SEALS]

12571864

Unavailable

4

VALVE, EVAP EMIS CNSTR PURGE SOL

12597567

Unavailable

5

TUBE, EVAP EMIS CNSTR PURGE

12586630

Unavailable

6

BRKT, EVAP EMIS CNSTR PURGE VALVE

12579283

Unavailable

7

BOLT, HFH, M8X25

11588723

Unavailable

8

CONNECTOR, EVAP EMIS CNSTR

-------

Unavailable

9

SENSOR, MAP [INCL. 10]

12591290

Unavailable

10

SEAL, MAP SENSOR

-------

Unavailable

11

BODY, THROTTLE [INCL. 12,13]

12632093

Unavailable

12

RETAINER, THROTTLE BODY BOLT

11518792

Unavailable

13

BOLT, HFH, M6X25

11562426

Unavailable

14

SEAL, THROTTLE BODY

12580395

Unavailable

15

NUT, HFH, M6

03530297

Unavailable

16

BOLT, HFH, M6X38

11589303

Unavailable

17

MANIFOLD, INTAKE [INCL. 8]

12597953

Unavailable

18

GASKET, INTAKE MANIFOLD

12575836

Unavailable

18

GASKET, INTAKE MANIFOLD

12575836

Unavailable

19

SEAL, C/CASE VENT PASG

12575851

Unavailable

20

STUD, INTAKE MANIFOLD

90537426

Unavailable

21

STUD, STRAIGHT

11589054

Unavailable

22

GASKET, EXHAUST MANIFOLD

12646199

Unavailable

23

MANIFOLD, EXHAUST

12643496

Unavailable

24

NUT, HFH, M8

11516076

Unavailable

25

SENSOR, HTD OXY

12589321

Unavailable
