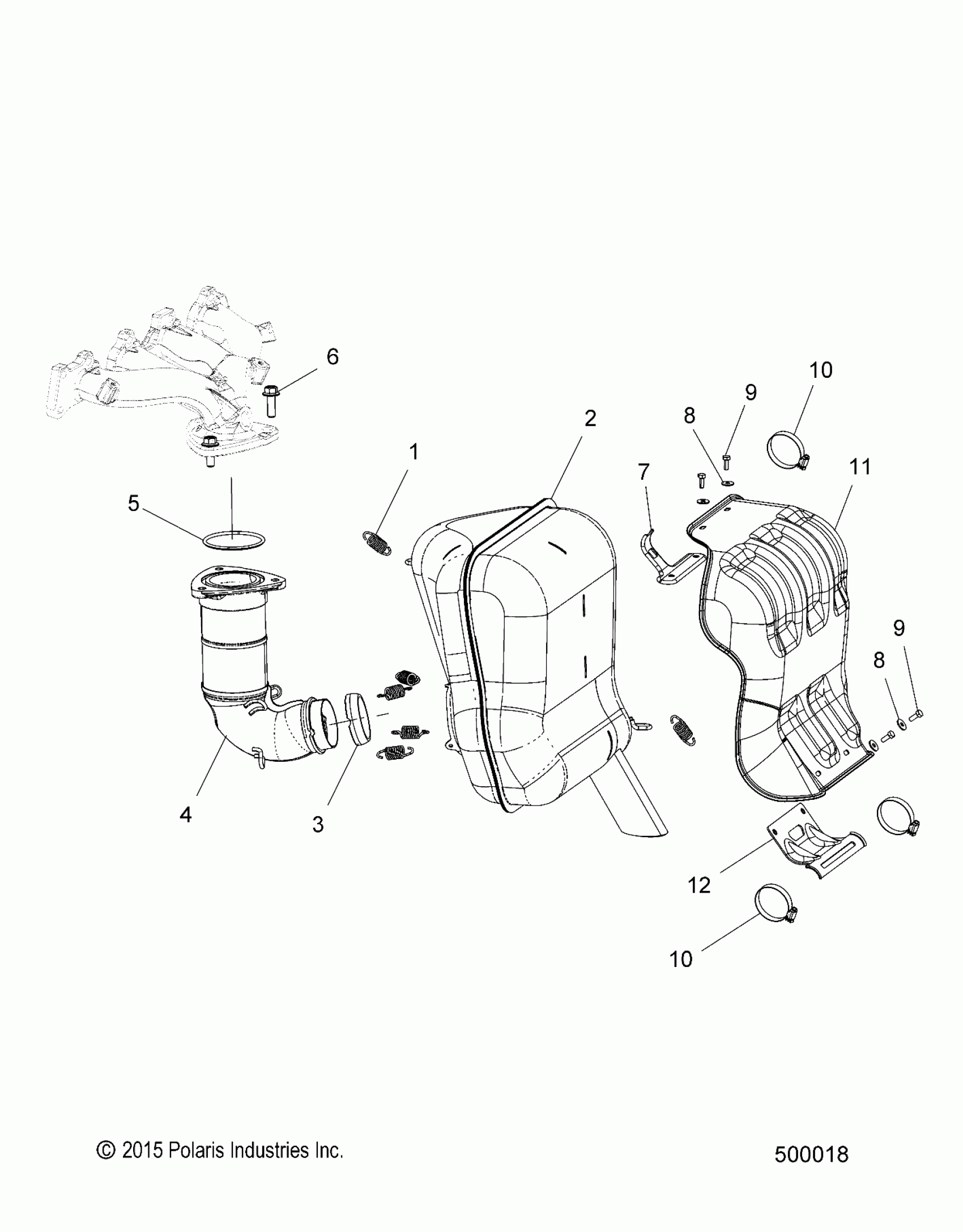

Polaris SLINGSHOT ALL OPTIONS (R10) - T16AAS/AAP ENGINE, EXHAUST SYSTEM - T16AAS/AAP ALL OPTIONS (500018) Diagram

#

Description

Price

1

SPRING-EXHAUST S.S. SHOTPEENED

7043726

$4.84

2

ASM., RESONATOR, INT. CAT.

1262781

$1,099.99

3

SEAL, EXHAUST, SOCKET

3610211

$20.22

4

ASM., CATALYST, EXHAUST

1262409

$829.99

5

GASKET, EXHAUST, GM

24505057

$36.41

6

SCREW, GM

11516328

$8.08

7

BRKT., UPPER, HEAT SHIELD [BUILT 2/01/16 AND AFTER]

5262806

$59.99

8

WSHR-6.4X18.0X1.6 ZPB [BUILT 2/01/16 AND AFTER]

7556064

$5.22

8

WSHR-6.4X18.0X1.6 ZPB [BUILT 2/01/16 AND AFTER]

7556064

$5.22

9

SCREW [BUILT 2/01/16 AND AFTER]

7520525

$3.97

9

SCREW [BUILT 2/01/16 AND AFTER]

7520525

$3.97

10

CLAMP [BUILT 2/01/16 AND AFTER]

7082221

$4.76

10

CLAMP [BUILT 2/01/16 AND AFTER]

7082221

$4.76

11

SHIELD, HEAT, EXHAUST, DCI [BUILT 2/01/16 AND AFTER]

1262919

$72.60

12

BRKT., LOWER, HEAT SHIELD [BUILT 2/01/16 AND AFTER]

5262808

$39.99
