- SLINGSHOT ALL OPTIONS (R10) - T16AAS/AAP
ENGINE, COOLING SYSTEM (VIN 57XAAPFA7G7114449 AND AFTER) - T16AAS/AAP ALL OPTIONS (500017)

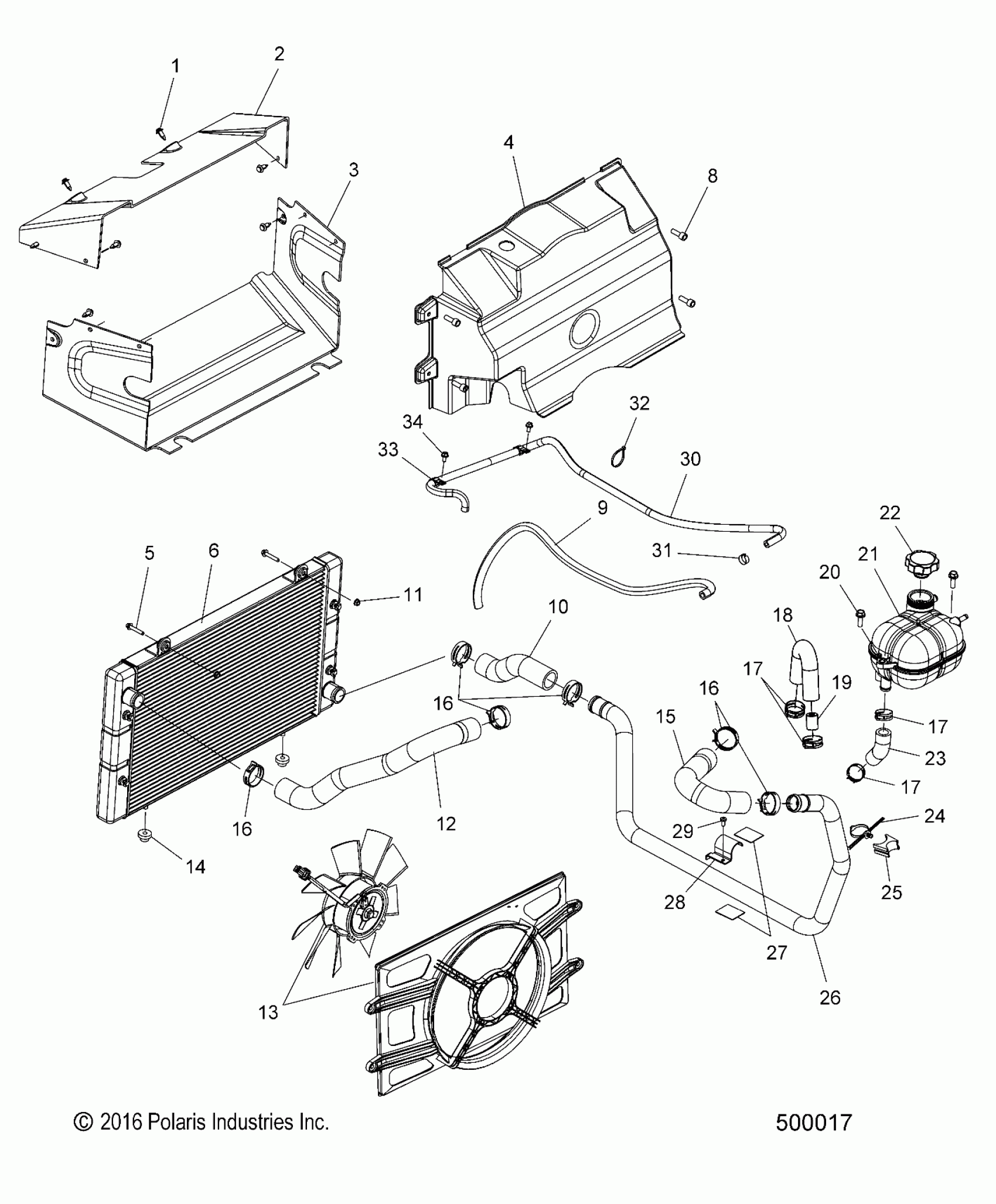

Polaris SLINGSHOT ALL OPTIONS (R10) - T16AAS/AAP ENGINE, COOLING SYSTEM (VIN 57XAAPFA7G7114449 AND AFTER) - T16AAS/AAP ALL OPTIONS (500017) Diagram
#
Description
Price
1
RIVET, TUFFLOK
7661855
$1.49
2
SHROUD, RADIATOR, UPPER
5450127
Unavailable
3
SHROUD, RADIATOR, LOWER
5450128
Unavailable
4
SHROUD, RADIATOR, REAR
5452595
Unavailable
5
SCREW
7516827
$6.39
6
RADIATOR
1241022
Unavailable
8
SCREW
7520490
Unavailable
9
HOSE-OVERFLOW, SURGE
5415514
Unavailable
10
LINE, RETURN, COOLANT, FRONT
5415952
Unavailable
11
NUT, HXFLG
7547270
$3.99
12
HOSE, ENGINE OUTLET
5414431
Unavailable
13
ASM., FAN W/SHROUD
1241091
Unavailable
14
BUSHING-MOUNT,LOWER RADIATOR
5410584
$5.59
15
LINE, RETURN, COOLANT, REAR
5414432
Unavailable
16
CLAMP, CTB 46
7081844
Unavailable
16
CLAMP, CTB 46
7081844
Unavailable
16
CLAMP, CTB 46
7081844
Unavailable
17
CLAMP
7080842
$7.19
17
CLAMP
7080842
$7.19
17
CLAMP
7080842
$7.19
18
HOSE, CORE, BYPASS
5414445
Unavailable
19
ORIFICE, HEATER BYPASS
5450024
Unavailable
20
SCREW
7518576
$3.19
21
TANK, SURGE
5439572
Unavailable
22
CAP, SURGE TANK
5439573
Unavailable
23
LINE, SURGE
5414463
Unavailable
24
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
25
SPACER, COOLANT TUBE MNT.
5414568
Unavailable
26
TUBE, COOLANT, RETURN
5337110
Unavailable
27
MOUNT, PAD, COOLING
5139611
Unavailable
28
BRKT. COOLANT TUBE
5256835
Unavailable
29
Screw
7517770
$2.39
30
HOSE-VENT, SURGE
5415832
Unavailable
31
CLAMP-HOSE
7080699
$1.59
32
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
33
CLAMP-HOSE
7080880
$5.59
34
SCREW-HXFL
7517704
$7.19
