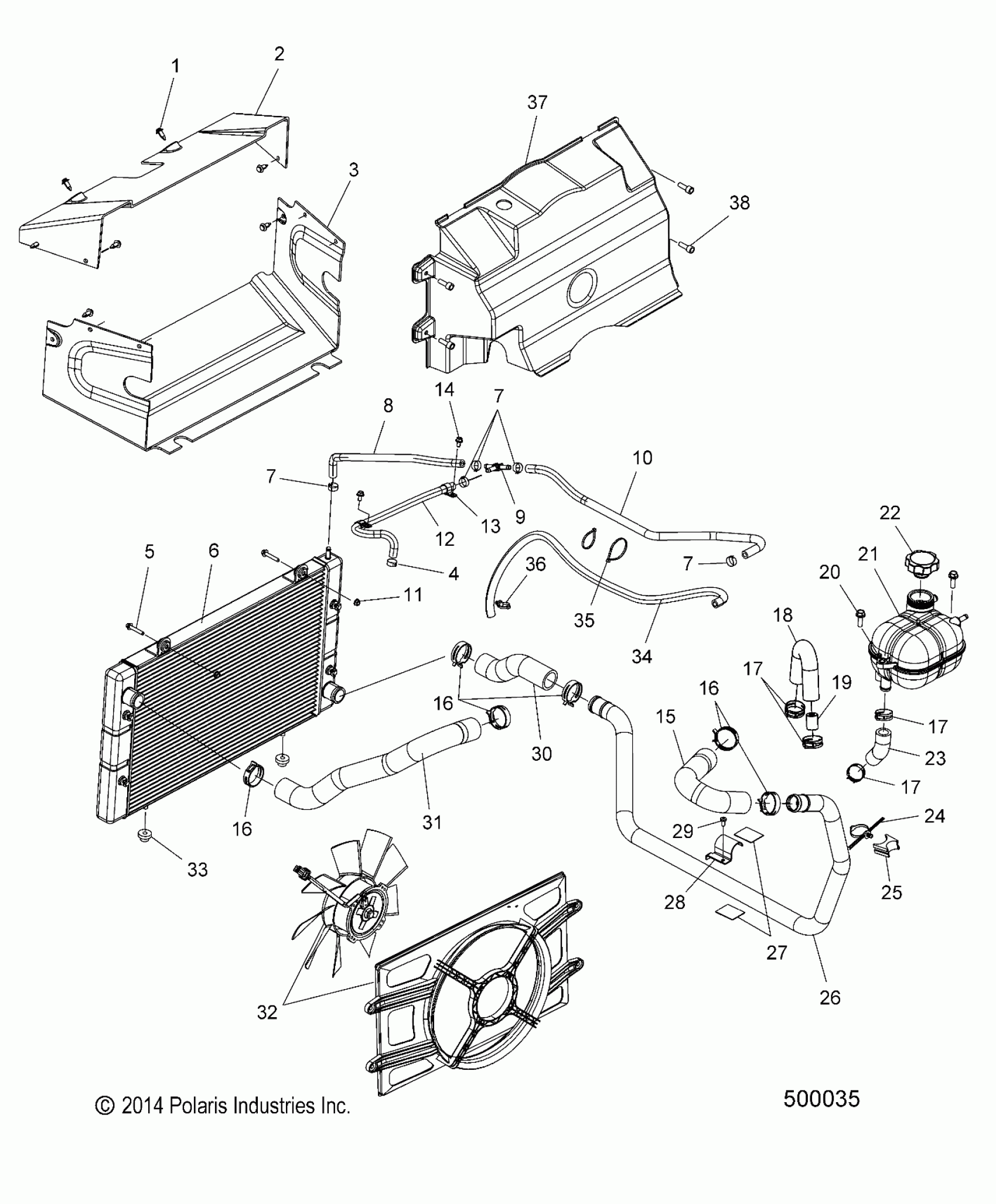

Polaris SLINGSHOT ALL OPTIONS (R10) - T16AAS/AAP ENGINE, COOLING SYSTEM (VIN 57XAAPFA7G7114448 AND BEFORE) - T16AAS/AAP ALL OPTIONS (500035) Diagram

#

Description
Price

1

RIVET, TUFFLOK

7661855

$1.19

2

SHROUD, RADIATOR, UPPER

5450127

$64.75

3

SHROUD, RADIATOR, LOWER

5450128

$104.99

4

CLAMP, HOSE, .625 SS

7080476

$6.35

5

SCREW

7516827

$6.35

6

RADIATOR

1240731

Unavailable

7

CLAMP, HOSE, SPRING

7082286

$7.14

7

CLAMP, HOSE, SPRING

7082286

$7.14

7

CLAMP, HOSE, SPRING

7082286

$7.14

8

HOSE, VENT, RADIATOR

5415103

$32.37

9

T-CONNECTOR

5439574

Unavailable

10

HOSE, VENT, SURGE

5415101

Unavailable

11

NUT

7547270

$3.97

12

HOSE, VENT, ENGINE

5415102

Unavailable

13

Clamp, Hose

7080880

$5.56

14

SCREW

7517704

$7.84

15

LINE, RETURN, COOLANT, REAR

5414432

$48.56

16

CLAMP, CTB 46

7081844

$10.32

16

CLAMP, CTB 46

7081844

$10.32

16

CLAMP, CTB 46

7081844

$10.32

17

CLAMP

7080842

$7.14

17

CLAMP

7080842

$7.14

17

CLAMP

7080842

$7.14

18

HOSE, CORE, BYPASS

5414445

$40.46

19

ORIFICE, HEATER BYPASS

5450024

$5.65

20

SCREW

7518576

$3.17

21

TANK, SURGE

5439572

Unavailable

22

CAP, SURGE TANK

5439573

$39.99

23

LINE, SURGE

5414463

$60.70

24

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

25

SPACER, COOLANT TUBE MNT.

5414568

$5.99

26

TUBE, COOLANT, RETURN

5337110

$99.99

27

MOUNT, PAD, COOLING

5139611

$4.03

28

BRKT. COOLANT TUBE

5256835

$32.37

29

Screw

7517770

$2.38

30

LINE, RETURN, COOLANT, FRT

5414482

$40.46

31

HOSE, ENGINE OUTLET

5414431

$60.70

32

ASM., FAN W/SHROUD

2880965

$377.60

33

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

34

HOSE- OVERFLOW, SURGE

5415514

$38.71

35

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

36

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

37

SHROUD, RADIATOR, REAR [BUILT 2/01/2016 AND AFTER]

5452595

$84.99

38

SCREW [BUILT 2/01/2016 AND AFTER]

7520490

$5.56
