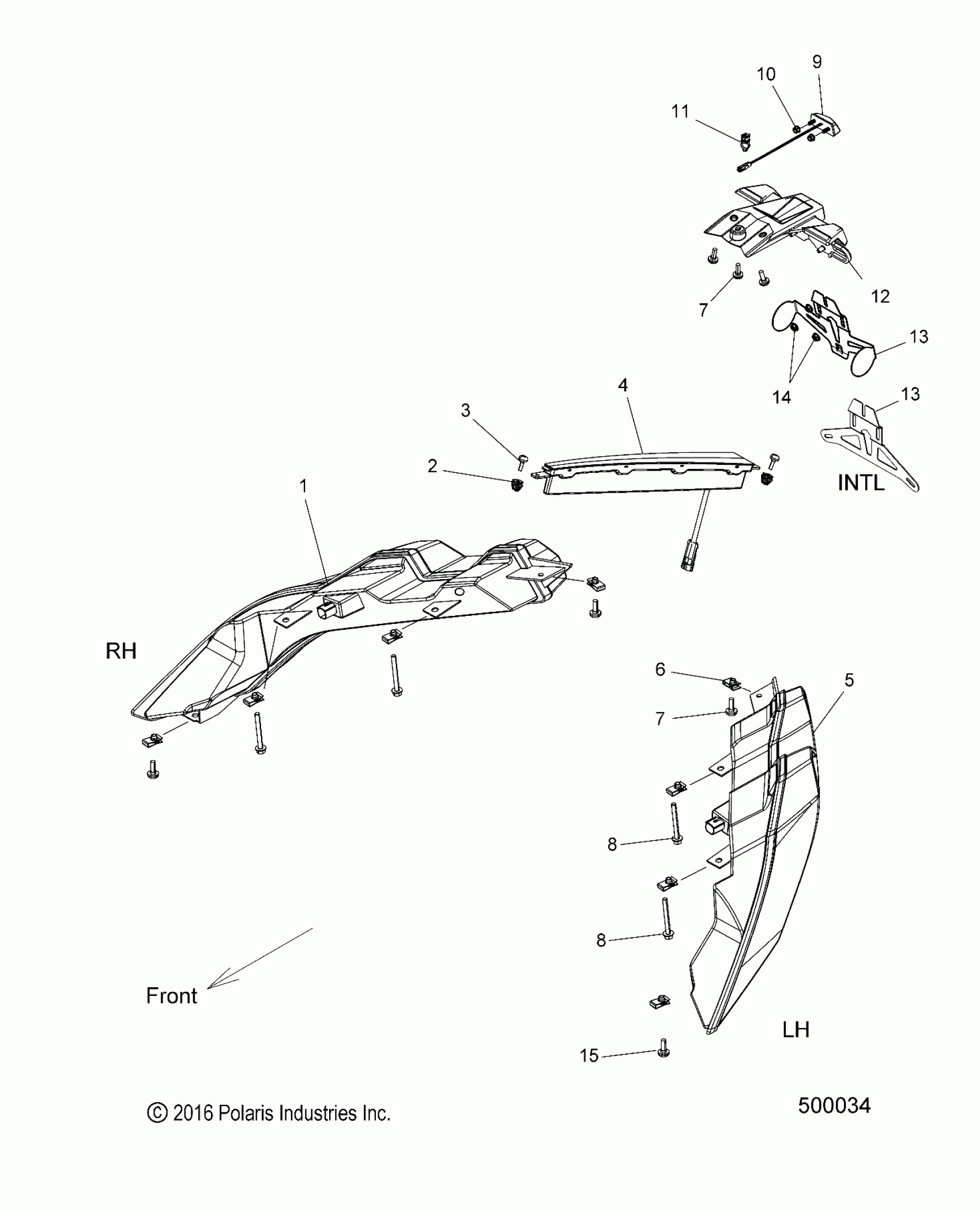

Polaris SLINGSHOT ALL OPTIONS (R10) - T16AAS/AAP ELECTRICAL, REAR LIGHTING - T16AAS/AAP ALL OPTIONS (500034) Diagram

#

Description
Price

1

ASM., RH, REAR,TAILLIGHT/TURN/STOP/RVRS. LIGHT

2411871

$571.25

1

LIGHT, TAIL, RH, INTL [INTL ONLY]

2412518

$459.99

2

NUT, PAL NUT, M4

7547324

$3.97

3

SCREW

7518518

$1.59

4

LAMP, CENTER HI MNT. STOP

2413294

$217.84

5

ASM., LH, REAR,TAILLIGHT/TURN/STOP/RVRS. LIGHT

2411870

$551.89

5

LIGHT, TAIL, LH, INTL [INTL ONLY]

2412517

$459.99

6

CLIP-U SPEED NUT

7081305

$1.98

7

SCREW

7520011

$2.38

7

SCREW

7520011

$2.38

8

SCREW

7519171

$5.56

8

SCREW

7519171

$5.56

9

LAMP-LICENSE PLATE,EU/US

2412682

$82.29

10

NUT, HXFL

7547829

$3.17

11

CLIP, HARNESS

7081967

$10.32

12

MOUNT, LICENSE PLATE

5439679

$36.41

13

BRKT., LICENSE PLATE, FBLK

5255399-463

$72.84

13

BRKT., LICENSE PLATE, INTL, FBLK [INTL ONLY]

5261619-463

$55.56

13

BRKT., LICENSE PLATE, FBLK

5255399-463

$72.84

13

BRKT., LICENSE PLATE, INTL, FBLK [INTL ONLY]

5261619-463

$55.56

14

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.19

15

SCREW, M6, TXBH

7519748

$4.76
