- SLINGSHOT ALL OPTIONS (R10) - T16AAS/AAP
ELECTRICAL, FORWARD LIGHTING - T16AAS/AAP ALL OPTIONS (500007)

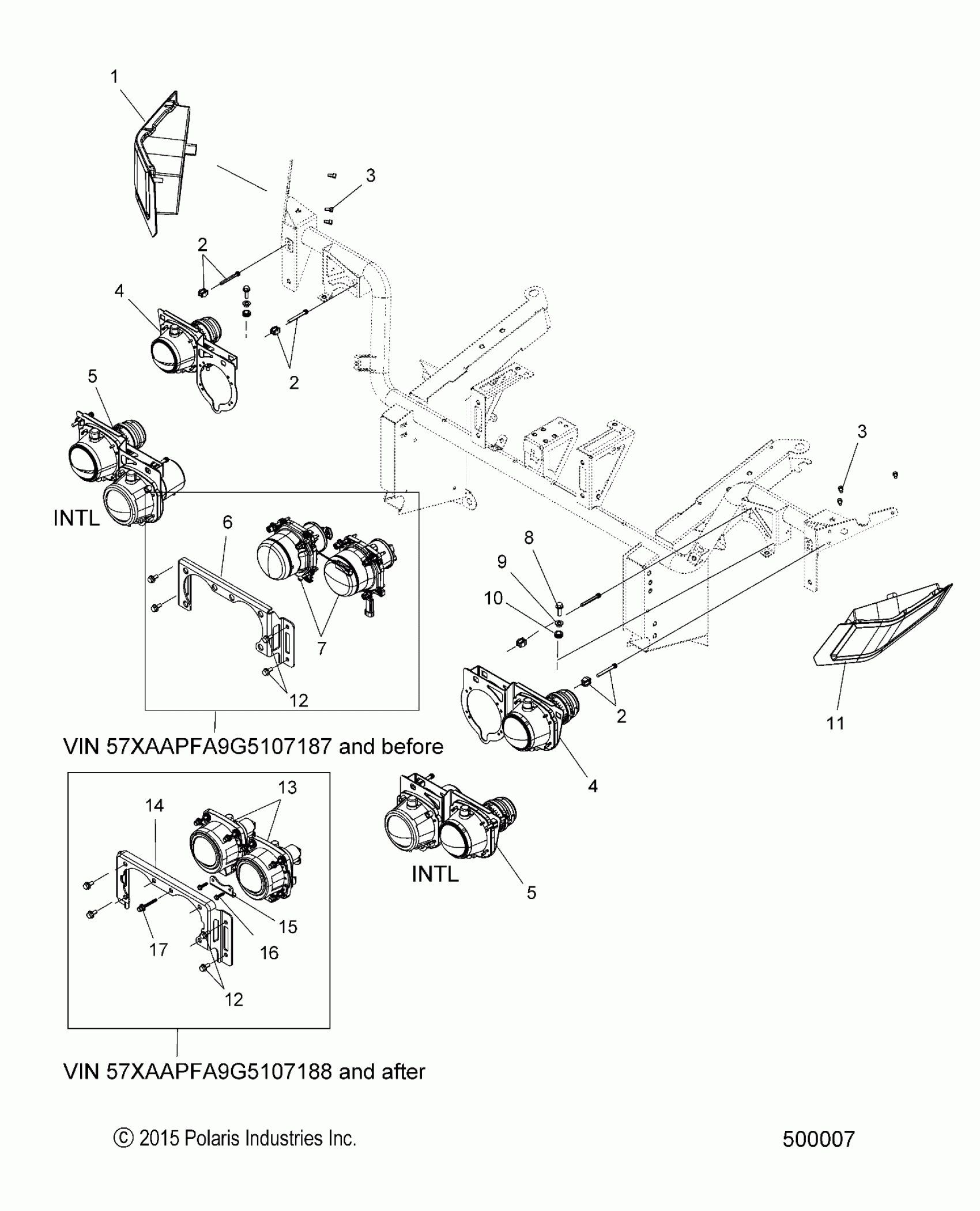

Polaris SLINGSHOT ALL OPTIONS (R10) - T16AAS/AAP ELECTRICAL, FORWARD LIGHTING - T16AAS/AAP ALL OPTIONS (500007) Diagram
#
1
SIGNAL, TURN, FRONT, RH
2411873
Unavailable
1
SIGNAL, TURN, FRONT, W/O SIDE LT, RH [INTLY ONLY]
2412516
Unavailable
2
SCREW, ADJUSTER, HEADLIGHT [INCL. SCREW AND ADJUSTER]
7519977
Unavailable
2
SCREW, ADJUSTER, HEADLIGHT [INCL. SCREW AND ADJUSTER]
7519977
Unavailable
2
SCREW, ADJUSTER, HEADLIGHT [INCL. SCREW AND ADJUSTER]
7519977
Unavailable
3
SCREW
7517725
Unavailable
3
SCREW
7517725
Unavailable
4
ASM., HEADLIGHT OUTER, LH
2412877
Unavailable
4
ASM., HEADLIGHT OUTER, RH
2412878
Unavailable
4
BULB, HALOGEN, H3, 55W
4015135
Unavailable
4
ASM., HEADLIGHT OUTER, LH
2412877
Unavailable
4
ASM., HEADLIGHT OUTER, RH
2412878
Unavailable
4
BULB, HALOGEN, H3, 55W
4015135
Unavailable
5
POSITION BULB, 5W
4012265
Unavailable
5
BULB, HALOGEN, H3, 55W
4015135
Unavailable
5
ASM., HEADLIGHT OUTER, LH, CND [CANADA ONLY]
2412880
Unavailable
5
ASM., HEADLIGHT OUTER, RH, CND [CANADA ONLY]
2412881
Unavailable
5
ASM., HEADLIGHT OUTER, RH, INTL [INTL ONLY]
2413319
Unavailable
5
ASM., HEADLIGHT OUTER, LH, INTL [INTL ONLY]
2413320
Unavailable
5
POSITION BULB, 5W
4012265
Unavailable
5
BULB, HALOGEN, H3, 55W
4015135
Unavailable
5
ASM., HEADLIGHT OUTER, LH, CND [CANADA ONLY]
2412880
Unavailable
5
ASM., HEADLIGHT OUTER, RH, CND [CANADA ONLY]
2412881
Unavailable
5
ASM., HEADLIGHT OUTER, RH, INTL [INTL ONLY]
2413319
Unavailable
5
ASM., HEADLIGHT OUTER, LH, INTL [INTL ONLY]
2413320
Unavailable
6
BRKT., MOUNT, HEADLIGHT, CENTER [VIN 57XAAPFA9G5107187 AND BEFORE, AND 57XAAPFA4G5107602 THRU 5107678 and 5107871 THRU 5107910]
5260185
Unavailable
7
BULB, HALOGEN, H9 [SVC]
4015942
Unavailable
7
HEADLIGHT, HI/LOW, 90MM [VIN 57XAAPFA9G5107187 AND BEFORE, AND 57XAAPFA4G5107602 THRU 5107678 AND 5107871 THRU 5107910]
2412965
Unavailable
8
BOLT
7518613
$3.99
9
SLEEVE, SHOULDERED, M6
5134082
Unavailable
10
GROMMET
5412265
Unavailable
11
SIGNAL, TURN, FRONT, LH
2411872
Unavailable
11
SIGNAL, TURN, FRONT, W/O SIDE LT, LH [INTL ONLY]
2412515
Unavailable
12
Screw
7517770
$2.39
12
Screw
7517770
$2.39
13
BULB, HALOGEN, H9 [SVC]
4015942
Unavailable
13
ASM., HEADLIGHT/HOUSING, CENTER [VIN 57XAAPFA9G5107188 TO 57XAAPFA9G5107601 AND 57XAAPFA4G5107679 TO 5107870 AND 5107911 AND AFTER]
2413133
Unavailable
14
BRKT., MOUNT, HEADLIGHT, CENTER [VIN 57XAAPFA9G5107188 TO 57XAAPFA9G5107601 AND 57XAAPFA4G5107679 TO 5107870 AND 5107911 AND AFTER]
5261878
Unavailable
15
BRKT., LINK, HEADLIGHT [VIN 57XAAPFA9G5107188 TO 57XAAPFA9G5107601 AND 57XAAPFA4G5107679 TO 5107870 AND 5107911 AND AFTER]
5262144
Unavailable
16
SCREW [VIN 57XAAPFA9G5107188 TO 57XAAPFA9G5107601 AND 57XAAPFA4G5107679 TO 5107870 AND 5107911 AND AFTER]
7520413
Unavailable
17
SCREW, HEADLIGHT ADJ., CENTER [VIN 57XAAPFA9G5107188 TO 57XAAPFA9G5107601 AND 57XAAPFA4G5107679 TO 5107870 AND 5107911 AND AFTER]
7520381
Unavailable
