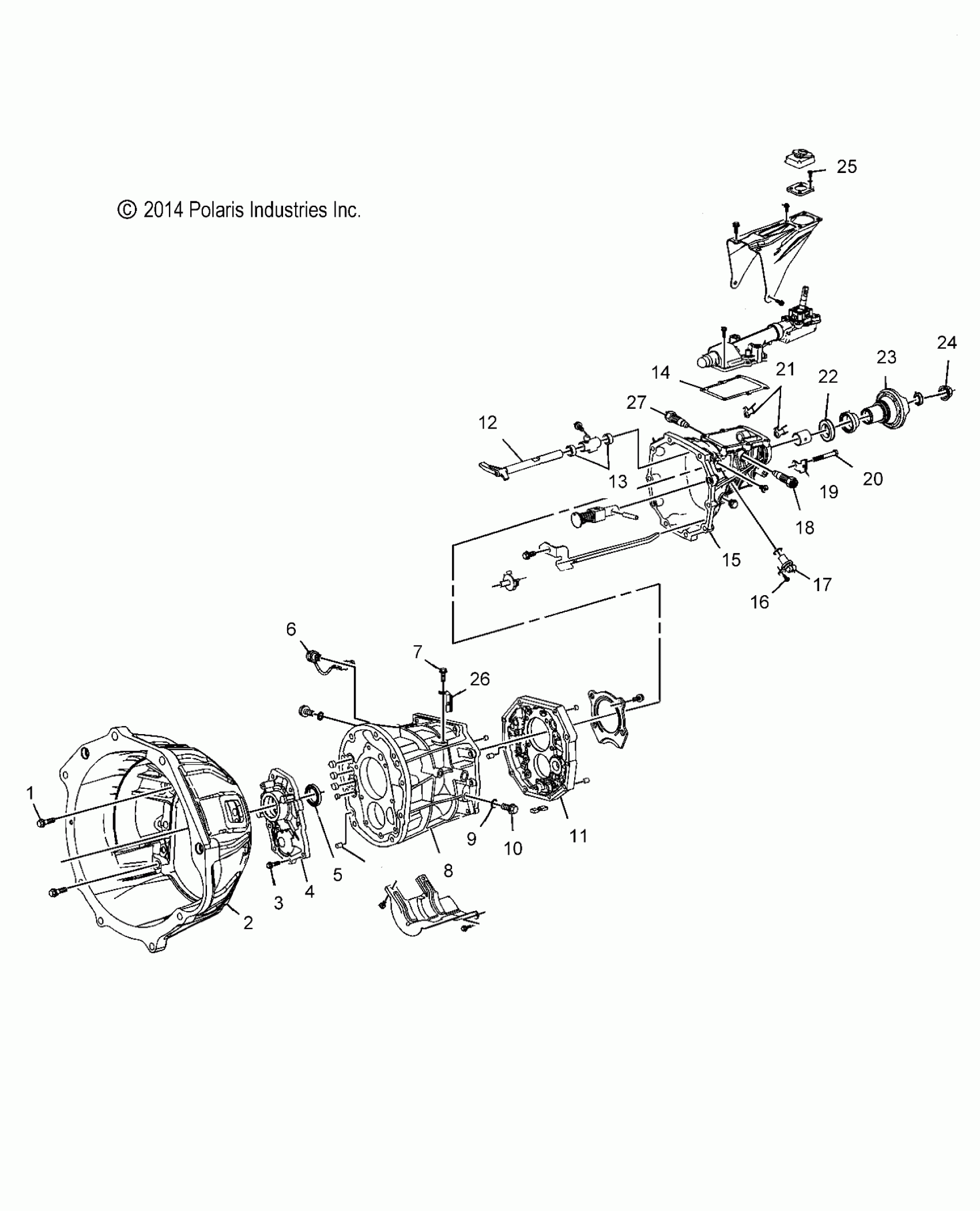

Polaris SLINGSHOT ALL OPTIONS (R10) - T16AAS/AAP DRIVE TRAIN, TRANSMISSION CASE COMP. - T16AAS/AAP ALL OPTIONS (49SLINGSHOTTRANSHOUS14SLING) Diagram

#

Description

Price

1

BOLT, W/WASHER

3235663

Unavailable

2

HOUSING, CLUTCH

3235659

Unavailable

3

BOLT, W/WASHER

3235662

Unavailable

4

ASM., RETAINER, BEARING, FRONT, W/SEAL [INCL. 5]

3235660

Unavailable

5

SEAL

-------

Unavailable

6

SWITCH, BACK UP LAMP

3235649

Unavailable

7

BOLT, W/WASHER

3235650

Unavailable

8

ASM., CASE, TRANSMISSION [INCL 4,5,11]

3235661

Unavailable

9

GASKET

3235642

Unavailable

10

PLUG, STRAIGHT SCREW W/HEAD

3235643

Unavailable

11

CASE, TRANS., INTERNAL

-------

Unavailable

12

LEVER, SHIFT AND SELECT

3235664

Unavailable

13

BUSHING, TRANS., EXTERNAL

-------

Unavailable

14

GASKET,CONTROL SHIFT LEVER RETAINER

3235675

Unavailable

15

HOUSING, SUB-ASSY, EXTENSION [INCL 13,22]

3235676

Unavailable

16

BOLT, FLANGE

3235656

Unavailable

17

SENSOR, SPEED

3235655

Unavailable

18

ASM., PIN, REVERSE RESTRICT

3235644

Unavailable

19

CLAMP

3235654

Unavailable

20

BOLT W/WASHER

3235648

Unavailable

21

CLAMP

3235652

Unavailable

22

SEAL, MAIN SHAFT, REAR

-------

Unavailable

23

FLANGE, OUTPUT SHAFT COMPANION

3235679

Unavailable

24

NUT

3235688

Unavailable

25

BOLT, FLANGE

3235646

Unavailable

26

CLAMP

3235653

Unavailable

27

ASM., PIN, REVERSE RESTRICT

3235645

Unavailable
