BODY, SEAT and SEAT BELT MOUNTING - T16AAS/AAP ALL OPTIONS (1500109)

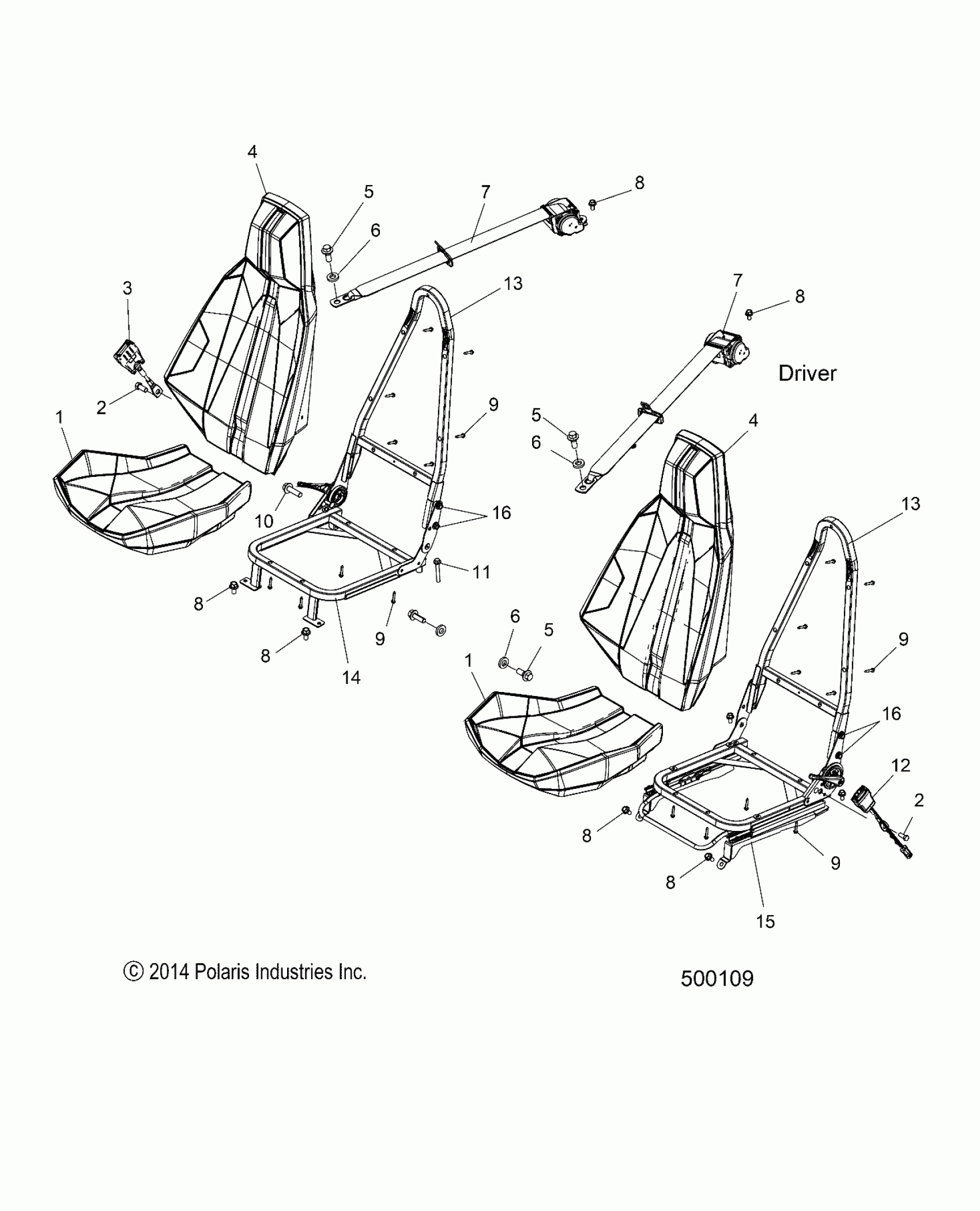

Polaris SLINGSHOT ALL OPTIONS (R10) - T16AAS/AAP BODY, SEAT and SEAT BELT MOUNTING - T16AAS/AAP ALL OPTIONS (1500109) Diagram
#
1
CUSHION, SEAT, BOTTOM, FB RED/BLACK
2685152-1417
Unavailable
1
CUSHION, SEAT, BOTTOM, TITANIUM MET/BLK
2685152-1415
Unavailable
1
CUSHION, SEAT, BOTTOM, BLACK
2685152-070
Unavailable
2
SCREW
7512520
$4.79
2
SCREW
7512520
$4.79
3
ASM., SEAT BUCKLE, PASSENGER
2635731
Unavailable
4
CUSHION, SEAT, BACK, FB RED/BLACK
2685153-1417
Unavailable
4
CUSHION, SEAT, BACK, TITANIUM MET/BLK
2685153-1415
Unavailable
4
CUSHION, SEAT, BACK, BLACK
2685153-070
Unavailable
4
CUSHION, SEAT, BACK, FB RED/BLACK
2685153-1417
Unavailable
4
CUSHION, SEAT, BACK, TITANIUM MET/BLK
2685153-1415
Unavailable
4
CUSHION, SEAT, BACK, BLACK
2685153-070
Unavailable
5
SCREW
7519770
$4.79
5
SCREW
7519770
$4.79
5
SCREW
7519770
$4.79
6
WASHER-SEATBELT,RUBBER
5813829
$1.49
6
WASHER-SEATBELT,RUBBER
5813829
$1.49
6
WASHER-SEATBELT,RUBBER
5813829
$1.49
7
ASM., SEAT BELT
2635442
Unavailable
7
ASM., SEAT BELT, INTL [INTL ONLY]
2635992
Unavailable
7
ASM., SEAT BELT
2635442
Unavailable
7
ASM., SEAT BELT, INTL [INTL ONLY]
2635992
Unavailable
8
SCREW
7519787
$7.19
8
SCREW
7519787
$7.19
8
SCREW
7519787
$7.19
8
SCREW
7519787
$7.19
8
SCREW
7519787
$7.19
8
SCREW
7519787
$7.19
9
SCREW
7519989
Unavailable
9
SCREW
7519989
Unavailable
9
SCREW
7519989
Unavailable
9
SCREW
7519989
Unavailable
10
SCREW
7519768
$7.19
11
Bolt
7518473
$4.79
12
ASM., SEAT BUCKLE, DRIVER
2635730
Unavailable
13
FRAME, SEAT BACK
1018787
Unavailable
13
FRAME, SEAT BACK
1018787
Unavailable
14
FRAME, SEAT BOTTOM, RH
1021240
Unavailable
15
FRAME, SEAT BOTTOM, LH
2686180
Unavailable
16
SCREW
7519803
$7.19
16
SCREW
7519803
$7.19
