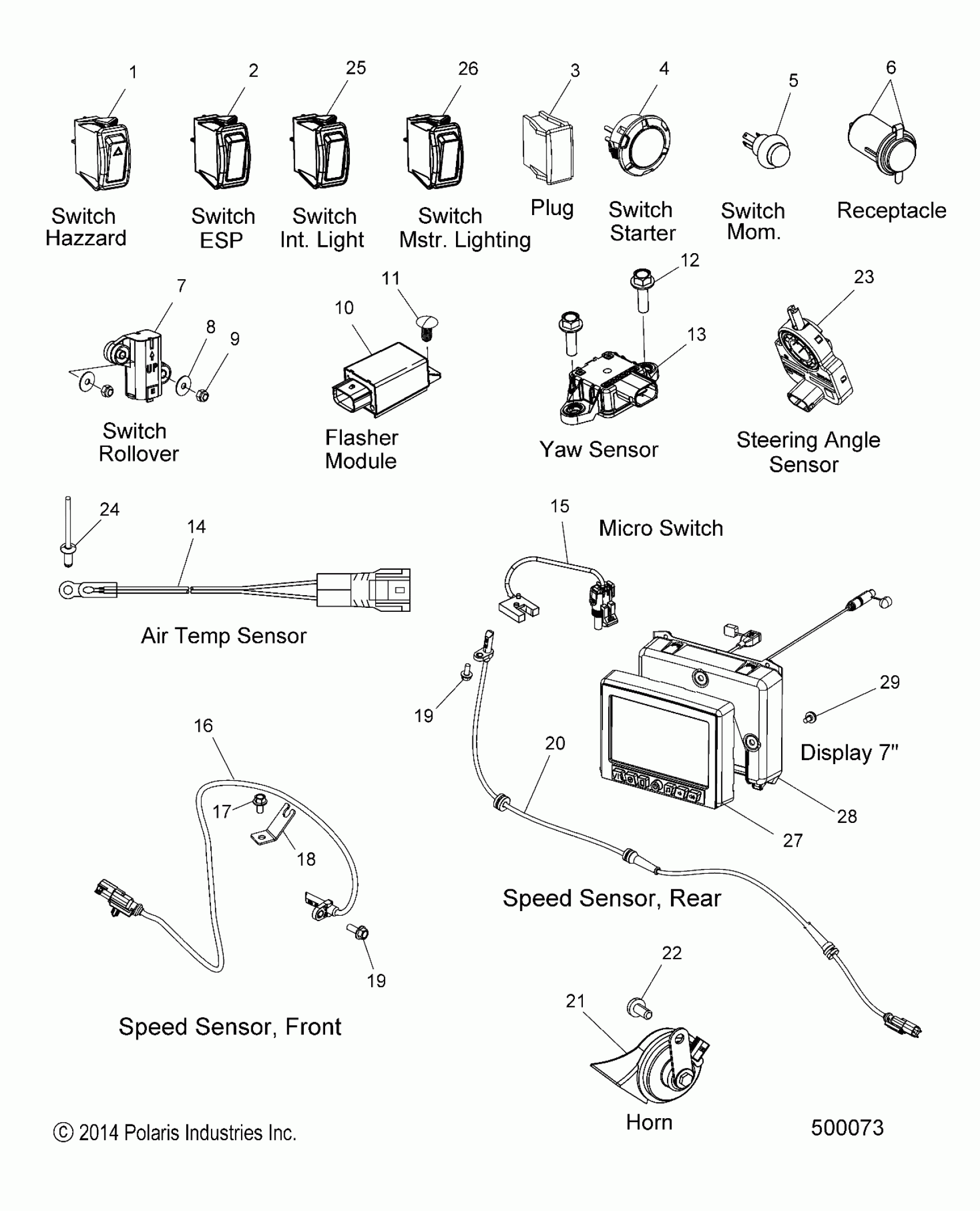

Polaris SLINGSHOT ALL OPTIONS (R04) - T18AAPF/AARF/AASF ELECTRICAL, COMPONENTS - T18AAPF/AARF/AASF ALL OPTIONS (500073) Diagram

Description

Price

SWITCH, HAZARD, SPST [USA ONLY]

4011318

$79.99

SWITCH, HAZARD, SPST, BACKLIT [CND ONLY]

4014189

Unavailable

SWITCH, ESP, SPST, NO, MOM

4013887

$71.41

SWITCH, ESP, SPST, NO, MOM, BACKLIT [CND ONLY]

4015132

$116.17

PLUG, SWITCH, K1

4011402

Unavailable

SWITCH, START, MOM, NO, SEALED

4014154

$111.33

SWITCH, MOM, NO, SEALED, BLK

4014155

$80.94

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

WASHER, RETAINING

5260771

$5.56

Switch, Rollover

4011026

$72.84

WASHER

7556477

Unavailable

NUT

7547126

$3.48

MODULE, FLASHER, LED

4013886

$144.99

CLIP-FIR TREE,DART,6.35MM

7670090

$1.19

Screw

7517770

$2.38

SENSOR, YAW

4013496

$449.99

SENSOR, AIR TEMP

2410443

$68.79

SWITCH, MICRO, SEALED, NC, 1A [CLUTCH AND BRAKE]

4015361

Unavailable

SENSOR, SPEED, WHEEL, FRONT

4013495

$169.99

SCREW

7517704

$7.84

BRKT. MOUNT, WSS KNUCKLE

5256962

$29.99

Screw

7517770

$2.38

Screw

7517770

$2.38

SENSOR, SPEED, WHEEL, REAR

4014078

Unavailable

HORN, TRUMPET, LOW TONE

4011489

$64.75

SCREW

7518914

$3.17

SENSOR, ANGLE, STEERING

4013497

$319.99

RIVET, AL

7662131

$0.40

SWITCH, INTERIOR LIGHT, SPDT [AARF MODELS ONLY]

4015097

$111.33

SWITCH, MASTER LIGHTING [CND ONLY]

4014227

Unavailable

DISPLAY-SS, 7", V1 [SLR]

3280731

$3,099.99

DISPLAY-SS, 7",V1 NO NAV [SL]

3280737

$3,299.99

MOUNT-RIDE COMMAND

5454519

Unavailable

SCREW-HXBH-M6

7520201

$10.32
