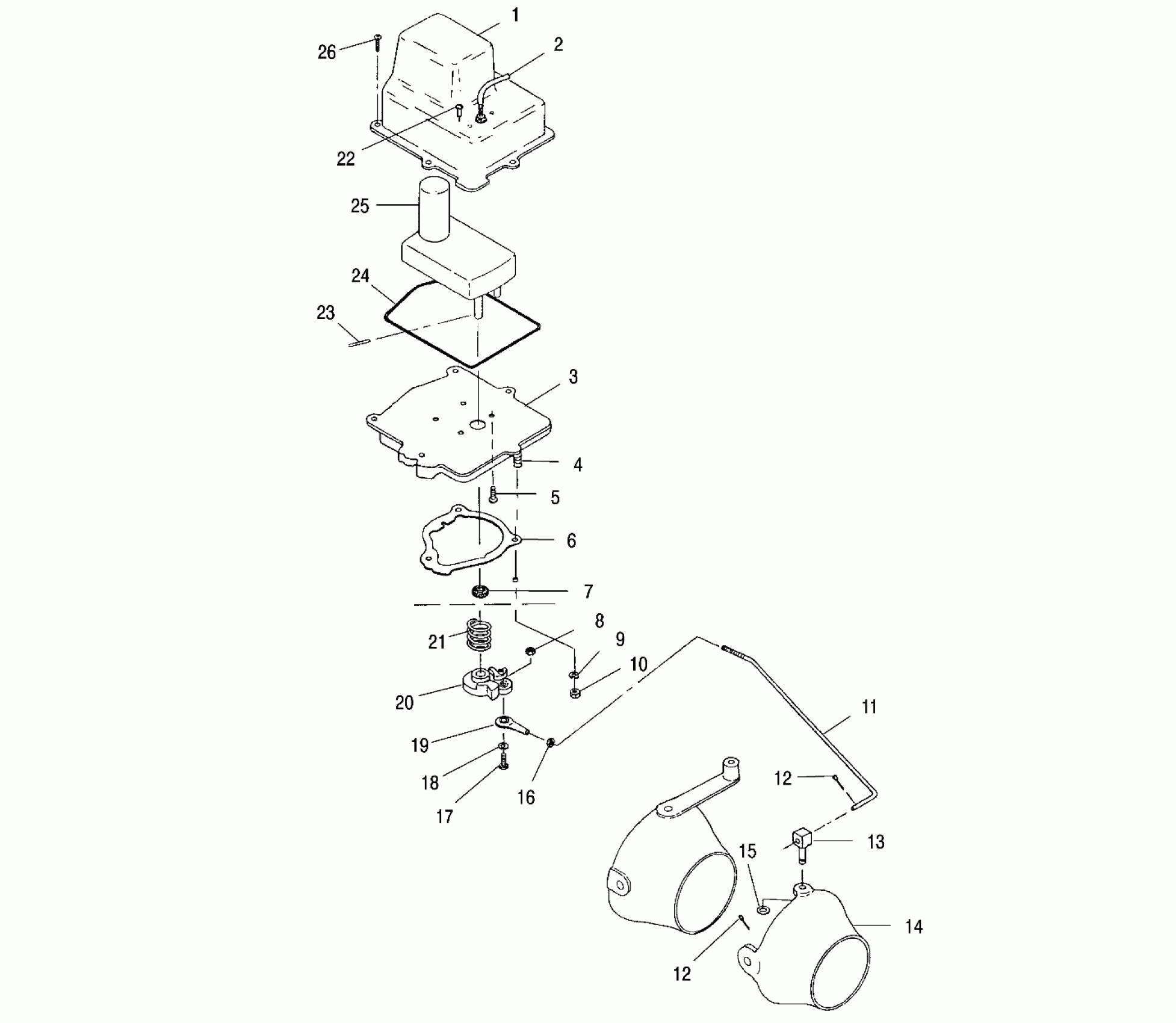

Polaris SLH - W014697D TRIM PACKAGE - W014697D (4964806480B002) Diagram

#

Description

Price

1

COVER,TRIM MTR.

5431551

Unavailable

2

HARNESS,TRIM,2HOLE GROMMET

2460635

Unavailable

3

BASE, MOTOR Substituted by 5630798

5630543

Unavailable

4

STUD,S.S.(10)

5131050

Unavailable

5

SCREW(10)

7511872

Unavailable

6

GASKET, MOTOR BASE

5810818

Unavailable

7

SEAL, OIL

3610042

Unavailable

8

NUT, HEX, S.S.(10)

7541931

$4.79

9

WASHER, FLAT, S.S.(10)

7555839

Unavailable

10

NUT,NYLOK,S.S.(10)

7542133

Unavailable

11

LINKAGE,THREADED

5224670

Unavailable

12

PIN, COTTER(10)

7661010

$1.49

12

PIN, COTTER(10)

7661010

$1.49

13

SWIVEL,ROD END

5131463

Unavailable

14

Nozzle, Trim (See Propulsion Pg. B1, Ref. 39)

-------

Unavailable

15

WASHER(10)

7555866

Unavailable

16

NUT (10)

1860102

Unavailable

17

BOLT, S.S.(10)

7512041

Unavailable

18

WASHER, FLAT, S.S.(10)

7555837

Unavailable

19

ROD END, S.S.

7060154

Unavailable

20

LEVER, TRIM

5431550

Unavailable

21

SPRING,TRIM,HVY.

7041469

Unavailable

22

SCREW(10)

7511873

Unavailable

23

PIN, DRIVE Substituted by 7661418

7661417

Unavailable

24

O RING,MTR.COVER

5410756

Unavailable

25

GEAR ASM, MOTOR

4170004

Unavailable

26

SCREW(10)

7512052

Unavailable
