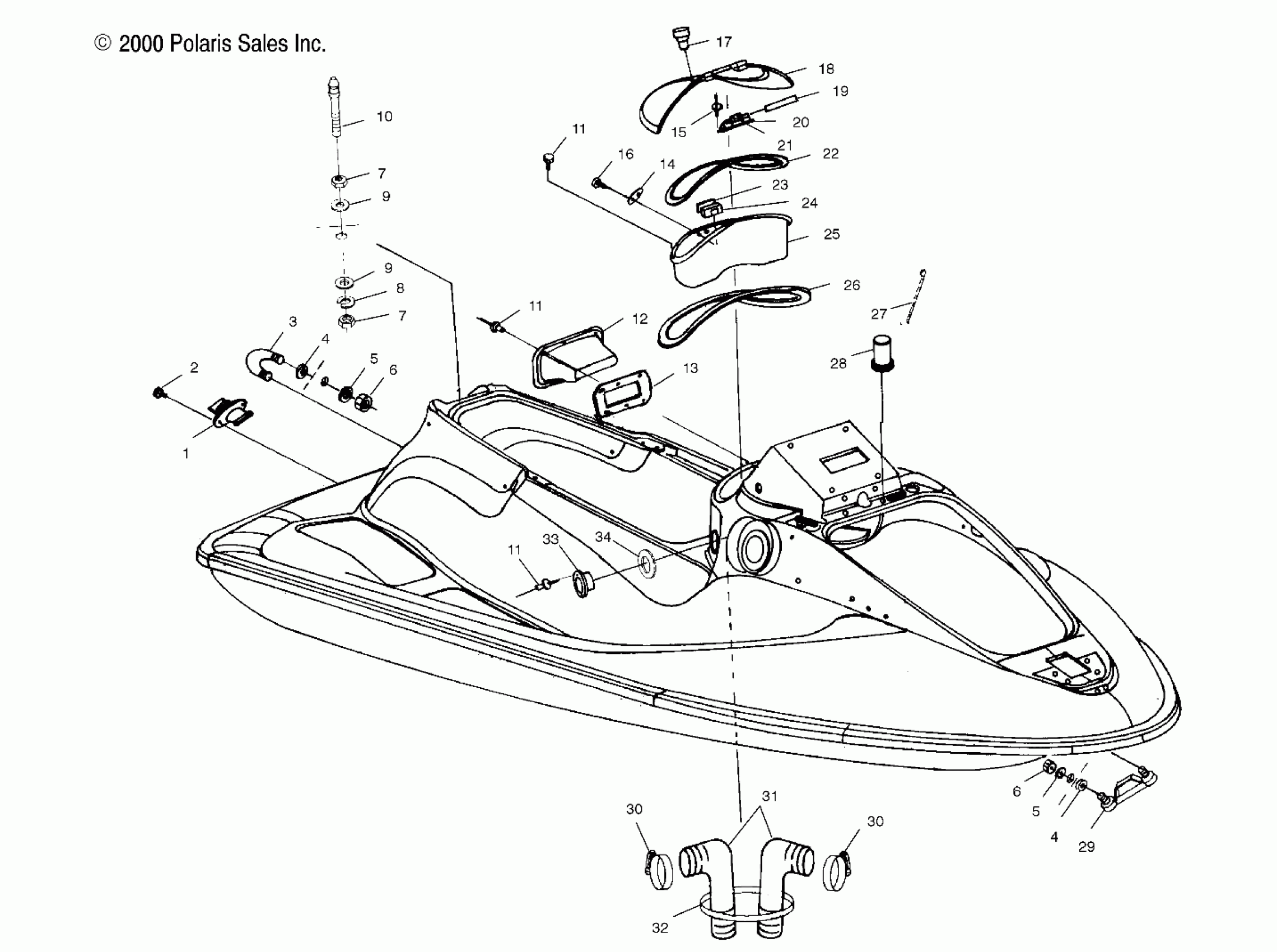

Polaris SLH - W014697D HULL and BODY - W014697D (4964806480A003) Diagram

#

Description
Price

1

PLUG ASM,BILGE

1060125

Unavailable

2

SCREW, S.S.(10)

7511882

$1.59

3

U-BOLT ASM.

1060126

$7.94

4

WASHER,RUBBER(10)

7555870

$0.40

4

WASHER,RUBBER(10)

7555870

$0.40

5

WASHER, FLAT, S.S.(10)

7555839

Unavailable

5

WASHER, FLAT, S.S.(10)

7555839

Unavailable

6

NUT,NYLOK,S.S.(10)

7542133

Unavailable

6

NUT,NYLOK,S.S.(10)

7542133

Unavailable

7

NUT, HEX, S.S.,(10)

7542454

Unavailable

7

NUT, HEX, S.S.,(10)

7542454

Unavailable

8

WASHER, LOCK, S.S.(10)

7552607

$1.39

9

WASHER, FLAT(10)

7555846

$5.56

9

WASHER, FLAT(10)

7555846

$5.56

10

PLUNGER,LATCH

5020753

Unavailable

11

RIVET-POP (50)

7661042

$1.11

11

RIVET-POP (50)

7661042

$1.11

11

RIVET-POP (50)

7661042

$1.11

12

BASE,RECEPTICAL,SEAT,SL2

5432718

Unavailable

13

GASKET,RECEPT.SEATBASE

5811555

Unavailable

14

PLATE,HOOK,CONSOLE

5211865

Unavailable

15

RIVET-POP (10)

7661039

$0.95

16

SCREW,SS.

7516609

Unavailable

17

ASM-LATCH,MACHINED

2632417

Unavailable

18

LID-CONSOLE,PWC,P307/P311

5432660-1119

$145.59

19

PIN,HINGE,(CONSOLE)

5333612

Unavailable

20

HINGE,CONSOLE(SL2)

5432645

Unavailable

21

SPRING,TORS.CONSOLE,SS

7041660

Unavailable

22

SEAL,CONSOLE

5521430

Unavailable

23

GASKET,HOOK,CONSOLE

5811552

$1.43

24

HOOK,LATCH

5432661

$4.13

25

BOX,GLOVE,BRT.WHI.

5432829-133

Unavailable

26

SEAL,GLOVE BOX

5811565

Unavailable

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

28

GROMMET-DECK,WIRE HARNESS

5411664

Unavailable

29

STRAP, BOW

2670150

$49.21

30

CLAMP, HOSE(10)

7080439

$9.52

30

CLAMP, HOSE(10)

7080439

$9.52

31

DUCT-INLET,AIR,21 1/2 INCH [Item NotAvailable]

5434186

$10.41

32

STRAP, CABLE(10)

7080598

Unavailable

33

FLANGE-INLET,AIR

5433220

$9.84

34

GASKET-INLET,AIR

5411545

$1.75
