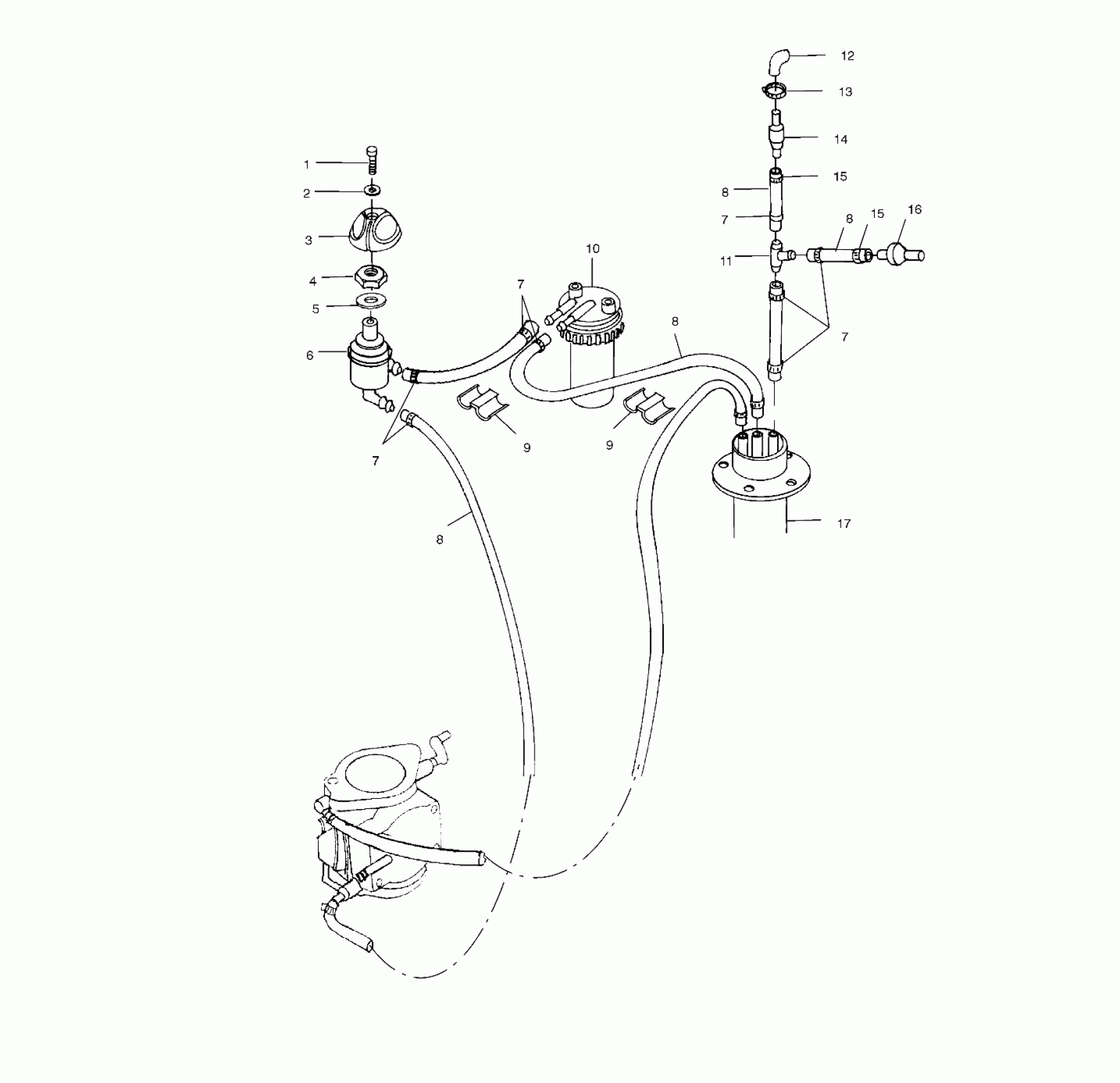

Polaris SLH - W014697D FUEL SYSTEM - W014697D (4964806480A008) Diagram

#

Description
Price

1

SCREW, S.S.(10)

7516302

$3.99

2

WASHER, FLAT, S.S.(10)

7555840

$3.35

3

KNOB,FUELVALVE,BLK.

5432836-070

Unavailable

4

NUT, FUEL VALVE

5431451

Unavailable

5

WSHR,ANTI-ROTATE,FUELON/OFF

5244545

Unavailable

6

VALVE,ON/OFF

7052159

$43.99

7

CLAMP, HOSE, S.S.(10)

7080476

$6.39

7

CLAMP, HOSE, S.S.(10)

7080476

$6.39

7

CLAMP, HOSE, S.S.(10)

7080476

$6.39

7

CLAMP, HOSE, S.S.(10)

7080476

$6.39

8

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

8

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

8

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

8

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

9

T-CLIP(10)

7080482

$6.39

9

T-CLIP(10)

7080482

$6.39

10

Separator, Fuel/Water (See Fuel/Water Separator Pg. C5, Ref. 5)

-------

Unavailable

11

FITTING,TEE

7052111

Unavailable

12

Grommet, Vent

5410682

Unavailable

13

STRAP, PANDUIT,4 IN.(10)

7080483

Unavailable

14

VALVE,CHECK,RELIEF

7051015

Unavailable

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

VALVE,VACUUM CHECK

7052118

Unavailable

17

Asm., Sender/Pick-Up, Fuel (See Fuel Tank Pg. A7, Ref. 3)

-------

Unavailable
