Description

Price

1

KIT-CRANKCASE 700 PWC 1202018 (Incl. 2-4,20-22)

2201804

Unavailable

2

STUD,CYL.FLANGE,152MM,SPS

5131677

Unavailable

3

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

4

Fitting

7052145

$9.59

5

CLAMP-STATOR WIRES

5243231

Unavailable

6

SCREW,(10)

7517431

$5.59

7

Bushing

3569805

Unavailable

8

PLUG-TIMING HOLE,3/4X16,NYLON

5433130

Unavailable

9

BUSHING,PLASTIC

3574214

Unavailable

10

Spring

7041457

Unavailable

11

Bushing

3569806

Unavailable

12

Screw

7517676

Unavailable

13

BOLT(10)

7516806

Unavailable

14

COVER,FLYWHEEL ASM. (Incl. 11)

1201923

Unavailable

15

GASKET,FLYWHEEL COVER

5811550

Unavailable

16

BOLT(10)

7516723

Unavailable

17

Pin, Dowel

7663002

$4.79

18

O-Ring

5411564

$4.03

19

FLYWHEEL,HOUSING (Incl. 7,17)

1201938

Unavailable

20

BOLT, S.S,(10)

7516725

Unavailable

21

PLUG Substituted by 7052311

7051529

$15.99

22

BOLT, S.S

7516913

Unavailable

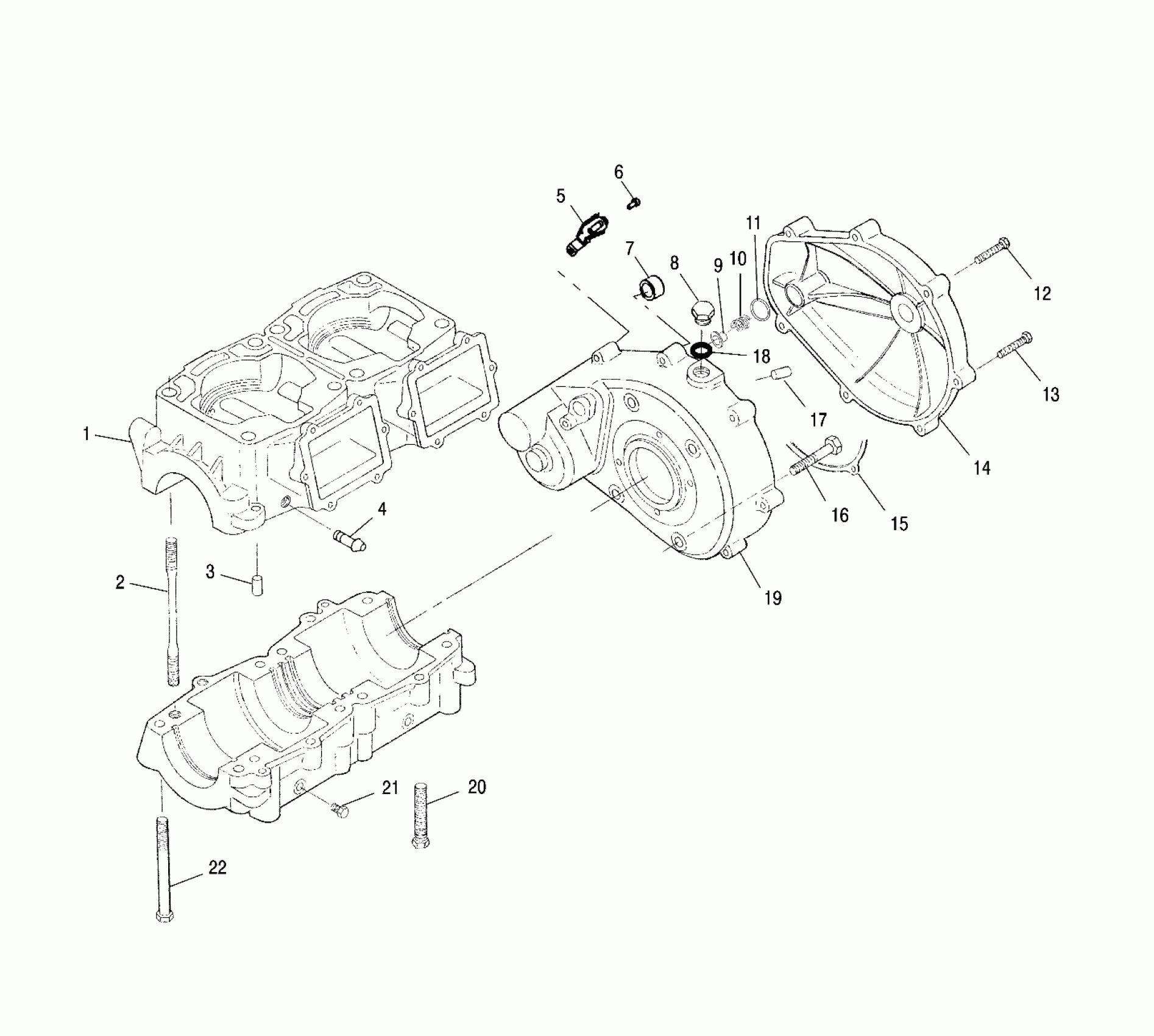

Polaris SLH - W014697D CRANKCASE - W014697D (4964806480B012) Diagram

KIT-CRANKCASE 700 PWC 1202018 (Incl. 2-4,20-22)

STUD,CYL.FLANGE,152MM,SPS

PIN-DOWEL,M8 X 16 SS

Fitting

CLAMP-STATOR WIRES

SCREW,(10)

Bushing

PLUG-TIMING HOLE,3/4X16,NYLON

BUSHING,PLASTIC

Spring

Bushing

Screw

BOLT(10)

COVER,FLYWHEEL ASM. (Incl. 11)

GASKET,FLYWHEEL COVER

BOLT(10)

Pin, Dowel

O-Ring

FLYWHEEL,HOUSING (Incl. 7,17)

BOLT, S.S,(10)

PLUG Substituted by 7052311

BOLT, S.S
