Description

Price

-

ASM-CARB,700 PWC,KEIHIN

1253368

Unavailable

1

SCREW, FUELPUMP

3050136

Unavailable

2

KIT,FUELPUMP BODY(KEIHIN)

2200687

Unavailable

3

KIT,GASKET(FUELPUMP)

2200686

Unavailable

4

GASKET,CARB.,UPPER

5830062

Unavailable

5

KIT,CHECKVALVE,MID-RANGE,KHN

2200685

Unavailable

6

SCREEN,FUELSTRAINER

3050144

Unavailable

7

PUMP,ACCEL.KIT

2201309

Unavailable

8

KIT,NDLE VLVE,97DOM,NOT SL 1050

2200733

Unavailable

9

JET-MAIN,120 KEIHIN

3050117

Unavailable

10

JET-MAIN,148 KEIHIN

3050189

Unavailable

11

JET-PILOT,58 KEIHIN

3050125

Unavailable

12

JET-PILOT, 42 KEIHIN

3050119

Unavailable

13

SCREW,JET BLOCK COVER

3050135

Unavailable

14

COVER,JET BLOCK

3050139

Unavailable

15

KIT,DIAPHRAGM-JET BLOCK

2200730

Unavailable

16

Screw, Jet Block

3050137

Unavailable

17

BLOCK-JET,KEIHIN

3050282

Unavailable

18

O-Ring, Jet Block

3050147

Unavailable

19

Collar

3050138

Unavailable

20

O-RING,(VALVE SEAT)

3050148

Unavailable

21

KIT,CHECKVALVE,MAIN(KEIHIN)

2200688

Unavailable

22

KIT,IDLESCREW,(KEIHIN)

2200689

Unavailable

23

Cap, Limiter

3050140

Unavailable

24

GASKET,CARB.

5830043

Unavailable

25

KIT,IDLESTOP SCREW

2200731

Unavailable

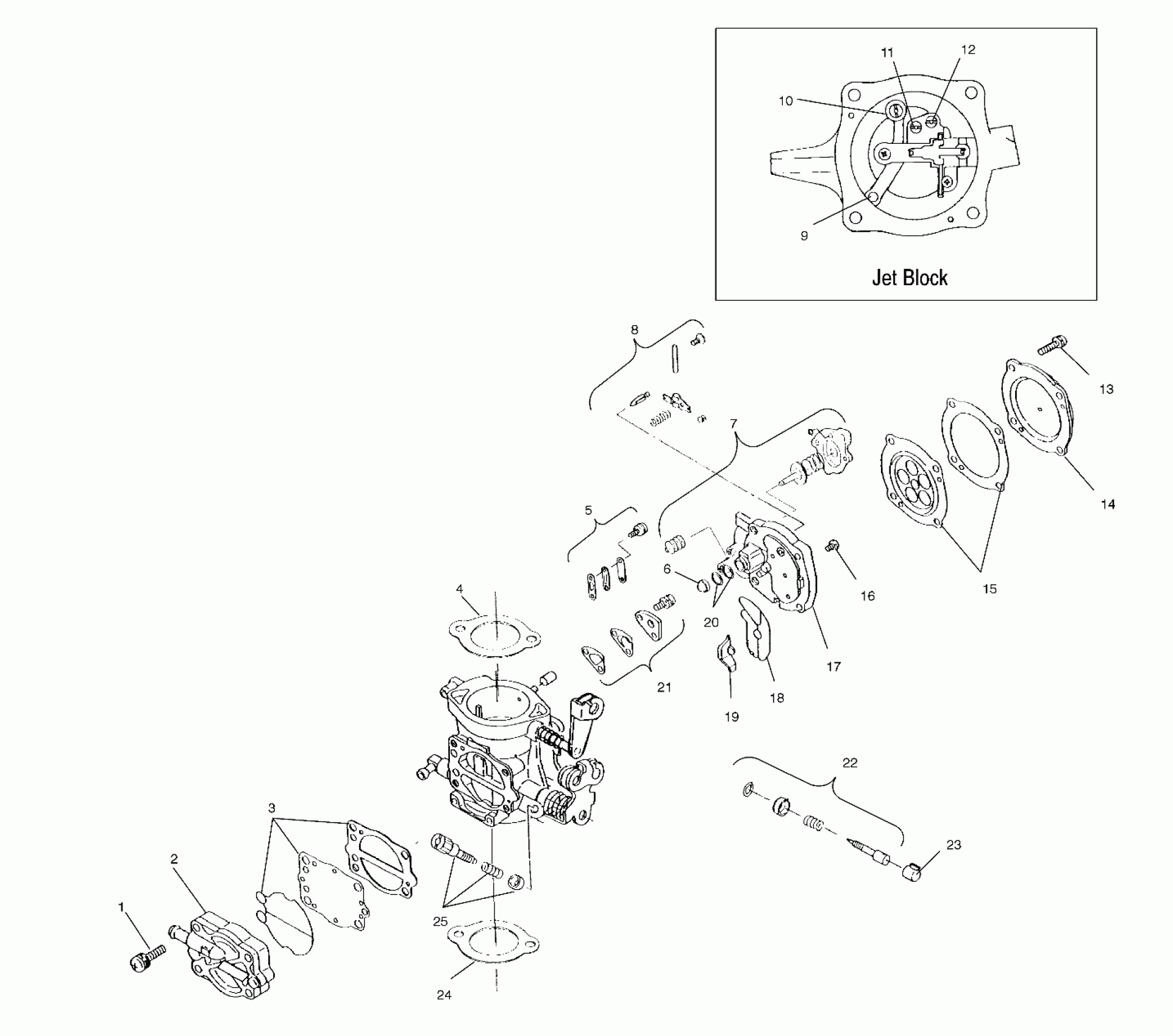

Polaris SLH - W014697D CARBURETOR - W014697D (4964806480C001) Diagram

ASM-CARB,700 PWC,KEIHIN

SCREW, FUELPUMP

KIT,FUELPUMP BODY(KEIHIN)

KIT,GASKET(FUELPUMP)

GASKET,CARB.,UPPER

KIT,CHECKVALVE,MID-RANGE,KHN

SCREEN,FUELSTRAINER

PUMP,ACCEL.KIT

KIT,NDLE VLVE,97DOM,NOT SL 1050

JET-MAIN,120 KEIHIN

JET-MAIN,148 KEIHIN

JET-PILOT,58 KEIHIN

JET-PILOT, 42 KEIHIN

SCREW,JET BLOCK COVER

COVER,JET BLOCK

KIT,DIAPHRAGM-JET BLOCK

Screw, Jet Block

BLOCK-JET,KEIHIN

O-Ring, Jet Block

Collar

O-RING,(VALVE SEAT)

KIT,CHECKVALVE,MAIN(KEIHIN)

KIT,IDLESCREW,(KEIHIN)

Cap, Limiter

GASKET,CARB.

KIT,IDLESTOP SCREW
