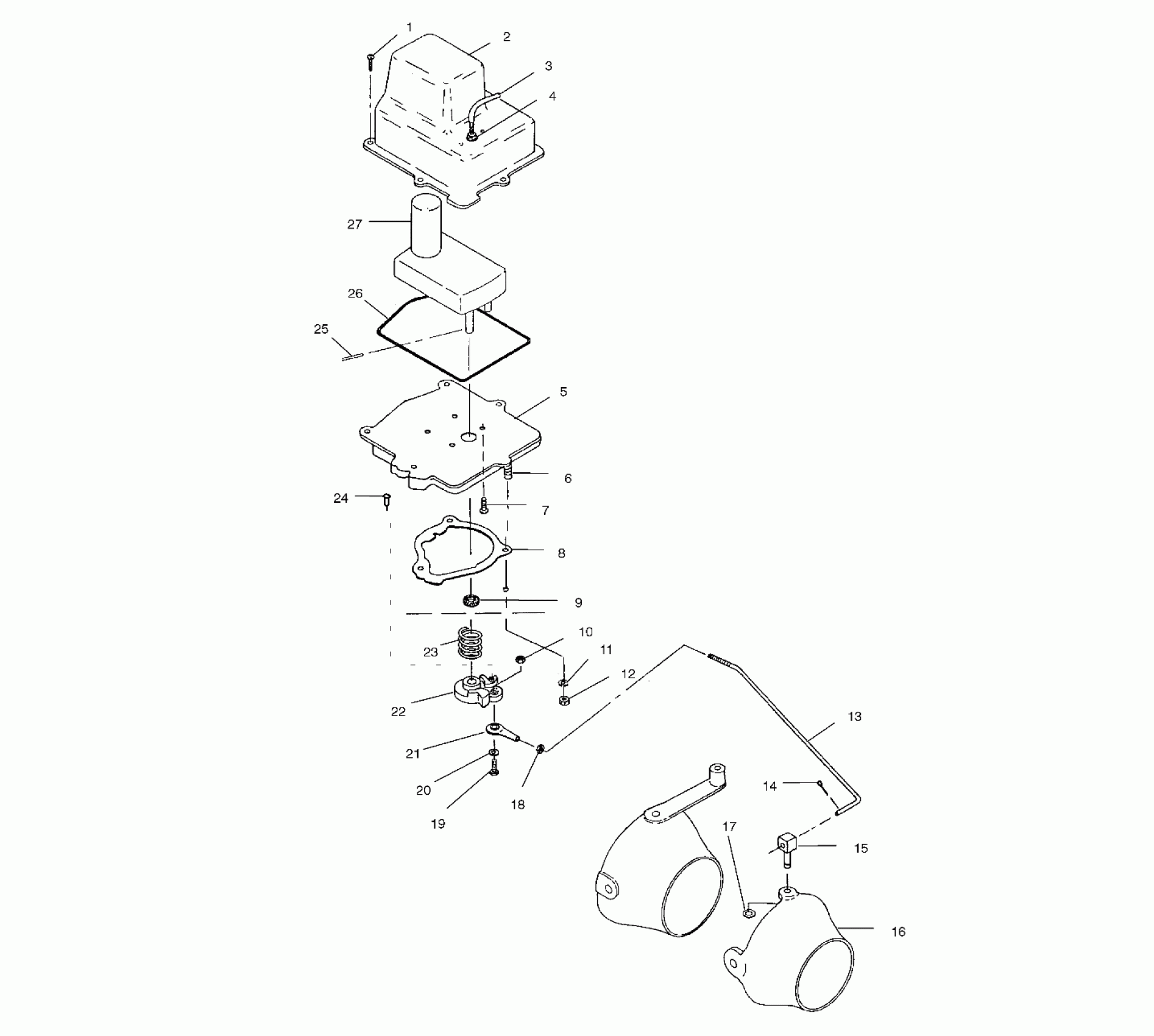

Polaris SLH - W004673D TRIM PACKAGE - W004673D (4955755575B005) Diagram

#

Description

Price

1

SCREW(10)

7512052

Unavailable

2

COVER,TRIM MTR.

5431551

Unavailable

3

HARNESS,TRIM,2HOLE GROMMET

2460635

Unavailable

4

GROMMET,TRIM INDIC.

5410778

Unavailable

5

BASE, MOTOR Substituted by 5630798

5630543

Unavailable

6

STUD,S.S.(10)

5131050

Unavailable

7

SCREW(10)

7511872

Unavailable

8

GASKET, MOTOR BASE

5810818

Unavailable

9

SEAL, OIL

3610042

Unavailable

10

NUT, HEX, S.S.(10)

7541931

$4.79

11

WASHER, FLAT, S.S.(10)

7555839

Unavailable

12

NUT,NYLOK,S.S.(10)

7542133

Unavailable

13

LINKAGE,THREADED

5224670

Unavailable

14

PIN, COTTER(10)

7661010

$1.49

15

SWIVEL,ROD END

5131463

Unavailable

16

Nozzle, Trim (See Propulsion Pg. B4, Ref. 39)

-------

Unavailable

17

WASHER(10)

7555866

Unavailable

18

NUT (10)

1860102

Unavailable

19

BOLT, S.S.(10)

7512041

Unavailable

20

WASHER, FLAT, S.S.(10)

7555837

Unavailable

21

ROD END, S.S.

7060154

Unavailable

22

LEVER, TRIM

5431550

Unavailable

23

SPRING,TRIM,HVY.

7041469

Unavailable

24

SCREW(10)

7511873

Unavailable

25

PIN, DRIVE Substituted by 7661418

7661417

Unavailable

26

O RING,MTR.COVER

5410756

Unavailable

27

GEAR ASM, MOTOR

4170004

Unavailable
