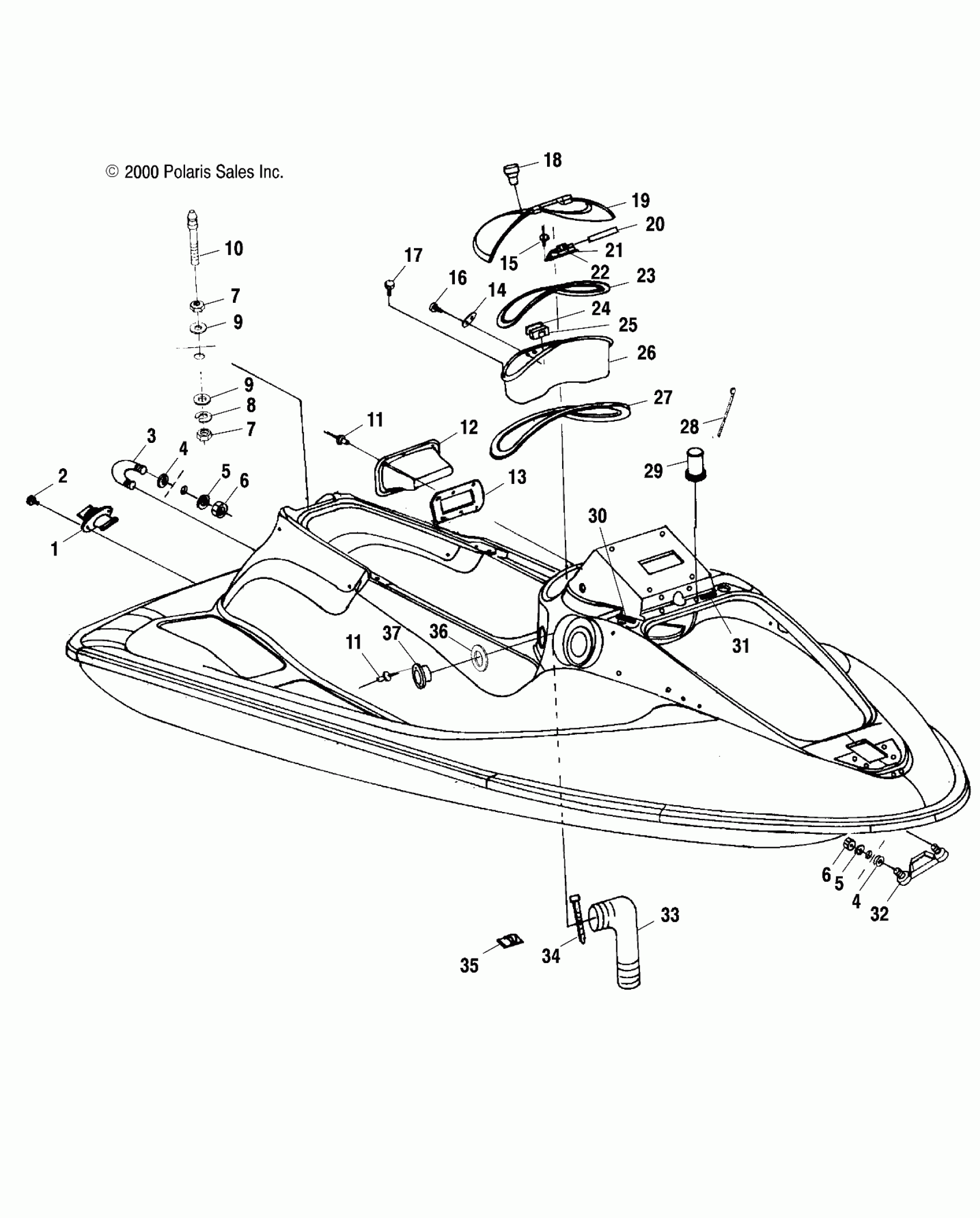

Polaris SLH - W004673D HULL and BODY - W004673D (4955755575A005) Diagram

#

Description
Price

1

PLUG ASM,BILGE

1060125

Unavailable

2

SCREW, S.S.(10)

7511882

$1.59

3

U-BOLT ASM.

1060126

$7.94

4

WASHER,RUBBER(10)

7555870

$0.40

4

WASHER,RUBBER(10)

7555870

$0.40

5

WASHER, FLAT, S.S.(10)

7555839

Unavailable

5

WASHER, FLAT, S.S.(10)

7555839

Unavailable

6

NUT,NYLOK,S.S.(10)

7542133

Unavailable

6

NUT,NYLOK,S.S.(10)

7542133

Unavailable

7

NUT, HEX, S.S.,(10)

7542454

Unavailable

7

NUT, HEX, S.S.,(10)

7542454

Unavailable

8

WASHER, LOCK, S.S.(10)

7552607

$1.39

9

WASHER, FLAT(10)

7555846

$5.56

9

WASHER, FLAT(10)

7555846

$5.56

10

PLUNGER,LATCH

5020753

Unavailable

11

RIVET-POP (50)

7661042

$1.11

11

RIVET-POP (50)

7661042

$1.11

12

BASE,RECEPTICAL,SEAT,SL2

5432718

Unavailable

13

GASKET,RECEPT.SEATBASE

5811555

Unavailable

14

PLATE,HOOK,CONSOLE

5211865

Unavailable

15

RIVET-POP (10)

7661039

$0.95

16

SCREW,SS.

7516609

Unavailable

17

RIVET-POP (50)

7661042

$1.11

18

LATCH ASM,CONSOLE

2653011

$28.73

19

LID-CONSOLE,PWC,PEARLSTONE

5432660-1095

$123.99

20

PIN,HINGE,(CONSOLE)

5333612

Unavailable

21

HINGE,CONSOLE(SL2)

5432645

Unavailable

22

SPRING,TORS.CONSOLE,SS

7041660

Unavailable

23

SEAL,CONSOLE

5521430

Unavailable

24

GASKET,HOOK,CONSOLE

5811552

$1.43

25

HOOK,LATCH

5432661

$4.13

26

BOX,GLOVE,BRT.WHI.

5432829-133

Unavailable

27

SEAL,GLOVE BOX

5811565

Unavailable

28

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

29

GROMMET-DECK,WIRE HARNESS

5411664

Unavailable

30

DECAL,FUEL,OFF/ON,(SL2)

7077479

$6.59

31

DECAL,RECOM.OIL,PREMIUM

7077480

Unavailable

32

STRAP, BOW

2670150

$49.21

33

DUCT,INLET,AIR,23 INCH

5433496

Unavailable

34

STRAP, CABLE(10)

7080598

Unavailable

35

ANCHOR, CABLE TIE(10)

7080464

Unavailable

36

GASKET-INLET,AIR

5411545

$1.75

37

FLANGE-INLET,AIR

5433220

$9.84
