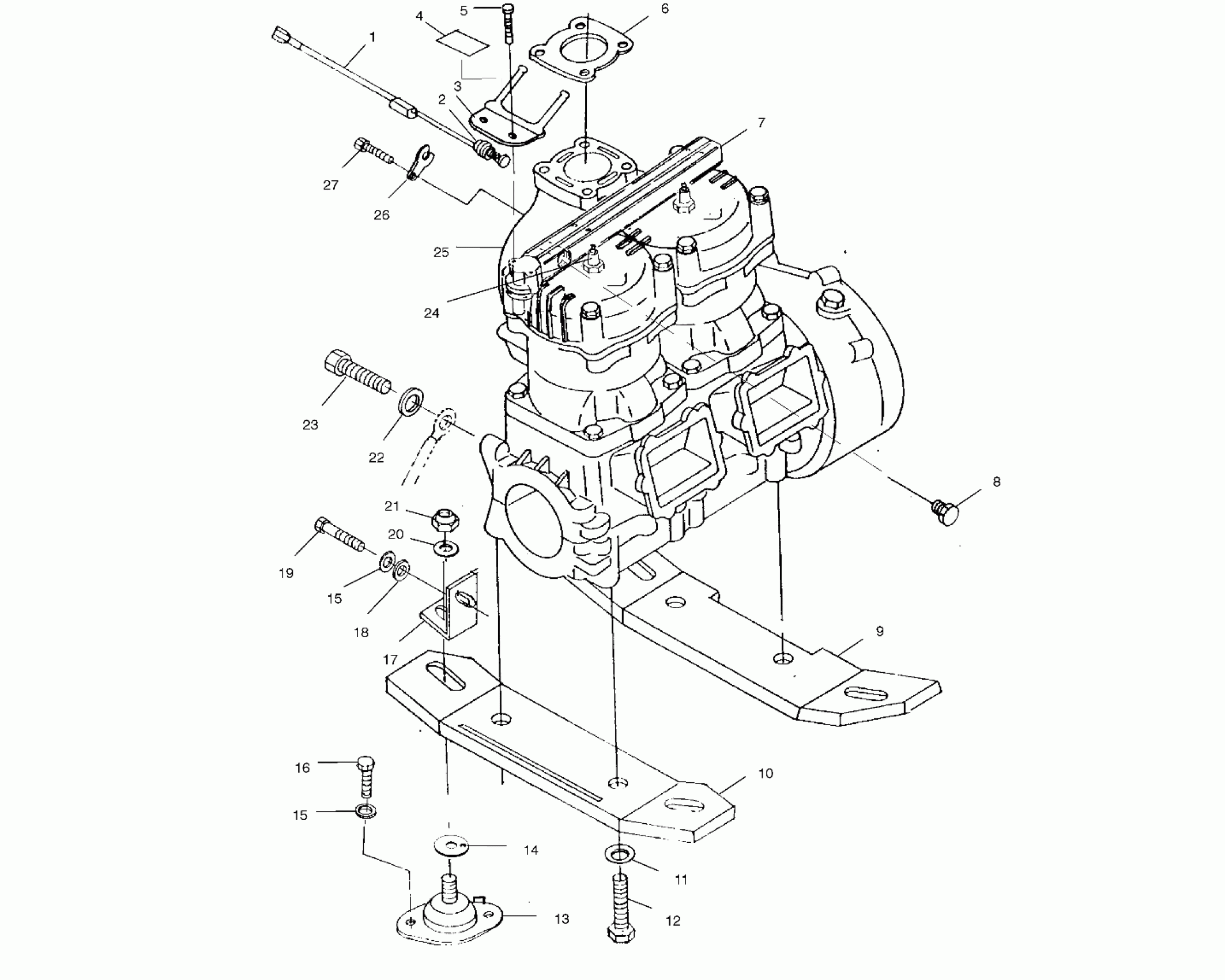

Polaris SLH - W004673D ENGINE MOUNTING - W004673D (4955755575B002) Diagram

#

Description
Price

1

SWITCH ASM,TEMP(NO GROMMET)

2410075

Unavailable

2

O-RING(10)

5410818

$0.79

3

GROUND,SPARKPLUG,2CYL

5242488

Unavailable

4

DECAL,SPARKPLUG REC.

7077026

$2.94

5

SCREW,SHOULDER,S.S.(10)

7515149

Unavailable

6

GASKET,EXH.PIPE

5830051

Unavailable

7

Decal - Warning (See Cylinder and Manifold Pg. C2, Ref. 1)

----

Unavailable

8

PLUG,PIPE(10)

7051527

$6.59

9

PLATE,F.MOUNT Substituted by 5631128

5630585

$102.38

10

PLATE,R.MOUNT Substituted by 5631129

5630584

Unavailable

11

WASHER,LOCK,S.S.

7552609

$1.75

12

SCREW, SS.

7517330

Unavailable

13

MOUNT-ENGINE,PWC Substituted by 3021208

3021103

$73.81

14

SHIM,ENG.MT.(PWC)

5211727

Unavailable

15

WASHER, LOCK, S.S.(10)

7552610

Unavailable

15

WASHER, LOCK, S.S.(10)

7552610

Unavailable

16

SCREW(10)

7517627

Unavailable

17

BRKT,R.MUFFLER

1060142

$53.17

18

WASHER, FLAT, S.S.,(10)

7555835

$0.69

19

BOLT, S.S.(10)

7515357

Unavailable

20

WASHER, FLAT, S.S.(10)

7555848

Unavailable

21

NUT, NYLOK, S.S.(10) Substituted by 7547001

7542725

$3.59

22

WASHER,LOCK,SS.

7556055

Unavailable

23

BOLT,SS.

7517497

$3.97

24

Plug, Spark (See Cylinder and Manifold Pg. C2, Ref. 3)

----

Unavailable

25

KIT,S.B.UPDATE,(700H TWIN) Substituted by 2201621 The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization

2201211

Unavailable

26

CLIP,RETAIN,TEMP.SW.

5240876

$4.99

27

BOLT,(1)

7516603

$10.32
