CRANKSHAFT and PISTON - W004673I (4955755575C004)

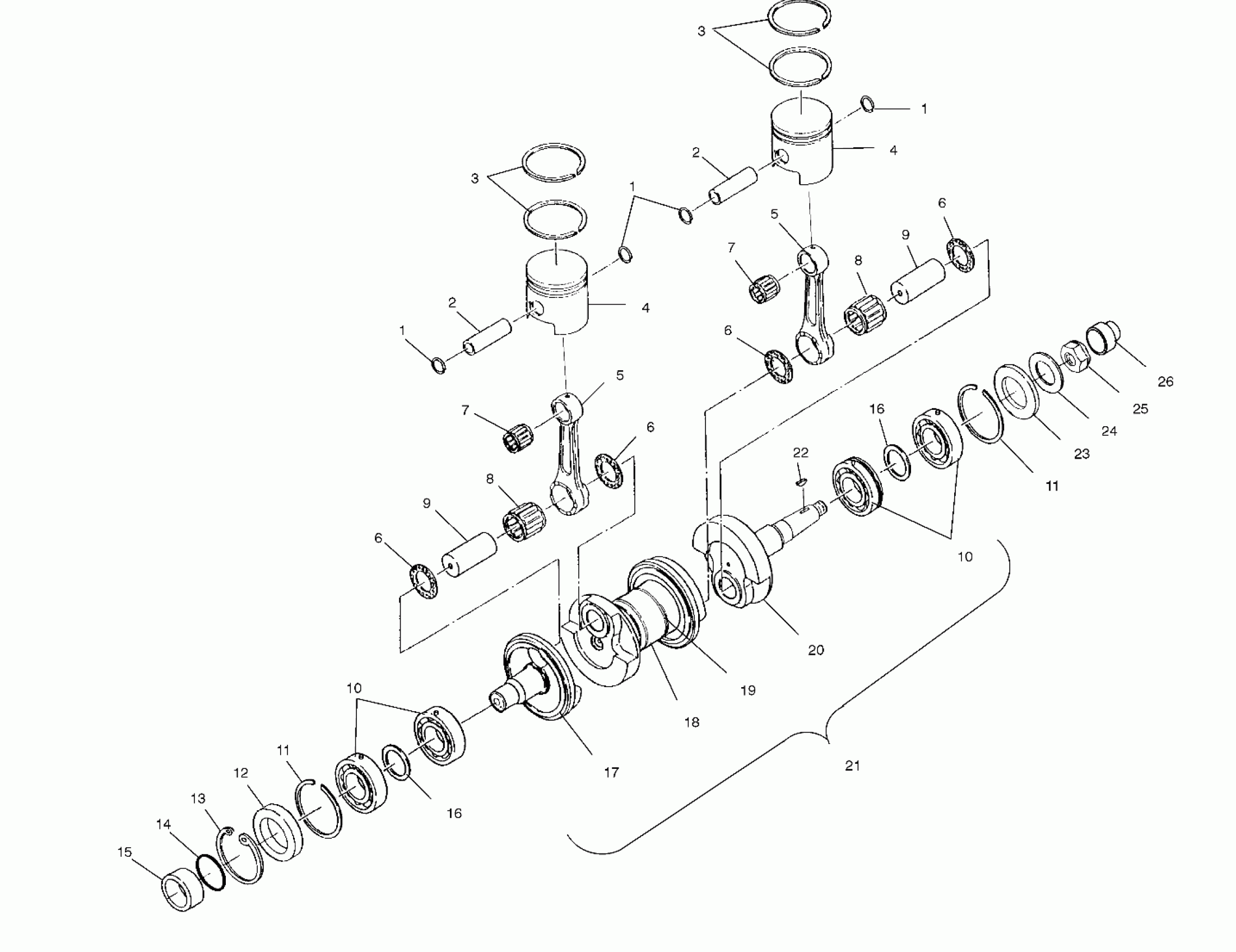

Polaris SLH - W004673D CRANKSHAFT and PISTON - W004673I (4955755575C004) Diagram
#
1
CIRCLIP,PISTON,20MM.,(10)
3022950
Unavailable
1
CIRCLIP,PISTON,20MM.,(10)
3022950
Unavailable
1
CIRCLIP,PISTON,20MM.,(10)
3022950
Unavailable
2
PIN,PISTON
3022953
Unavailable
2
PIN,PISTON
3022953
Unavailable
3
KIT,PISTONRING,81MM.25 O/S,CKS (.25mm O/S)
2200917
Unavailable
3
KIT,PISTONRING,81MM,STD,CKS (Std.)(2 Rings) NOTE: If the Number stamped on the head of Piston reads ELKO 2194a use 2200918, 2200917, or 2200916
2200918
Unavailable
3
KIT,PISTONRING,81MM.50 O/S,CKS (.50 mm O/S)
2200916
Unavailable
3
KIT,PISTONRINGS,.25 O/S,PWC (.25mm O/S)
2200903
Unavailable
3
KIT,PISTONRINGS,.50 O/S,PWC (.50 mm O/S)
2200904
Unavailable
3
KIT,PISTONRINGS,STD,PWC (Std.)(2 Rings) NOTE: If the Number stamped on the head of Piston reads ELKO 2102/6 use 2200902, 220903, or 220904
2200902
Unavailable
3
KIT,PISTONRING,81MM.25 O/S,CKS (.25mm O/S)
2200917
Unavailable
3
KIT,PISTONRING,81MM,STD,CKS (Std.)(2 Rings) NOTE: If the Number stamped on the head of Piston reads ELKO 2194a use 2200918, 2200917, or 2200916
2200918
Unavailable
3
KIT,PISTONRING,81MM.50 O/S,CKS (.50 mm O/S)
2200916
Unavailable
3
KIT,PISTONRINGS,.25 O/S,PWC (.25mm O/S)
2200903
Unavailable
3
KIT,PISTONRINGS,.50 O/S,PWC (.50 mm O/S)
2200904
Unavailable
3
KIT,PISTONRINGS,STD,PWC (Std.)(2 Rings) NOTE: If the Number stamped on the head of Piston reads ELKO 2102/6 use 2200902, 220903, or 220904
2200902
Unavailable
4
KIT,PISTON ASM,.25 O/S,PWC Substituted by 2200920 (.25 mm O/S) (Incl.1,2,3)
2200884
Unavailable
4
KIT,PISTON ASM,.50 O/S,PWC Substituted by 2200919 (.50 mm O/S) (Incl.1,2,3)
2200885
Unavailable
4
KIT,PISTON ASM,STD,PWC Substituted by 2200921 (Std.)(Incl.1,2,3)
2200883
Unavailable
4
KIT,PISTON ASM,.25 O/S,PWC Substituted by 2200920 (.25 mm O/S) (Incl.1,2,3)
2200884
Unavailable
4
KIT,PISTON ASM,.50 O/S,PWC Substituted by 2200919 (.50 mm O/S) (Incl.1,2,3)
2200885
Unavailable
4
KIT,PISTON ASM,STD,PWC Substituted by 2200921 (Std.)(Incl.1,2,3)
2200883
Unavailable
5
KIT,CONN.ROD,MAPE (Incl. 6,8,9)
2201022
$305.56
5
KIT,CONN.ROD,MAPE (Incl. 6,8,9)
2201022
$305.56
6
Washer, Thrust (See Ref. 5)
-------
Unavailable
6
Washer, Thrust (See Ref. 5)
-------
Unavailable
6
Washer, Thrust (See Ref. 5)
-------
Unavailable
6
Washer, Thrust (See Ref. 5)
-------
Unavailable
7
BEARING,CONNECT.ROD
3584001
Unavailable
7
BEARING,CONNECT.ROD
3584001
Unavailable
8
Bearing, Connecting Rod (See Ref. 5)
-------
Unavailable
8
Bearing, Connecting Rod (See Ref. 5)
-------
Unavailable
9
Pin, Crankshaft (See Ref. 5)
-------
Unavailable
9
Pin, Crankshaft (See Ref. 5)
-------
Unavailable
10
BEARING,DEEP GROOVE Substituted by 3585503
3585501
Unavailable
10
BEARING,DEEP GROOVE Substituted by 3585503
3585501
Unavailable
11
RING,RETAINING,(10) (72 mm)
7710441
Unavailable
11
RING,RETAINING,(10) (72 mm)
7710441
Unavailable
12
SEAL,TYPE BA SL
5411524
Unavailable
13
RING,RETAINING(10) (72 mm)
7710435
Unavailable
14
O RING,(10)
5410613
$1.99
15
COLLAR,CRANKSHAFT
5131195
Unavailable
16
BUSHING(10)
7555905
$3.99
16
BUSHING(10)
7555905
$3.99
17
CRANKWEB,PTO,BIGBORE
5131083
Unavailable
18
CRANKWEB,CTR,BIGBORE
5131084
Unavailable
19
Labyrinth
5131086
Unavailable
20
CRANKWEB,MAG.
5131085
Unavailable
21
KIT,CRANKSHAFT,2CYL,PWC,MAPE (Incl. 10,16-20,22)
2201243
Unavailable
22
KEY,WOODRUFF(10)
7721117
$24.99
23
Seal
3610044
$24.27
24
Washer (See Magneto Pg. C6, Ref. 7)
-------
Unavailable
25
Nut (See Magneto Pg. C6, Ref. 8)
-------
Unavailable
26
COUPLER,PUMP DRIVE
5432576
Unavailable
