Partiron

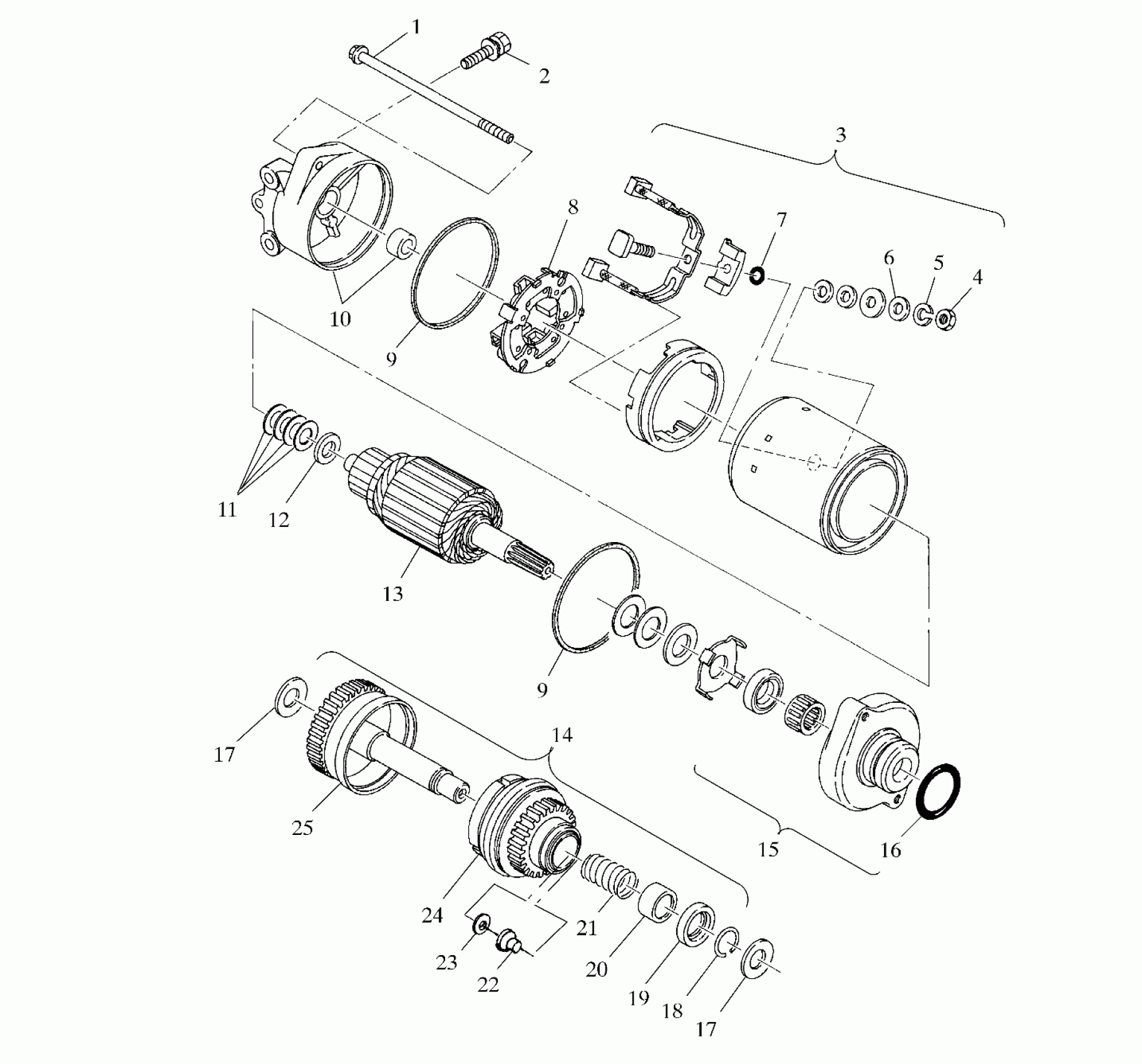

Polaris SLH - B994673 STARTING MOTOR - I994673 (4951335133c007) Diagram

#

Description
Price

-

STARTER (Incl. 1,3-16)

4060118

Unavailable

1

Bolt, Through

3240113

$8.73

2

BOLT, FLANGE

3240062

Unavailable

3

BRUSH, COMPL. (Incl. 8-4)

3240115

Unavailable

4

NUT(10)

3240116

Unavailable

5

WASHER, SPRING(10)

3240117

Unavailable

6

WASHER(10)

3240119

Unavailable

7

O-RING

3084408

Unavailable

8

Spring, Brush

3240111

$1.38

9

RING, RUBBER

3084405

Unavailable

9

RING, RUBBER

3084405

Unavailable

10

BRACKET ASM,REAR

3240207

$53.17

11

WASHER, THRUST(10)

3240118

Unavailable

12

Washer, Thrust

3240112

$0.32

13

ARMATURE ASM.

3240205

$139.99

14

BENDIX (See Footnote) (Incl. 17-23) (Mounted in Crankcase)

4060119

$292.59

15

BRACKET ASM,FRONT

3240206

Unavailable

16

O-Ring

3240114

$6.99

17

WASHER, GEARSHAFT Substituted by 7555908

3083737

$3.17

17

WASHER, GEARSHAFT Substituted by 7555908

3083737

$3.17

18

SNAP RING

3240126

$0.32

19

Stopper

3240125

Unavailable

20

Cover

3240123

$3.81

21

Spring

7041457

Unavailable

22

BUSHING,PLASTIC

3574214

$5.00

23

WASHER(10)

7555908

$3.17

24

GEAR ASM. Substituted by 3240120

3240122

$292.59

25

GEAR ASM. Substituted by 4060119 (Incl. 17-24)

3240120

$292.59
