Description

Price

-

KIT,GASKET,TOP END (Incl. 6-8,18,23)

2200673

Unavailable

-

KIT,GASKET SET,COMP. (Incl. 6-8,11,18,23)

2200680

Unavailable

1

Decal, Warning

7075383

Unavailable

2

BOLT(10)

7516806

Unavailable

3

SPARKPLUG, BPR-8ES(10)

3070174

Unavailable

4

BOLT(10)

7516722

Unavailable

5

SCREW,(10) Substituted by 7517352

7517251

Unavailable

6

O-RING(10)

5410917

$1.49

7

O-RING

5410932

$20.22

8

O-Ring

5410931

Unavailable

9

NUT

7547021

$6.99

10

CYLINDER,81MM,PWC,HP.

3021018

Unavailable

11

GASKET,CARB.

5830043

Unavailable

12

BOLT(10)

7516814

Unavailable

13

RETAINER,SS.

7080654

$18.32

14

BOLT(10)

7516807

Unavailable

15

MANIFOLD,INTAKE

5630529

Unavailable

16

STUFFER,REED,75.5MM(34MMCARB)

5432681

$3.81

17

REEDVALVE ASM. Substituted by 1201743

1201689

Unavailable

18

GASKET,CYL.BASE

5830123

Unavailable

19

HEAD,CYL,81MM,PWC

3022050

Unavailable

20

RING,HEAD,81MM-SS

5241944

Unavailable

21

BRKT,HEAD,TWIN,FIRE RED

5241768-093

Unavailable

22

COVER,HEAD,RED,BIG BORE

5630527-093

Unavailable

23

GASKET,WATER MANIF.

5830061

Unavailable

24

MANIFOLD,OUT,FIRE RED Substituted by 1202061-093

5630826-093

Unavailable

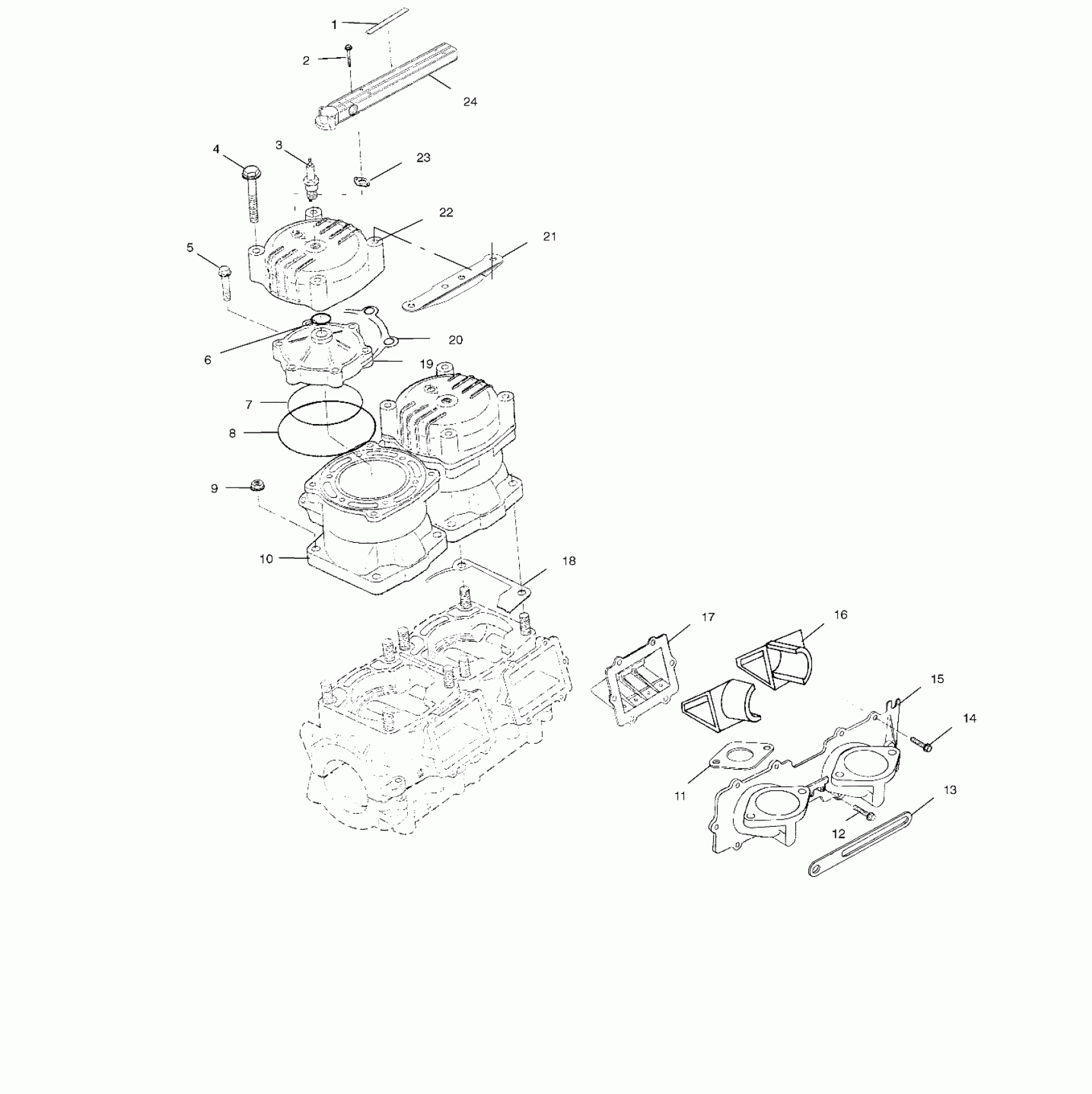

Polaris SLH - B994673 CYLINDER and MANIFOLD - B994673 (4951335133c002) Diagram

KIT,GASKET,TOP END (Incl. 6-8,18,23)

KIT,GASKET SET,COMP. (Incl. 6-8,11,18,23)

Decal, Warning

BOLT(10)

SPARKPLUG, BPR-8ES(10)

BOLT(10)

SCREW,(10) Substituted by 7517352

O-RING(10)

O-RING

O-Ring

NUT

CYLINDER,81MM,PWC,HP.

GASKET,CARB.

BOLT(10)

RETAINER,SS.

BOLT(10)

MANIFOLD,INTAKE

STUFFER,REED,75.5MM(34MMCARB)

REEDVALVE ASM. Substituted by 1201743

GASKET,CYL.BASE

HEAD,CYL,81MM,PWC

RING,HEAD,81MM-SS

BRKT,HEAD,TWIN,FIRE RED

COVER,HEAD,RED,BIG BORE

GASKET,WATER MANIF.

MANIFOLD,OUT,FIRE RED Substituted by 1202061-093
