Description

Price

1

KIT,CRANKCASE ASM(PWC TWINUPDT.) (Incl. 2-4,16-18)

2201210

Unavailable

2

STUD,CYL.FLANGE,152MM,SPS

5131677

Unavailable

3

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

4

Fitting

7052145

$9.59

5

Bushing

3569805

Unavailable

6

PLUG-TIMING HOLE,3/4X16,NYLON

5433130

Unavailable

7

BUSHING,PLASTIC

3574214

Unavailable

8

Spring

7041457

Unavailable

9

Bushing

3569806

Unavailable

10

BOLT(10)

7516806

Unavailable

11

COVER-IGNITION HOUSING Substituted by 1201923 (Incl. 9)

1201827

Unavailable

12

Pin, Dowel

7663002

$4.79

13

GASKET,FLYWHEEL COVER

5811550

Unavailable

14

BOLT(10)

7516723

Unavailable

15

STARTER HOUSING Substituted by 2201613 (Incl. 5,12)

1201828

Unavailable

16

SCREW Substituted by 7516720

7517628

Unavailable

17

PLUG Substituted by 7052311

7051529

$15.99

18

BOLT, S.S

7516913

Unavailable

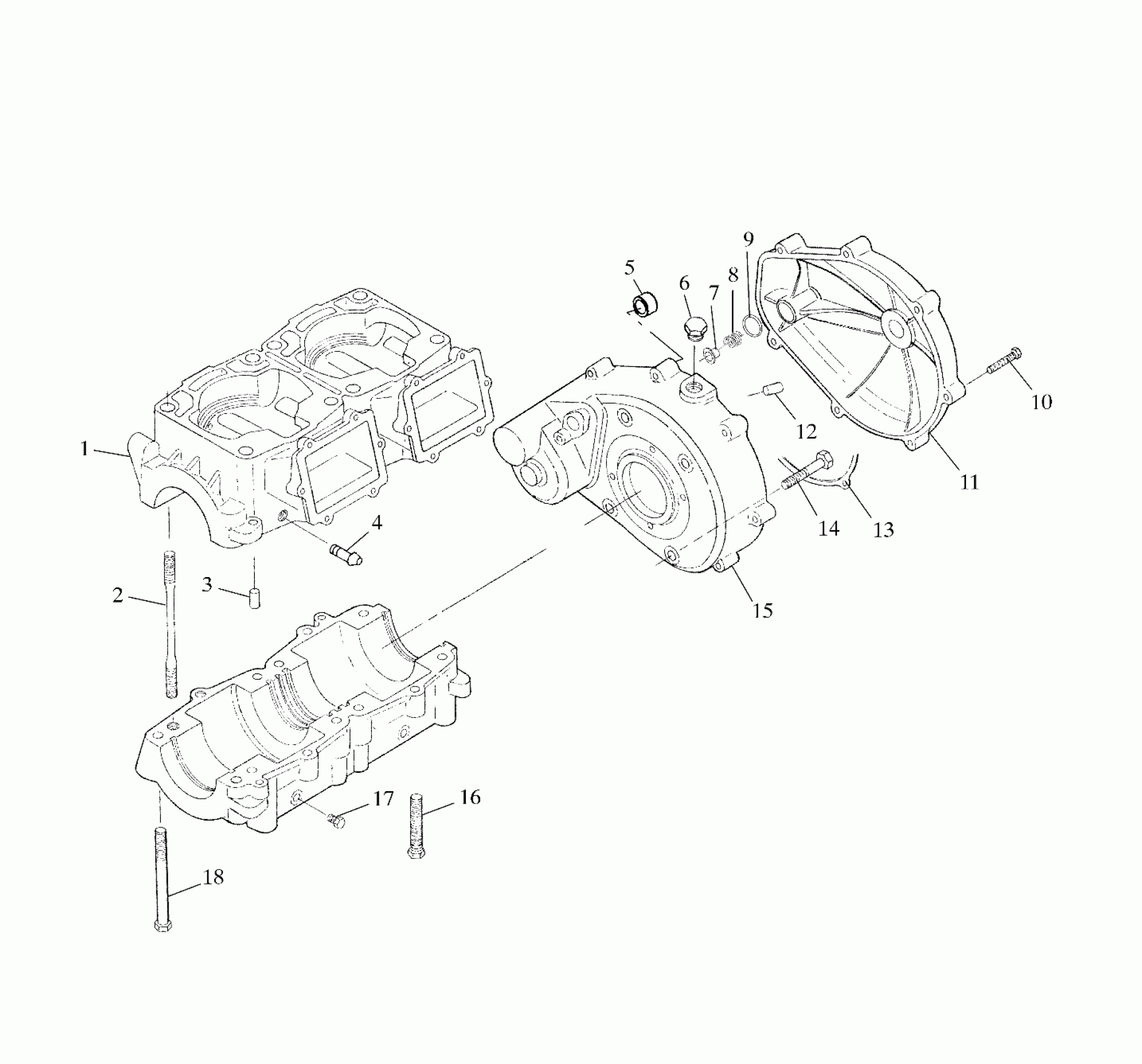

Polaris SLH - B994673 CRANKCASE - B994673 (4951335133c001) Diagram

KIT,CRANKCASE ASM(PWC TWINUPDT.) (Incl. 2-4,16-18)

STUD,CYL.FLANGE,152MM,SPS

PIN-DOWEL,M8 X 16 SS

Fitting

Bushing

PLUG-TIMING HOLE,3/4X16,NYLON

BUSHING,PLASTIC

Spring

Bushing

BOLT(10)

COVER-IGNITION HOUSING Substituted by 1201923 (Incl. 9)

Pin, Dowel

GASKET,FLYWHEEL COVER

BOLT(10)

STARTER HOUSING Substituted by 2201613 (Incl. 5,12)

SCREW Substituted by 7516720

PLUG Substituted by 7052311

BOLT, S.S
